2 Ton Indoor & Outdoor Reach Truck for Sale in UAE | Al Shirawi Enterprises

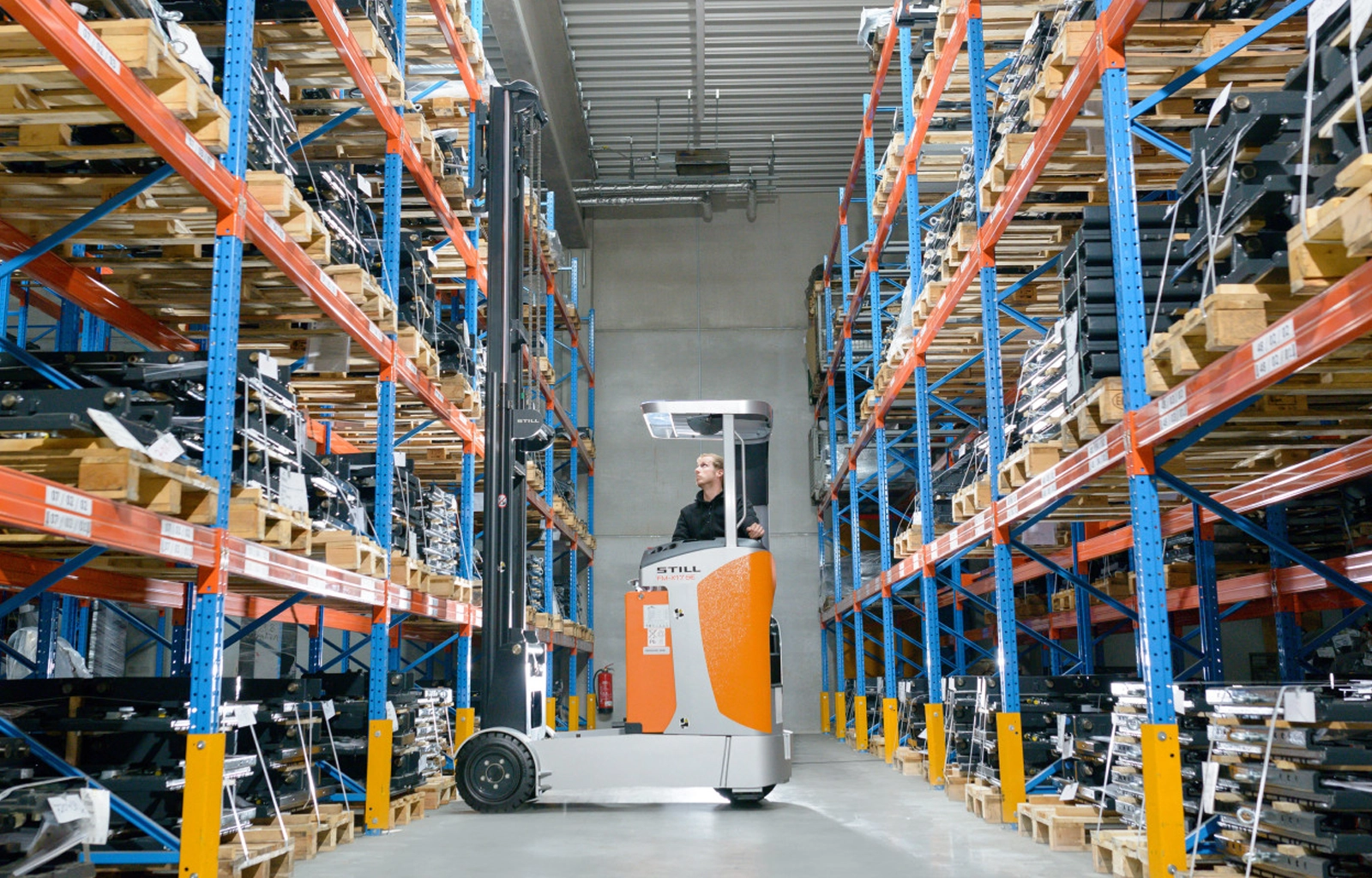

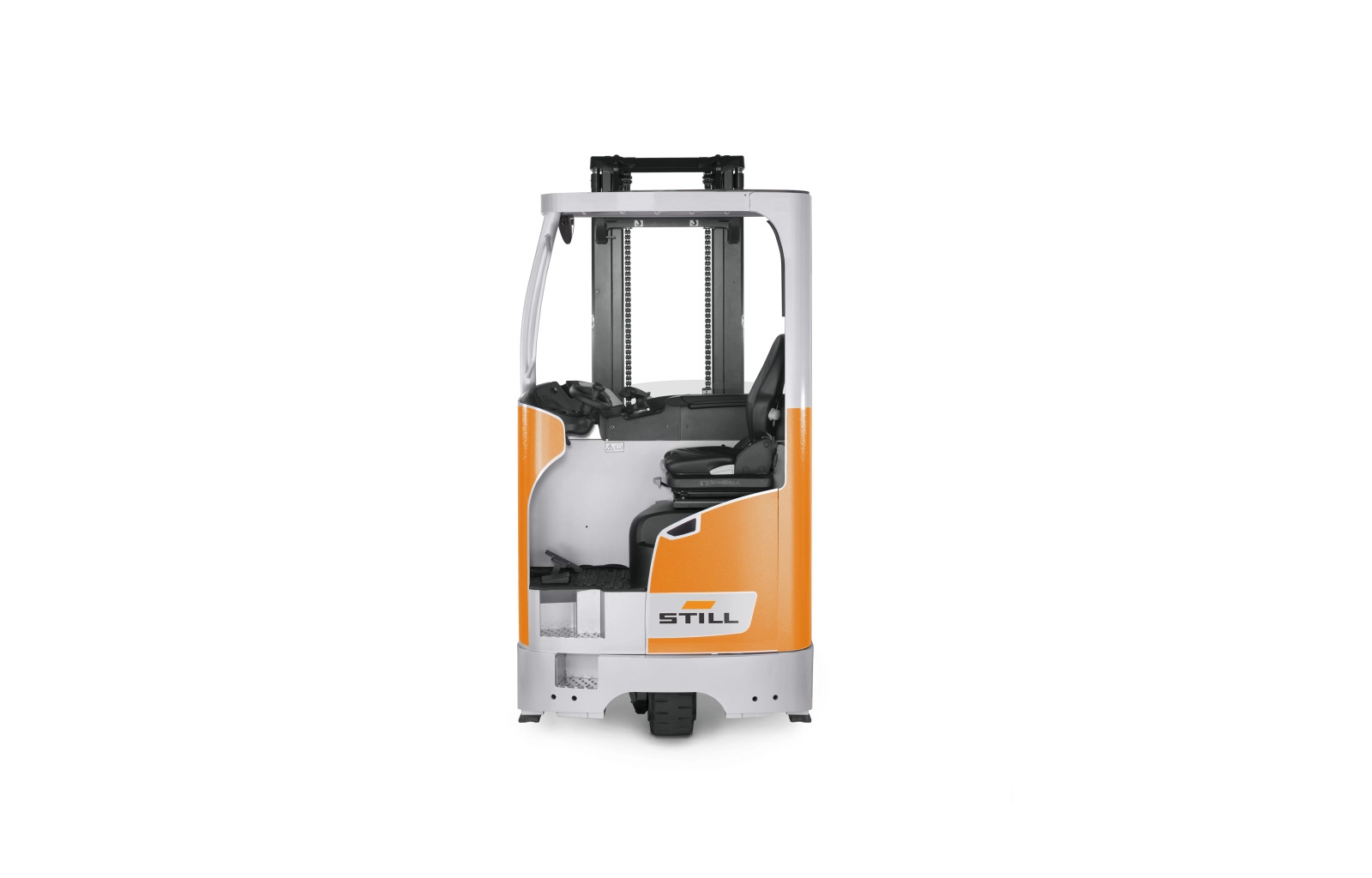

The STILL FM-X SE is a seated electric reach truck with superelastic tyres. It’s built to move between your warehouse racking and outdoor yards, loading areas or uneven surfaces. STILL positions it for flexible indoor and outdoor use. Its cushioned drive wheel and superelastic tyres absorb impacts on uneven ground, and its high ground clearance and strong traction keep it working on bumpy surfaces.
It lifts up to 2,000 kg to heights of up to 8 metres. Travel speeds reach 14 km/h and lifting speeds reach 0.50 m/s, so goods move quickly. STILL’s sideshift mast keeps hydraulic lines off the fork carriage, giving operators a clear view of the load. The reclining seat makes looking up at high racks more comfortable.
Al Shirawi Enterprises supplies genuine STILL reach trucks across the UAE, backed by sales and after-sales support.
| Model | Max. Capacity | Max. Lift Height | Travel Speed | Battery Voltage |
|---|---|---|---|---|
| FM-X 14 SE / Li-Ion | 1,400 kg | 8,000 mm | 14 km/h | 48 V |
| FM-X 17 SE / Li-Ion | 1,700 kg | 8,000 mm | 14 km/h | 48 V |
| FM-X 20 SE / Li-Ion | 2,000 kg | 7,800 mm | 14 km/h | 48 V |
| Specification | FM-X 14 SE | FM-X 17 SE | FM-X 20 SE |
|---|---|---|---|
| Manufacturer | STILL (Germany) | STILL (Germany) | STILL (Germany) |
| Drive / Operator | Electric, seated | Electric, seated | Electric, seated |
| Rated Capacity | 1,400 kg | 1,700 kg | 2,000 kg |
| Load Centre | 600 mm | 600 mm | 600 mm |
| Lift Height (Standard Mast) | 5,000 mm | 5,000 mm | 4,830 mm |
| Max. Lift Height (Optional Masts) | 8,000 mm | 8,000 mm | 7,800 mm |
| Free Lift | 1,640 mm | 1,630 mm | 1,630 mm |
| Travel Speed (Laden/Unladen) | 14 / 14 km/h | 14 / 14 km/h | 14 / 14 km/h |
| Lift Speed (Laden/Unladen) | 0.45 / 0.68 m/s | 0.45 / 0.68 m/s | 0.37 / 0.58 m/s |
| Reach Distance | 573 mm | 573 mm | 651 mm |
| Tyres | Cushion / superelastic | Cushion / superelastic | Cushion / superelastic |
| Drive Tyre Size | Ø457 × 203 mm | Ø457 × 203 mm | Ø457 × 203 mm |
| Load Tyre Size | Ø454 × 160 mm | Ø454 × 160 mm | Ø450 × 195 mm |
| Ground Clearance | 144 mm | 144 mm | 144 mm |
| Overall Length | 2,528 mm | 2,528 mm | 2,600 mm |
| Overall Width | 1,398 mm | 1,398 mm | 1,458 mm |
| Fork Dimensions (s/e/l) | 40 / 100 / 1,150 mm | 40 / 100 / 1,150 mm | 40 / 100 / 1,150 mm |
| Aisle Width (1000×1200 crossways) | 2,806 mm | 2,806 mm | 2,896 mm |
| Turning Radius | 1,691 mm | 1,691 mm | 1,838 mm |
| Gradeability (Laden/Unladen) | 4.5 / 8.2% | 4.5 / 8.2% | 4.5 / 8.2% |
| Service Weight (incl. battery) | 3,290 kg | 3,310 kg | 3,440 kg |
| Battery Voltage | 48 V (Li-Ion available) | 48 V (Li-Ion available) | 48 V (Li-Ion available) |
Electric drive and lift remove the physical strain of manual pallet jacks.
Safe to use in goods lifts and on mezzanine floors.
Charge or top up from any standard socket, with no charging room needed.
Safe manoeuvring in tight spaces with the tiller upright.
Green, yellow and red status shows charge level in real time.
An additional replacement battery maximises availability.
Easy-grip control for left- and right-handed operators.
No exhaust and no battery maintenance, which suits indoor retail spaces.
Superelastic tyres and a cushioned drive wheel handle yards, ramps and uneven surfaces as well as warehouse floors.
Make full use of your racking height with capacities of up to 2,000 kg.
Operators can look up at high rack levels comfortably, without straining their neck.
Operate all functions without changing grip.
Faster, more accurate storage and retrieval at preset rack levels.
Robust Steel Chassis
Built for tough conditions, with secure contour guiding in difficult areas.
Where the FM-X SE Delivers Best Performance
Warehouses with outdoor yards, logistics hubs, building-material stores, manufacturing plants, port-side and free-zone warehouses, and any site where trucks move between racking and outdoor surfaces.
Typical applications include:
| Machine | Best For |
|---|---|
| Reach Truck (FM-X SE) | Higher racking in narrower aisles; the mast reaches forward to place pallets |
| Counterbalance Forklift | General loading, wider aisles and heavy outdoor work |
| Requirement | Why It Matters |
|---|---|
| Top racking level | Sets the mast choice (up to 8,000 mm) |
| Heaviest pallet | Choose 1.4 t, 1.7 t or 2.0 t, with a safety margin |
| Indoor or outdoor use | Superelastic tyres suit yards and uneven surfaces |
| Aisle width | The FM-X SE needs about 2,806–2,896 mm with 1000×1200 pallets |
| Shift pattern | A Li-Ion battery supports opportunity charging |
| Local after-sales support | Protects uptime and gives access to genuine parts |
It’s a seated electric reach truck with superelastic tyres. It handles 1,400–2,000 kg and lifts up to 8 metres.
Yes. Its superelastic tyres, cushioned drive wheel, ground clearance and traction let it work on bumpy and uneven surfaces.
The number shows capacity: 1.4, 1.7 and 2.0 tonnes. The 14 SE and 17 SE lift up to 8,000 mm, and the 20 SE up to 7,800 mm.
Up to 8,000 mm, depending on the model and mast.
About 2,806 mm for the 14 SE and 17 SE, and 2,896 mm for the 20 SE, with 1000 × 1200 mm pallets placed crossways.
The standard FM-X uses polyurethane tyres for indoor warehouse floors and lifts up to 13 m. The FM-X SE uses superelastic tyres for mixed indoor and outdoor work, with lift heights of up to 8 m.
