Compact 1 Ton Electric Pallet Stacker for Sale in UAE | Al Shirawi Enterprises

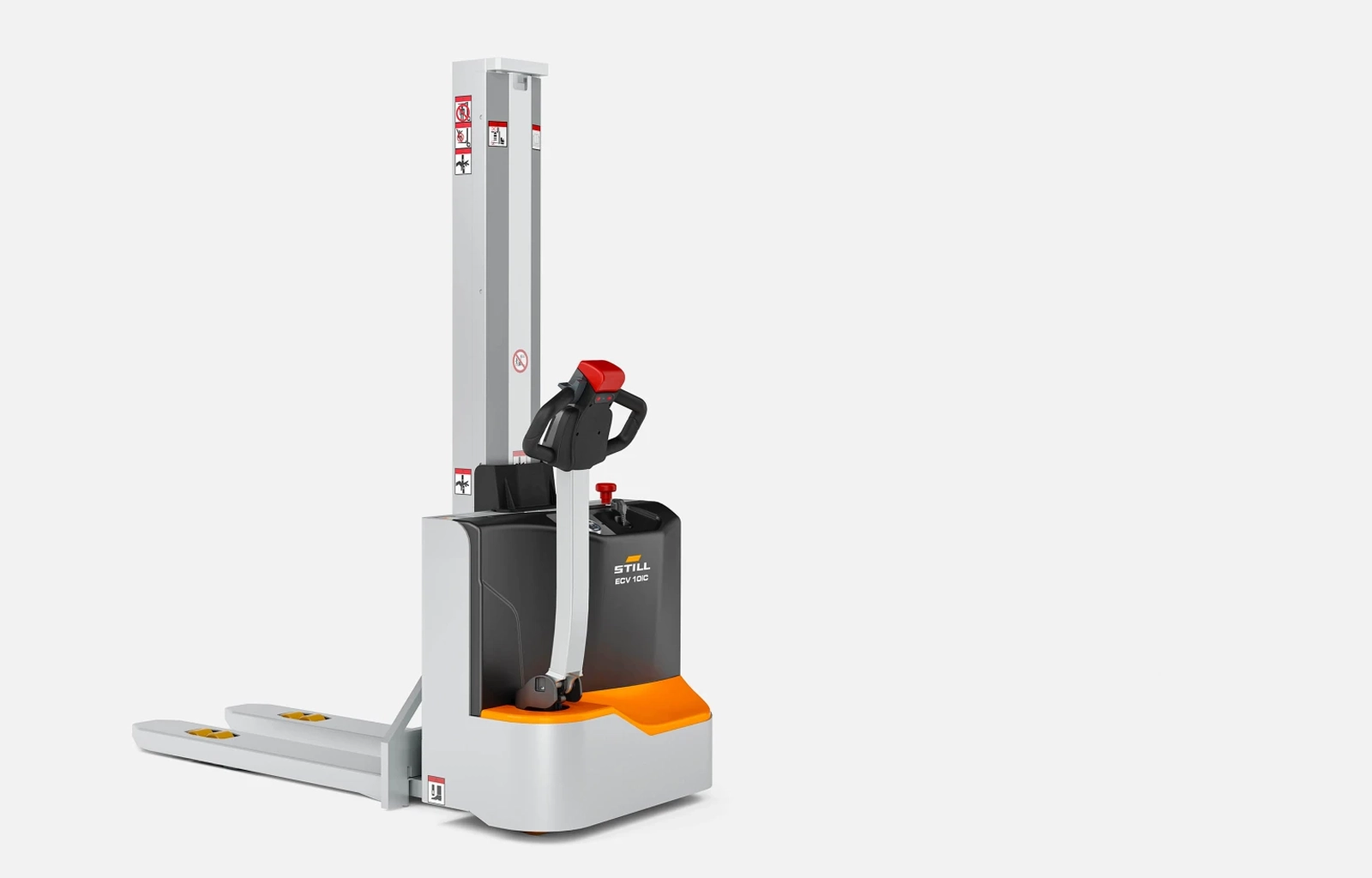

The STILL ECV 10C is STILL’s most compact high lift pallet truck. It is the ideal entry-level electric stacker for narrow aisles and tight work areas. A mono mast gives operators a clear view of the fork tips for accurate pallet entry. It can stack loads up to 1,867 mm or work as an ergonomic mobile workbench.
For higher racking, the STILL ECV 10 lifts up to 3,227 mm, depending on the mast. Its twin 12 V batteries provide 125 Ah for longer operating times. Both models have a built-in charger, so you can charge them from any standard power socket. The ECV 10iC version adds an initial lift function for thresholds, ramps and uneven floors.
Al Shirawi Enterprises supplies genuine STILL walkie stackers across the UAE, backed by sales and after-sales support.
| Specification | ECV 10C | ECV 10 |
|---|---|---|
| Manufacturer | STILL (Germany) | STILL (Germany) |
| Drive / Operation | Electric, pedestrian | Electric, pedestrian |
| Load Capacity | 1,000 kg | 1,000 kg |
| Load Centre | 600 mm | 600 mm |
| Max. Lift Height | 1,867 mm | Up to 3,227 mm (mast dependent) |
| Mast Type | Mono mast | Free-view mast |
| Travel Speed (Laden/Unladen) | 4.0 / 4.5 km/h | 4.5 / 4.8 km/h |
| Traction Motor | 0.65 kW | 0.65 kW |
| Lift Motor | 2.2 kW | 2.2 kW |
| Battery | 2 × 12 V / 85 Ah, maintenance-free | 2 × 12 V / 125 Ah, maintenance-free |
| Charger | Built-in | Built-in |
| Service Weight | 462 kg | 605 kg |
| Overall Width / Length | 800 / 1,615 mm | 800 / 1,740 mm |
| Fork Dimensions (s/e/l) | 60 / 170 / 1,150 mm | 60 / 170 / 1,150 mm |
| Turning Radius | 1,337 mm | 1,399 mm |
| Aisle Width (800×1200 pallet, lengthways) | 2,100 mm | 2,150 mm |
| Max. Gradeability (Laden/Unladen) | 5 / 15% | 5 / 15% |
| Tyres | Polyurethane, Ø210×70 drive; Ø80×60 tandem load rollers | Same |
| Noise Level | 74 dB(A) | 74 dB(A) |
Its very short front end makes it easy to manoeuvre in the tightest spaces.
The built-in charger works from any standard socket, so you don’t need a charging station.
The mono mast or free-view mast lets operators position pallets precisely.
Travel speed drops automatically when the forks are raised, for safer transport.
Tandem load rollers keep driving smooth on uneven floors.
No battery gassing and no watering, which saves time and protects operators.
Low steering effort and a tiller that works equally well for left- and right-handed users.
Handles ramps and thresholds easily.
German-engineered for long service life
Reliable in high-temperature industrial environments
Lower running costs than fuel-powered equipment
From pallet trucks and stackers to order pickers and forklifts
Where the ECV 10C / ECV 10 Delivers Best Performance
Small warehouses, retail backrooms, supermarkets, workshops, pharmacies, light manufacturing and any site with narrow aisles and light or occasional stacking needs.
| Model | Best For |
|---|---|
| ECV 10C | The most compact option, for tight spaces and stacking up to 1,867 mm |
| ECV 10iC | Same as the 10C, plus initial lift for ramps and thresholds |
| ECV 10 | Higher stacking up to 3,227 mm and longer runtime from 125 Ah batteries |
What to Look For in an Electric Stacker: UAE Buying Checklist
| Requirement | Why It Matters |
|---|---|
| Lift height | Must reach your highest racking level |
| Load capacity | 1,000 kg suits light-to-medium pallets |
| Aisle width | Compact stackers work where forklifts can’t |
| Charging setup | A built-in charger means no dedicated charging area |
| Floor conditions | Initial lift helps on ramps and thresholds |
| Local after-sales support | Protects uptime and gives access to genuine parts |
Share your requirement — our team will reach out shortly.
