2.5 Ton Electric Reach Truck for Long Loads and Warehouse Storage in the UAE

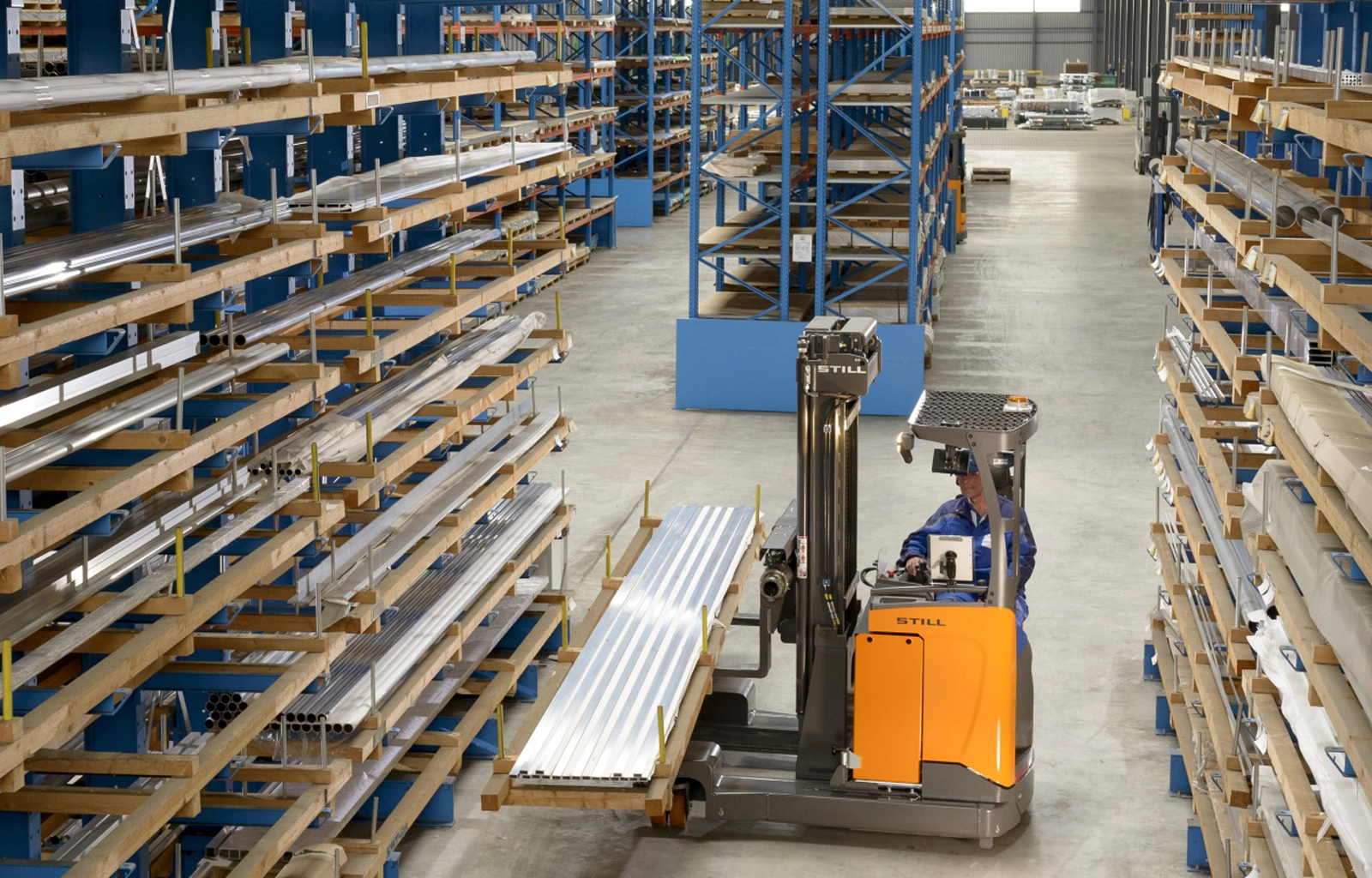

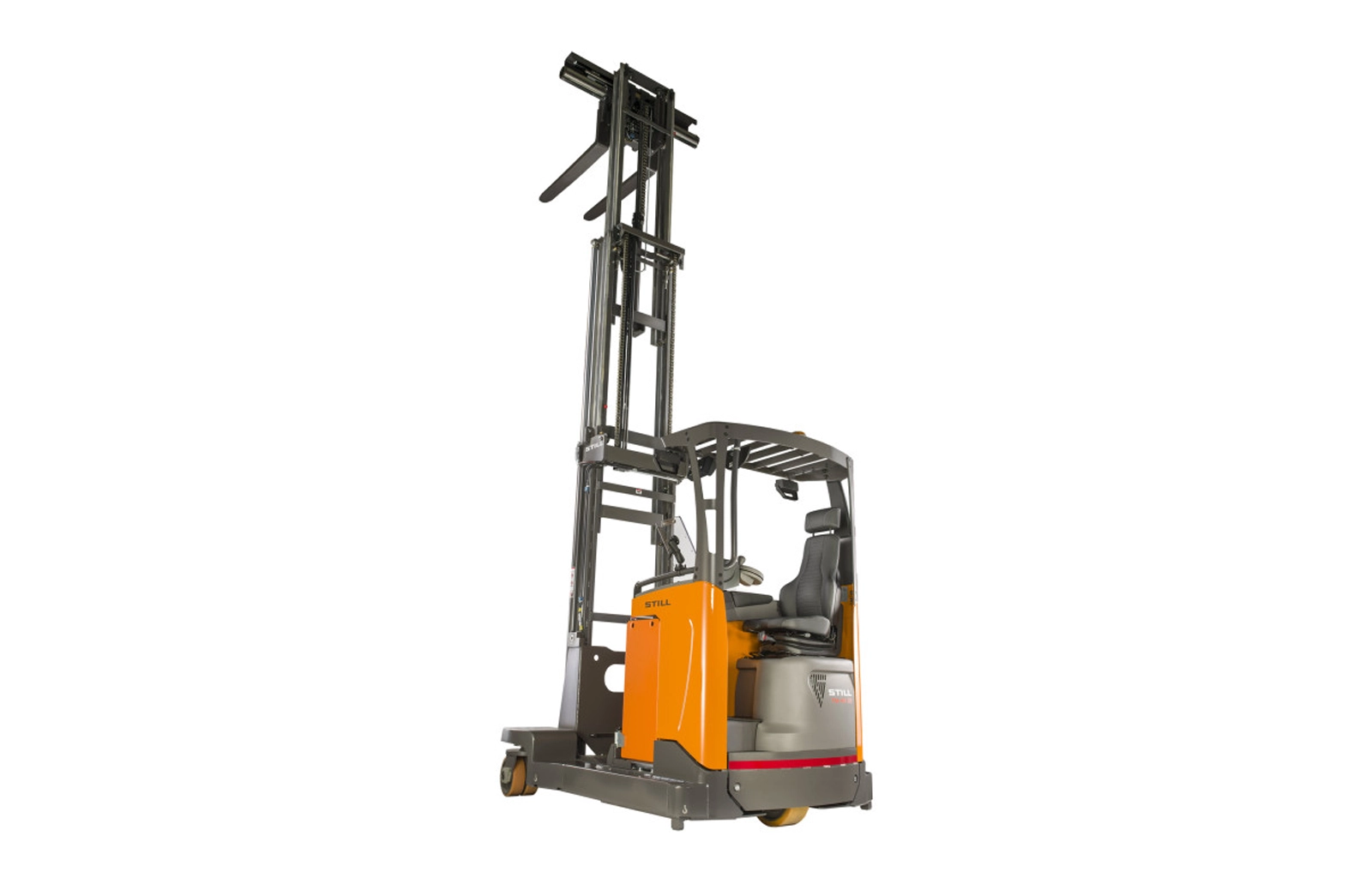

The STILL FM-4W four-way reach truck combines conventional pallet handling with sideways travel for transporting long items. Its wheels turn through 90°, allowing the truck to move forwards, backwards and sideways. This makes it particularly suitable for warehouses handling both standard pallets and lengthy goods in restricted spaces.
With a rated capacity of up to 2,500 kg, the range supports demanding warehouse transport and storage tasks. Its high residual capacity allows loads of up to 1,000 kg at 9.5 metres, while proportional hydraulic control and an integrated weight and height display support precise load positioning.
Explore the range from Al Shirawi Enterprises and request a quotation for your warehouse requirements.
| Model | Rated Capacity | Listed Maximum Lift Height | Battery Voltage |
|---|---|---|---|
| FM-4W 20 | 2,000 kg | 8,450 mm | 48 V |
| FM-4W 25 | 2,500 kg | 9,650 mm | 48 V |
| Specification | Details |
|---|---|
| Truck type | Four-way electric reach truck |
| Operator position | Seated |
| Rated load capacity | 2,000–2,500 kg |
| Load centre | 600 mm |
| Travel speed | Up to 13 km/h |
| Battery voltage | 48 V |
| Battery capacity range | 465–930 Ah |
| Travel directions | Forward, backward and sideways |
| Sideways travel | Wheels turn through 90° |
| Load information | Integrated weight and height display |
| Hydraulic control | Proportional valve technology |
| Operator controls | Joystick or fingertip control |
Move lengthy goods sideways through warehouse aisles while retaining the ability to handle standard pallets and containers.
The four-way design supports manoeuvring in narrow aisles, helping businesses use their available storage space more effectively.
Choose between 2,000 kg and 2,500 kg models to match your handling requirements, subject to the applicable load chart.
A stable mast and high residual capacity support handling loads of up to 1,000 kg at 9.5 metres.
Proportional valve technology gives operators closely controlled hydraulic movements for accurate load handling.

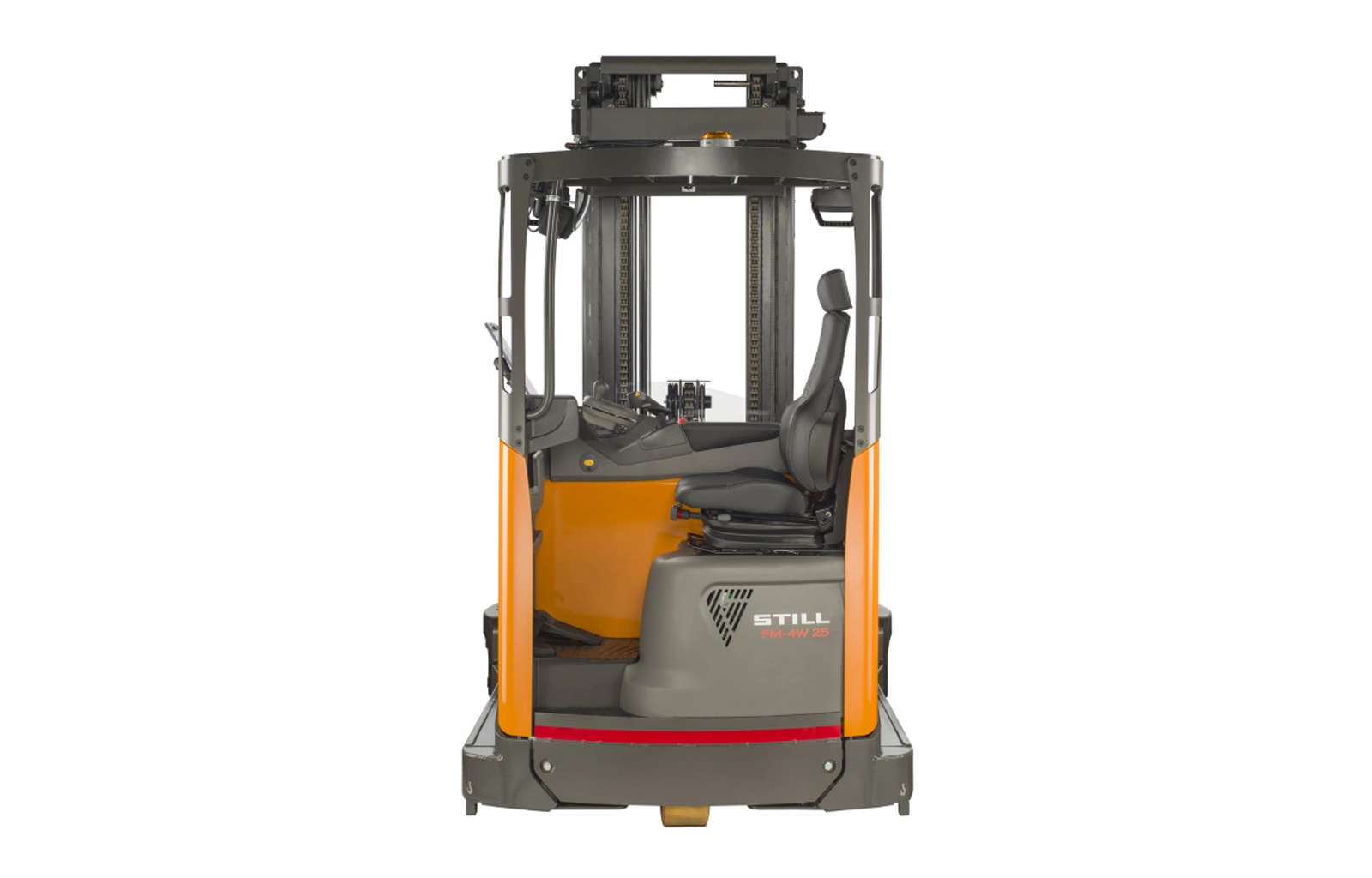

The mast and overhead guard are designed to optimise the operator’s view of the goods.
The seat, armrests, steering wheel and footplate can be adjusted to suit the operator. Joystick or fingertip controls allow functions to be operated without repeatedly changing hands.
A tilting seat with pneumatic lumbar support offers a maximum tilt of 18°, helping operators look upwards during high-rack handling.
Load-dependent speed limits and Curve Speed Control support controlled travel and cornering.
Optional lift-height pre-selection and assistance systems help operators deposit and retrieve goods quickly and precisely.
The company lists both 2-tonne and 2.5-tonne four-way reach trucks, giving buyers a choice of capacities within the same range. Its product offering also includes pallet trucks, stackers, order pickers and other warehouse equipment.
For a quotation matched to your operation, share:
Where the FM-4W Delivers Best Performance
Warehouses handling long goods and standard pallets, building-material stores, industrial-component storage facilities and manufacturing plants with restricted aisle space.
| Model | Selection Starting Point |
|---|---|
| FM-4W 20 | Operations requiring a rated capacity of up to 2,000 kg |
| FM-4W 25 | Operations requiring a rated capacity of up to 2,500 kg |
Both models are listed with 48 V batteries and travel speeds of up to 13 km/h. Final selection should consider the required residual capacity at height, not rated capacity alone.
Use this checklist when preparing your enquiry.
| Requirement | What to Confirm |
|---|---|
| Maximum load weight | Required capacity for the actual handling task |
| Load dimensions | Length, width, balance and support requirements |
| Storage height | Residual capacity at the highest rack level |
| Aisle width | Clearance for the truck and load during sideways travel |
| Building clearances | Doorways, overhead structures and mast clearance |
| Operating hours | Battery capacity and charging requirements |
| Operator requirements | Seating, controls and visibility preferences |
| Equipment package | Included features, options and support terms |
It is a four-way electric reach truck for handling long loads in narrow aisles. Its wheels turn through 90° to enable precise sideways travel.
The range includes models rated at 2,000 kg and 2,500 kg, with a listed load centre of 600 mm.
The supplier lists maximum lift heights of 8,450 mm for the smaller model and 9,650 mm for the larger model. The selected mast and capacity at height must be confirmed before ordering.
Rated capacity should not be interpreted as capacity at maximum height. The product information separately specifies 1,000 kg at 9.5 metres. Check the residual-capacity chart for the selected configuration.
The wheels turn through 90°, allowing the truck to travel sideways for precise long-load positioning.
The product is listed for long-load handling in narrow aisles. Actual suitability depends on the truck configuration, load dimensions and available clearances.
Request a tailored quotation specifying your load weight, load dimensions, required lift height, battery requirements and preferred equipment options.
