Double-Load Pallet Handling for High-Turnaround Warehouse Operations
The STILL EXD 18–20 is an electric double decker pallet truck built for handling a double load in a single trip. The EXD 18C carries up to 1,800 kg and the EXD 20C up to 2,000 kg at a 600 mm load center, with a maximum lift height of 1,724 mm. A five-wheel chassis, ECO, BOOST and Blue-Q driving programmes and a lithium-ion battery option support high turnaround, while the STILL tiller suits both right- and left-handed operators. Supplied in the UAE by Al Shirawi Enterprises, the authorised STILL dealer in Dubai.
Contact Al Shirawi Enterprises for a quotation matched to your pallet weights, travel routes and shift pattern.
| Model | Maximum Capacity | Maximum Lift Height | Travel Speed | Battery Voltage |
|---|---|---|---|---|
| EXD 18C | 1,800 kg | 1,724 mm | 6.0 km/h | 24 V |
| EXD 20C | 2,000 kg | 1,724 mm | 6.0 km/h | 24 V |
| Specification | Details |
|---|---|
| Equipment Type | Electric Double Decker Pallet Truck with double-deck capability |
| Load Capacity | EXD 18C: 1,800 kg · EXD 20C: 2,000 kg |
| Load Center | 600 mm |
| Maximum Lift Height | 1,724 mm |
| Maximum Travel Speed | 6 km/h |
| Battery Voltage | 24 V |
| Battery Technology | Up to 375 Ah, lateral battery change available, or Li-Ion battery for easy interim charging |
| Driving Programmes | ECO, BOOST and Blue-Q |
| Chassis | 5-wheel chassis for high lateral stability |
| Rated Power | Traction motor approx. 1.5 kW; hoist motor approx. 2.2 kW |
| Controls | STILL tiller for right- and left-handed operators |
| Wheel Configuration | 1× + 2/4 (one drive wheel with two or four load rollers), polyurethane or similar tyres |
Double-deck operation gives flexible use and moves more per trip.
A powerful, reliable and low-maintenance electrical drive and steering motor keep cycle times short.
Choose a battery of up to 375 Ah with lateral battery change, or a Li-Ion battery that stores a large amount of energy and allows easy interim charging.
Select maximum turnaround or maximum efficiency with ECO, BOOST or Blue-Q.
The 5-wheel chassis gives high lateral stability for powerful ramp travel and easy negotiation of uneven ground.
The innovative STILL tiller on the EXD 18C and 20C suits both right- and left-handed operators.
The integrated lithium-ion battery on the EXD 18C and 20C keeps dimensions compact for precise handling even in the tightest spaces.
Built to German engineering standards, STILL warehouse trucks deliver long operational life in demanding UAE environments.
Advanced electric drive systems reduce running costs compared with fuel-based alternatives.
Comfortable platforms, intuitive controls and safety assistance systems reduce fatigue and improve productivity.
Reliable performance in high-temperature industrial environments across Dubai and the wider UAE.
From low lift pallet trucks to stackers, order pickers and forklifts, STILL solutions grow with your operation.
Where the EXD 18–20 Delivers Best Performance
Recommended applications below are based on the manufacturer’s stated uses for lorry loading, unloading, and rapid horizontal transport.
| Model or Option | Selection Starting Point |
|---|---|
| EXD 18C | Loads up to 1,800 kg |
| EXD 20C | Heavier loads up to 2,000 kg |
| Li-Ion Battery | Operations where interim charging fits the shift schedule |
| Lateral Battery Change | Workflows that swap batteries between operating periods |
The EXD 18C handles up to 1,800 kg and the EXD 20C up to 2,000 kg, both with a 600 mm load center.
Both models have a maximum lift height of 1,724 mm.

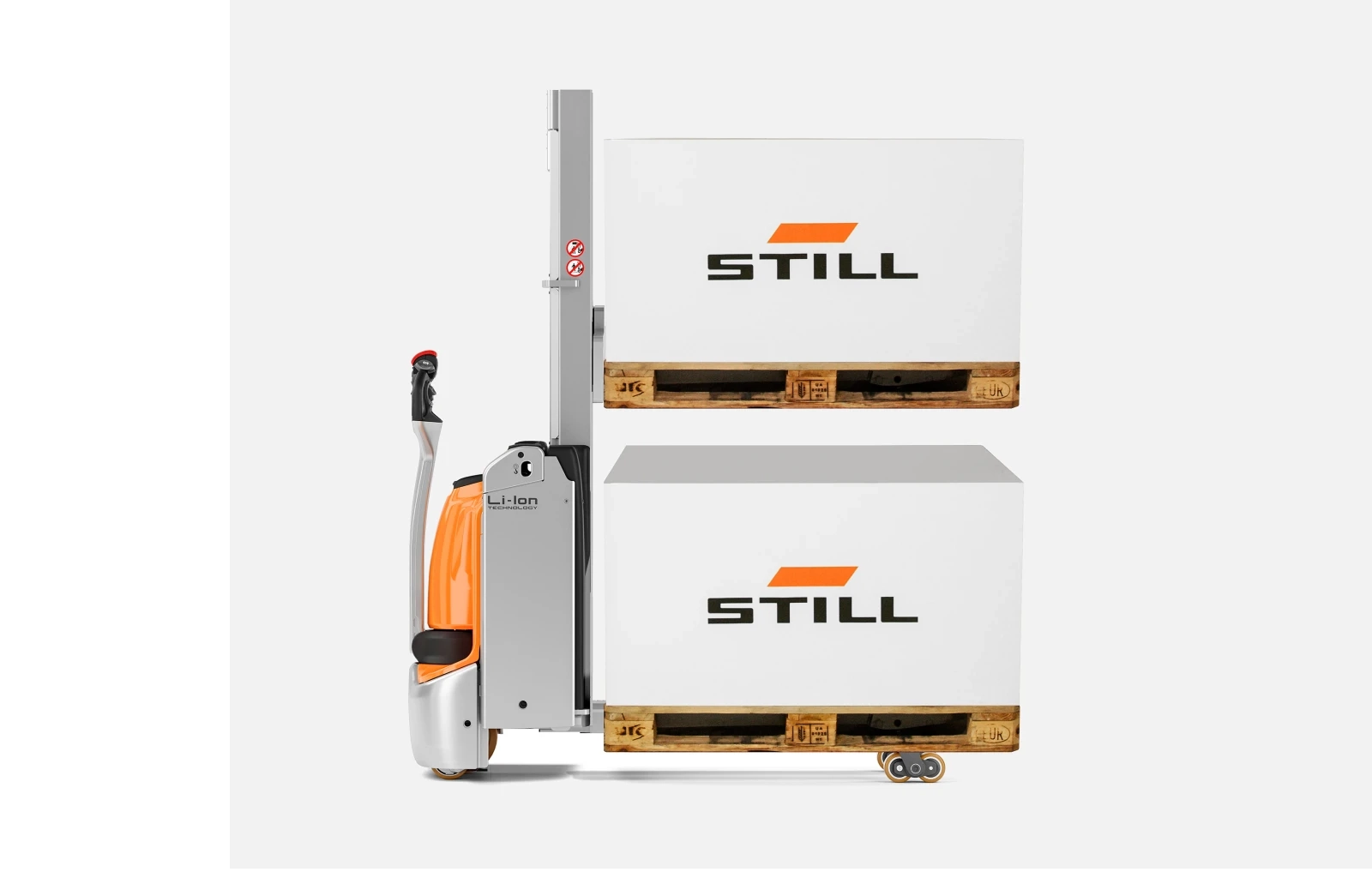

A double decker pallet truck is designed for double-deck operation, so it can handle a double load in one trip. The STILL EXD 18–20 uses this to raise handling capacity and turnaround rate.
Maximum travel speed is 6 km/h on a 24 V system. You can choose a battery of up to 375 Ah with lateral battery change, or a Li-Ion battery that allows easy interim charging.
ECO, BOOST and Blue-Q. Select maximum turnaround or maximum efficiency to suit the task.
All three are STILL double deckers rated up to 2,000 kg at a 600 mm load center. The EXD-S 20 and EXD-SF 20 are listed with speeds of up to 10 km/h, against 6 km/h for the EXD 18–20.
Start with your heaviest load, travel distances, ramps or uneven floors, battery preference and shift pattern. Choose the EXD 18C up to 1,800 kg or the EXD 20C up to 2,000 kg.
