High Level Electric Order Picker for Sale in UAE | Al Shirawi Enterprises

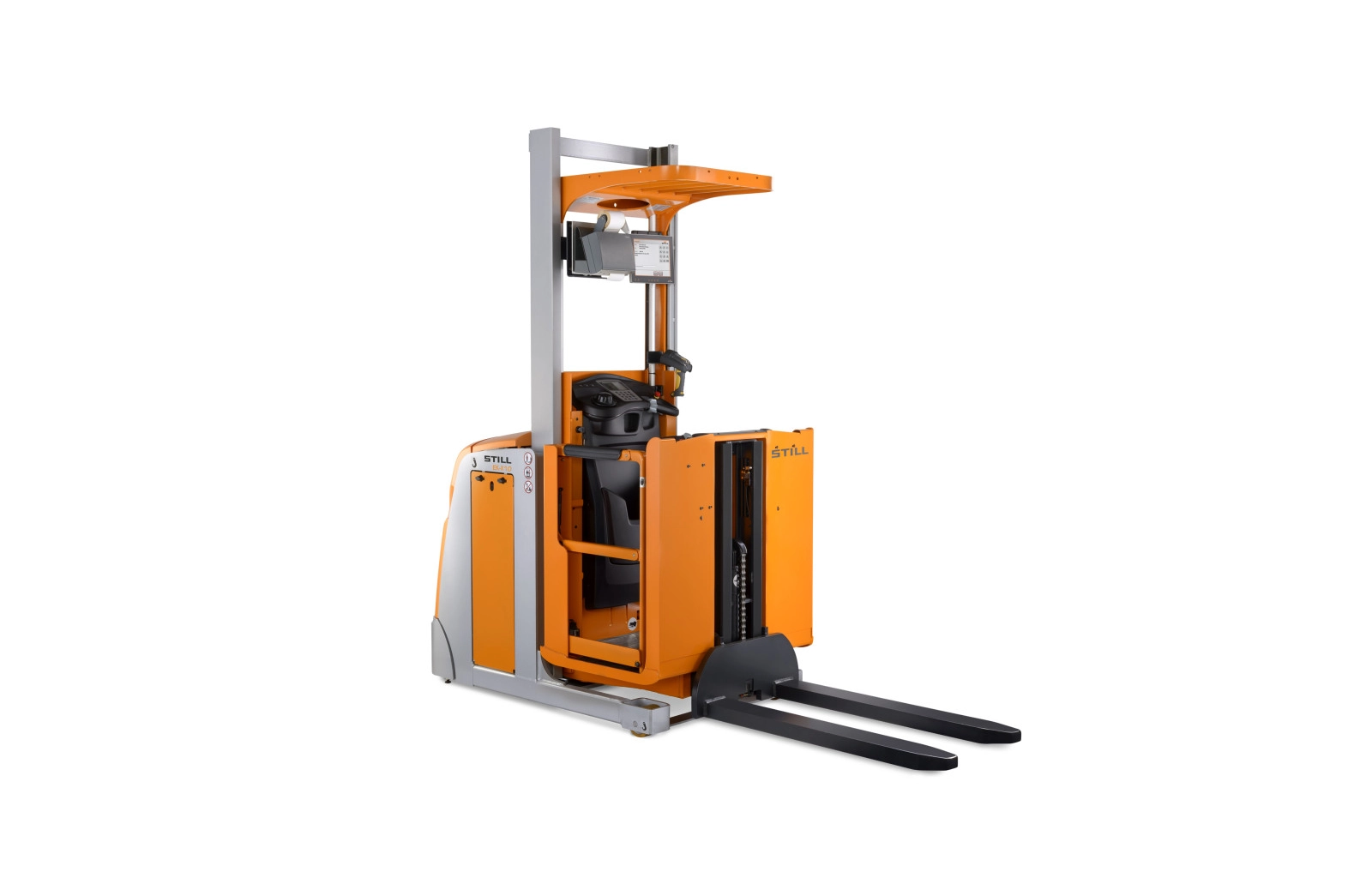

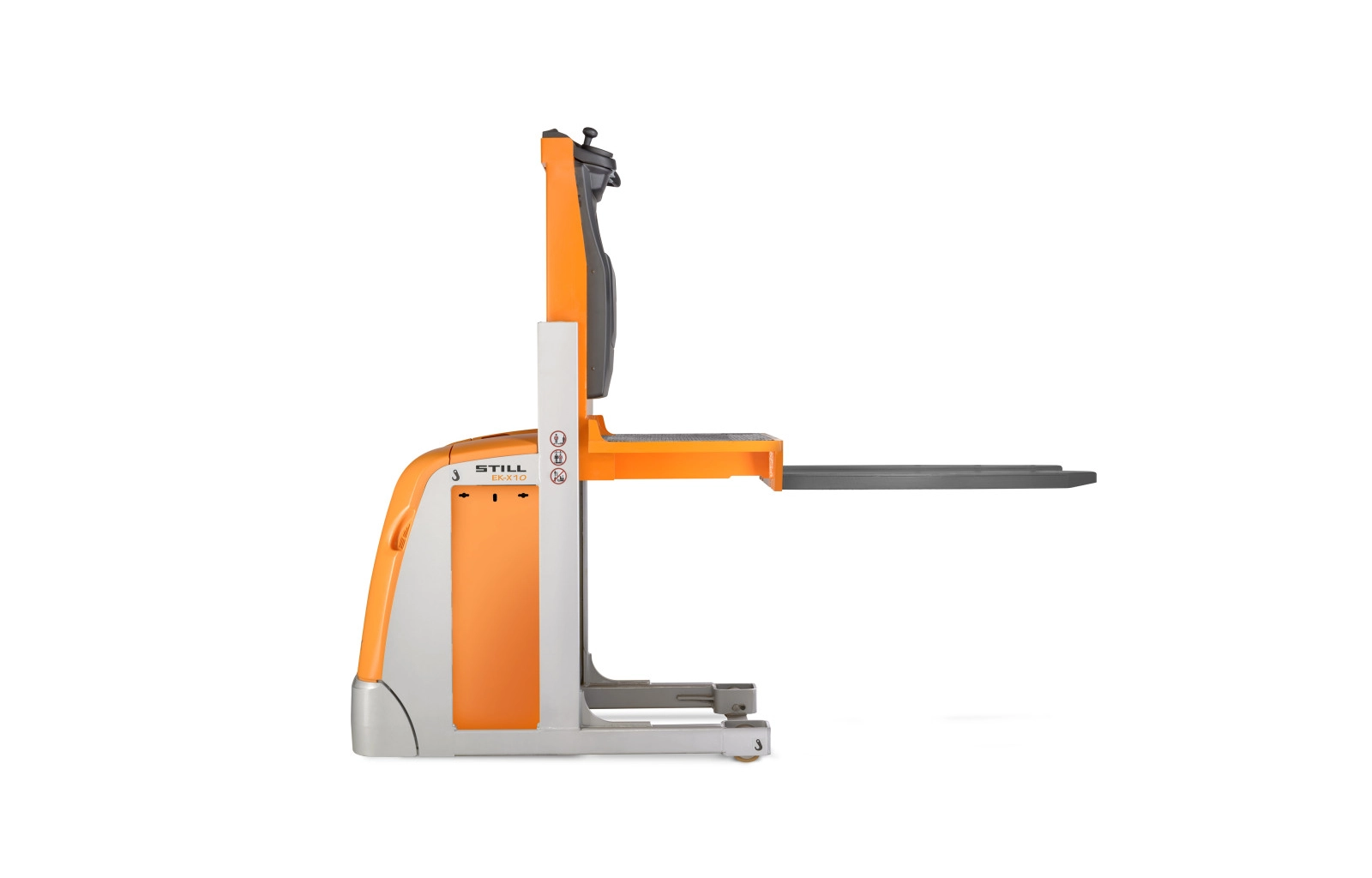

The STILL EK-X 10 is a vertical order picker built for efficient, ergonomic picking at height. Its handling capacity, safety features and operator comfort make it a strong performer in both wide-aisle and narrow-aisle (VNA) warehouses. It lifts up to 1,000 kg, and the operator rides the platform up to the pick face, so there’s no need for ladders or for bringing down a whole pallet to pick one item.
The clear view through the mast lets operators work quickly and precisely. The spacious cab has a shock-absorbing floor, and optional tilting side barriers shorten the reach to the rack, so goods are easy to retrieve even from the back of a shelf. You can choose a single or telescopic mast, with or without additional lift, to suit your racking.
Al Shirawi Enterprises supplies genuine STILL electric order pickers across the UAE, backed by sales and after-sales support.
| Specification | Single Mast | Single Mast + Additional Lift | Telescopic Mast + Additional Lift |
|---|---|---|---|
| Manufacturer | STILL (Germany) | STILL (Germany) | STILL (Germany) |
| Drive / Operator | Electric 24 V, stand-on | Electric 24 V, stand-on | Electric 24 V, stand-on |
| Load Capacity | 1,000 kg | 1,000 kg | 1,000 kg |
| Load Centre | 400 mm | 400 mm | 400 mm |
| Platform Height (Elevated) | 1,200 mm | 2,110 mm | 4,750 mm |
| Picking Reach Height | 2,800 mm | 3,710 mm | 6,350 mm |
| Additional Lift | — | 800 mm | 800 mm |
| Travel Speed | 9 km/h | 10 km/h | 10 km/h |
| Traction Motor | 3.0 kW | 3.0 kW | 3.0 kW |
| Overall Width | 790 mm | 980 mm | 980 mm |
| Fork Dimensions (s/e/l) | 60 / 120 / 800 mm | 60 / 120 / 800 mm | 60 / 120 / 800 mm |
| Aisle Width (1200×800, crosswise) | 2,834 mm | 1,380 mm (guided) | 1,380 mm (guided) |
| Turning Radius | 1,485 mm | 1,495 mm | 1,650 mm |
| Service Weight (incl. battery) | 1,564 kg | 2,069 kg | 2,711 kg |
| Brake | Regenerative | Regenerative | Regenerative |
| Tyres | Polyurethane, Ø250×100 drive | Polyurethane, Ø250×100 drive | Polyurethane, Ø250×100 drive; Ø150×100 load |
The operator rides up to the stock, which makes full use of your vertical racking.
Guided versions work in aisles as narrow as 1,380 mm.
The mast has no free lift and no mast transition, so lifting and lowering are quicker. Proportional valves give smooth, continuous control.
Adds operating safety in the aisle, with semi-automated bay approach and warehouse management system connectivity.
A shock-protected stand-on platform with presence switch, plus optional knee and support cushions.
Shorten the gap between truck and rack for faster, safer picking.
Powerful, reliable AC motors for driving and lifting, with configurable speed profiles.
The optional lithium-ion version can be charged during breaks for multi-shift work.
German-engineered for long service life.
Reliable in high-temperature industrial environments.
STILL order pickers are also available on flexible rental through O.Rentals, Al Shirawi’s rental division.
From pallet trucks and stackers to order pickers and forklifts.
E-commerce fulfilment centers, spare parts stores, retail and FMCG distribution centers, pharmaceutical warehouses and record archives, wherever staff pick individual items rather than whole pallets.
| Machine | Best For |
|---|---|
| Order Picker (EK-X 10) | The operator rises to the rack to pick individual items or cases |
| Reach Truck | Full pallets are lifted into racking while the operator stays at ground level |
| Requirement | Why It Matters |
|---|---|
| Top pick level height | Decides between a single mast and a telescopic mast |
| Aisle width | Guided versions suit very narrow aisles |
| Order profile | Item picking suits an order picker, pallets suit a reach truck |
| Floor condition | Narrow-aisle machines need level, finished floors |
| Battery type | Li-Ion supports opportunity charging across shifts |
| Local after-sales support | Protects uptime and gives access to genuine parts |
It is an electric truck where the operator platform rises with the forks, so the operator can pick goods directly from high rack levels.
Depending on the mast, the picking reach height goes up to 6,350 mm on the telescopic mast version.
Yes. Guided versions operate in aisles of about 1,380 mm.
Yes. O.Rentals, Al Shirawi’s rental division, offers STILL order pickers on daily to long-term rental contracts.
Price depends on mast type, height, battery and options. Contact Al Shirawi Enterprises for a tailored quote.
