ECH 12C Low Lift Pallet Trucks
- Load capacity: 1200 kg
- Load Center: 600 mm
- Speed: 4,5 km/h
Twice the Load, Half the Time | Double Deck Pallet Truck for Sale in UAE

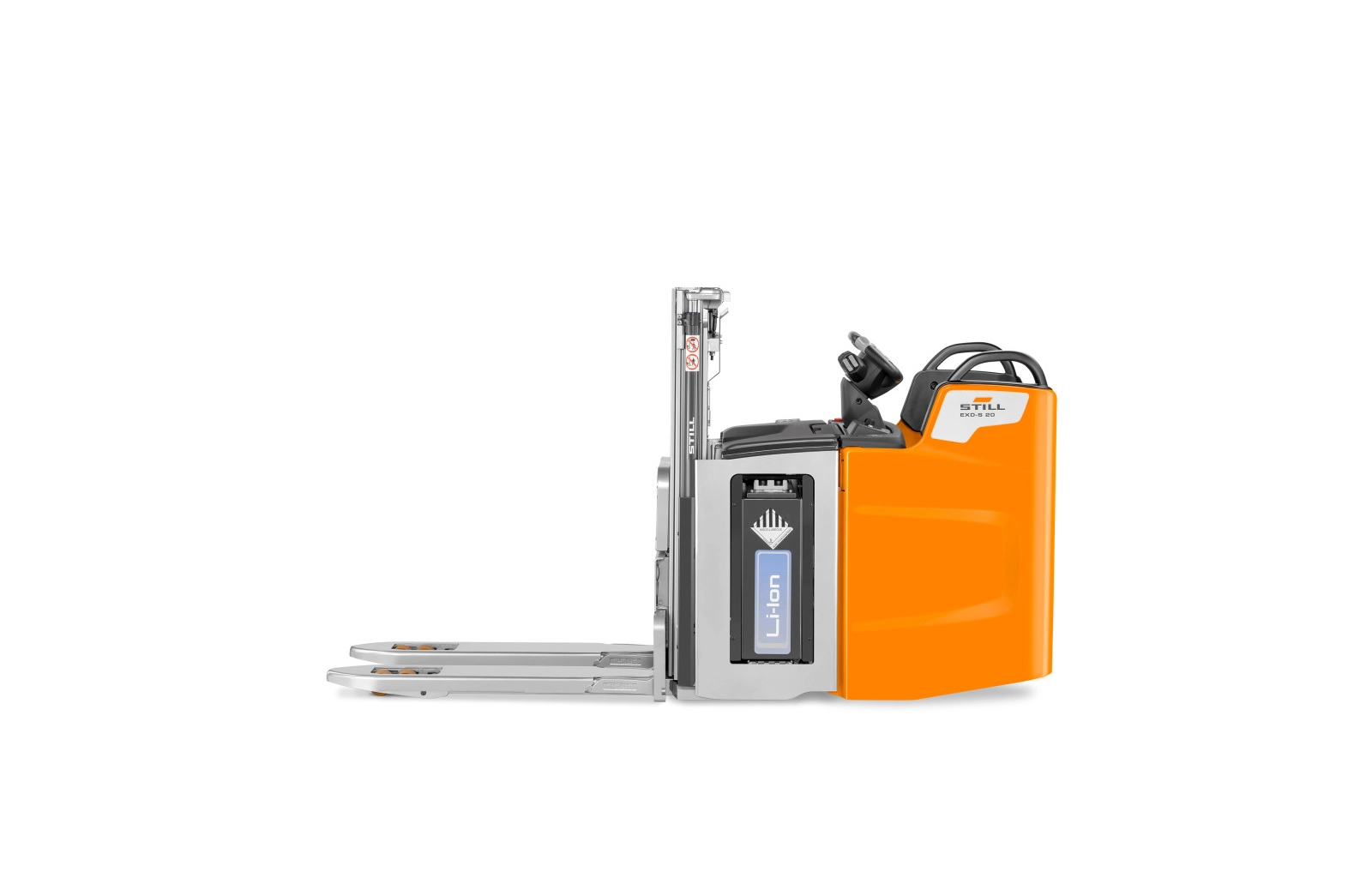

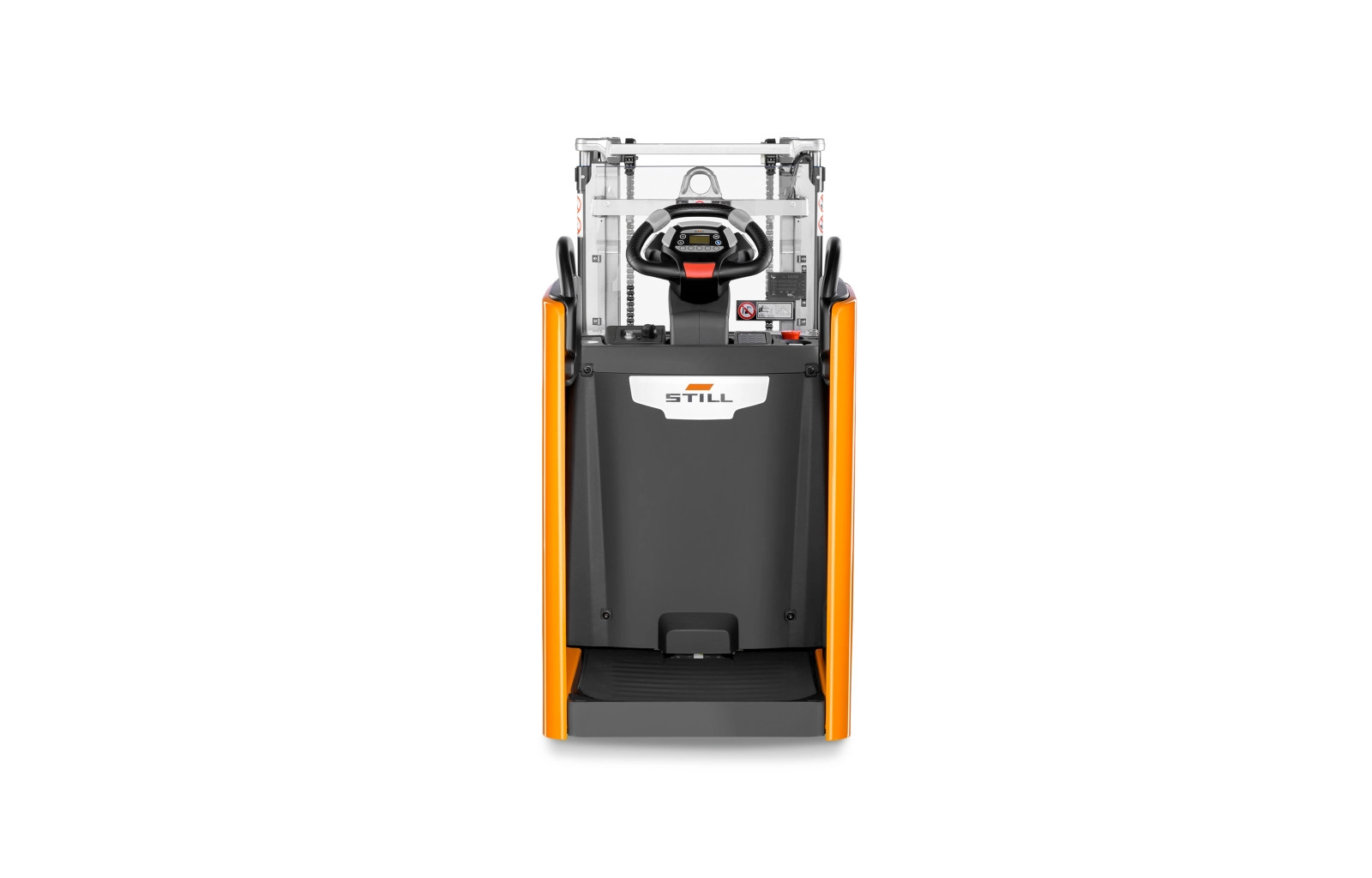

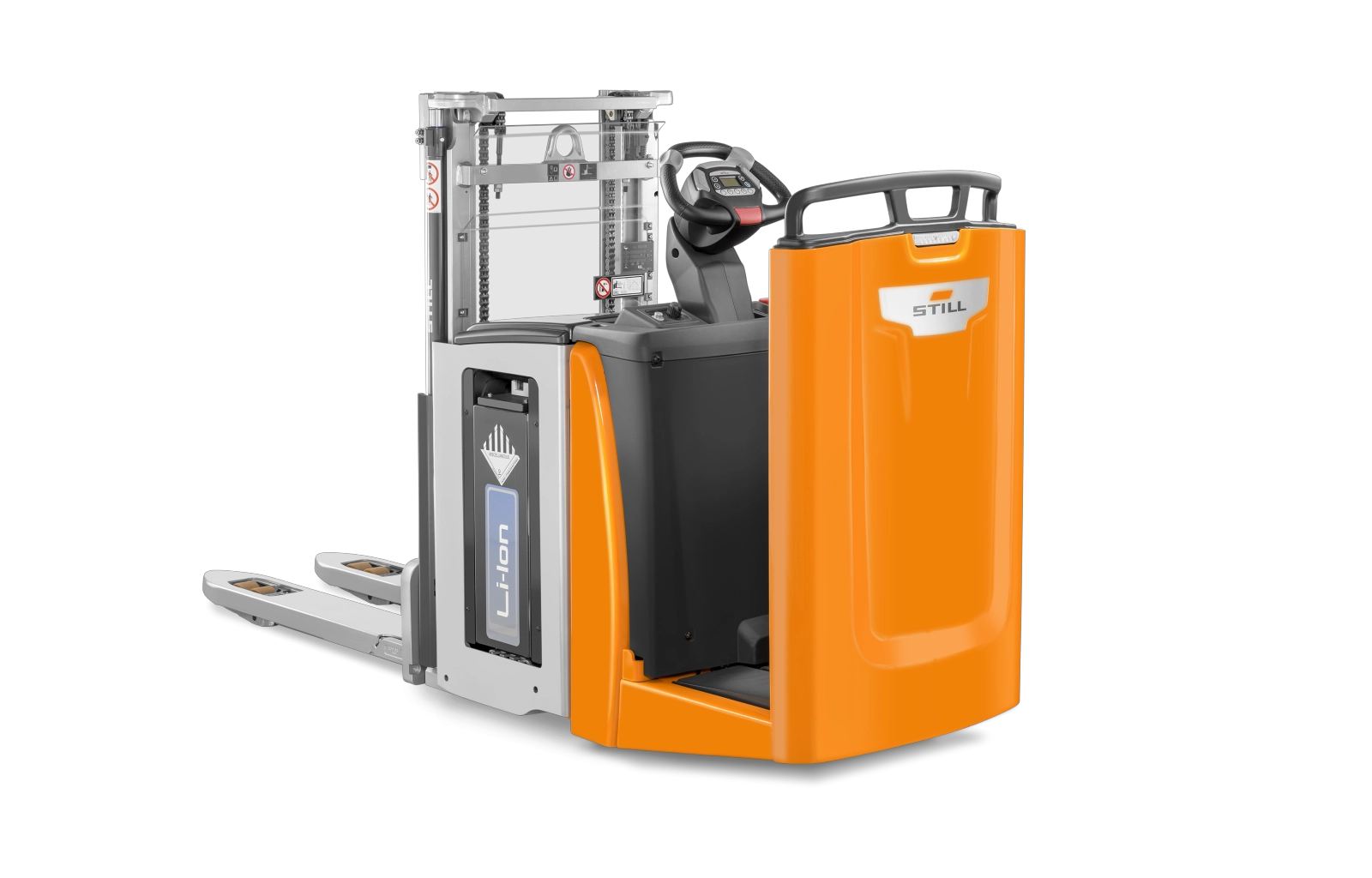

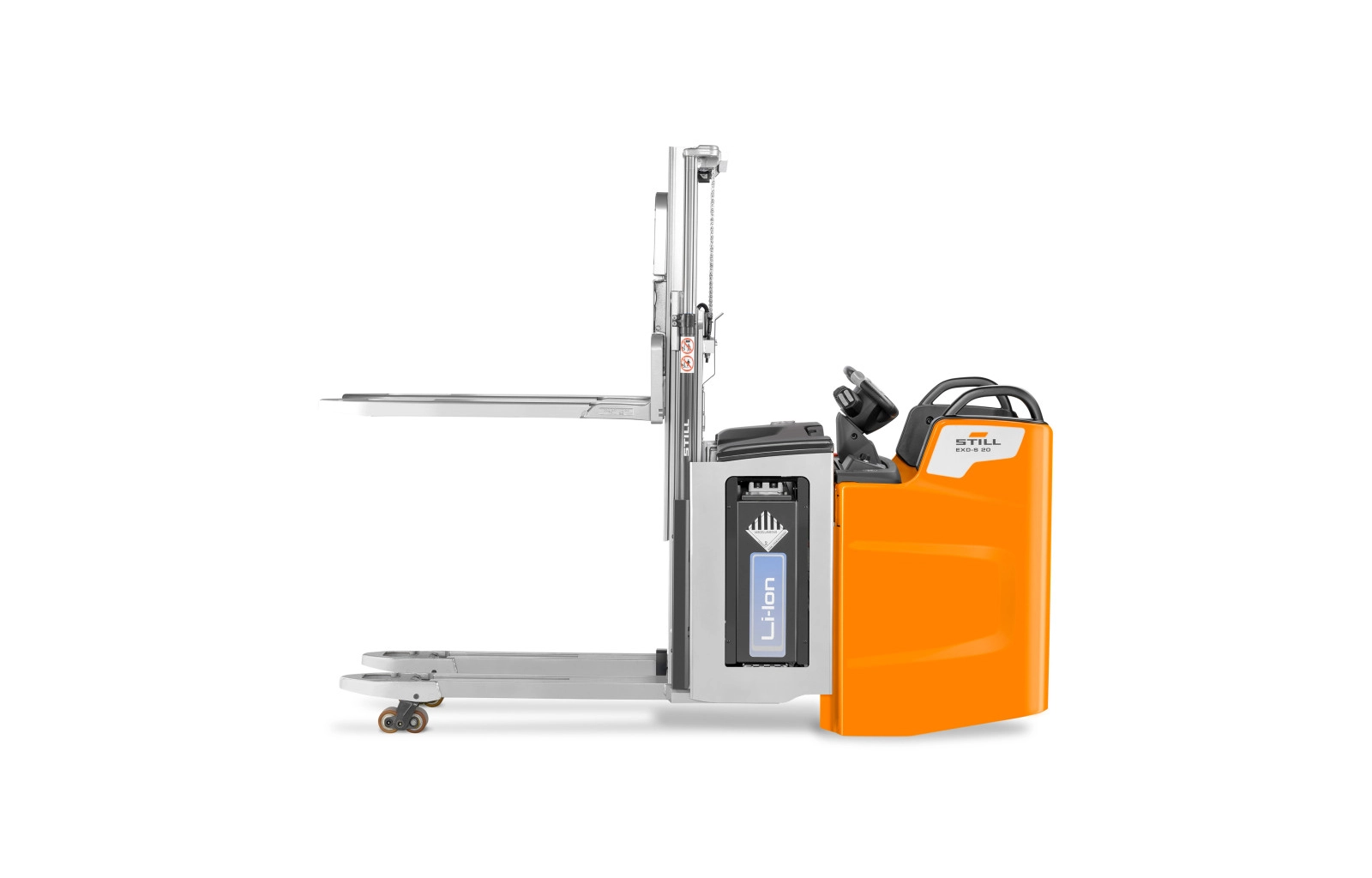

The STILL EXD-S 20 is a double deck high lift pallet truck with a stand-on platform. It carries two pallets in a single trip: one on the initial lift and one on the mast lift. That means fewer trips, faster loading and unloading, and higher throughput on every shift.
It can carry a total of 2,000 kg on the initial lift or split the load into two pallets of 1,000 kg each. Its solid steel chassis and suspended support wheels make it reliable for long days, ramp work and heavy, non-stackable loads.
Al Shirawi Enterprises supplies genuine STILL double stacker trucks across the UAE, backed by sales and after-sales support.
| Specification | Detail |
|---|---|
| Manufacturer | STILL (Germany) |
| Model | EXD-S 20 / Li-Ion |
| Drive / Operation | Electric, stand-on platform |
| Load Capacity | 2,000 kg (initial lift) |
| Double-Deck Capacity | 1,000 kg + 1,000 kg |
| Load Centre | 600 mm |
| Initial Lift | 125 mm |
| Travel Speed (Laden/Unladen) | 10 / 10 km/h |
| Main Lift Speed (Laden/Unladen) | 0.14 / 0.22 m/s |
| Traction Motor | ~3.0 kW |
| Lift Motor | ~2.2 kW |
| Overall Width / Length | 720 / 2,585 mm |
| Fork Dimensions (s/e/l) | 50 / 180 / 1,190 mm |
| Overall Fork Width | 560 mm |
| Fork Height (Lowered) | 86 mm |
| Wheelbase | 1,680 mm |
| Service Weight (incl. battery) | 1,336 kg |
| Tyres | Polyurethane, Ø230×90 drive; Ø85×85 load rollers; 2× Ø125×60 support rollers |
| Wheel Configuration | 1× + 2/4 (5-wheel chassis) |
Double-deck handling cuts travel time in half for truck loading and long transport runs.
The operator rides on the truck, so they can cover longer warehouse distances without fatigue.
A 5-wheel chassis with stabilizing support wheels and a strong drive motor gives secure ramp travel.
A height-adjustable steering wheel with smooth electric steering suits both left- and right-handed operators.
A low step-in height and an optional air-cushioned platform protect the operator’s back and joints.
Speed adjusts automatically to lift height, load and steering angle.
The free-view mast and centrally positioned drawbar give an unobstructed view of the load and surroundings.
Charge during breaks from any standard socket, and use side battery change for multi-shift operation.
German-engineered for long service life
Reliable in high-temperature industrial environments
Lower running costs than fuel-powered equipment
STILL warehouse equipment is also available on flexible rental through O.Rentals
Where the EXD-S 20 Delivers Best Performance
Logistics hubs, distribution centres, FMCG and beverage warehouses, cold stores and busy loading docks, wherever large numbers of pallets move over long distances.
| Machine | Best For |
|---|---|
| Low lift pallet truck (EXH) | Moving one pallet over short distances |
| High lift stacker (ECV) | Stacking into racking in compact spaces |
| Double stacker (EXD-S 20) | Moving two pallets per trip, quickly, over longer distances |
| Requirement | Why It Matters |
|---|---|
| Pallet volume per shift | Double-deck handling pays off in high-throughput operations |
| Travel distance | Stand-on operation suits longer runs |
| Ramp and dock use | Support wheels and drive power ensure stability |
| Pallet weight | Up to 1,000 kg per level, or 2,000 kg on the initial lift |
| Battery type | Li-Ion supports opportunity charging |
| Local after-sales support | Protects uptime and gives access to genuine parts |
It is an electric pallet truck that carries two pallets stacked on two levels, one on the initial lift and one on the mast, so it moves twice the load per trip.
Up to 2,000 kg on the initial lift, or 1,000 kg on each of the two levels.
Yes. It is built for loading and unloading trucks and for heavy, non-stackable loads.
Yes. The Li-Ion version has an optional built-in charger.
Price depends on mast height, battery and options. Contact Al Shirawi Enterprises for a tailored quote.
