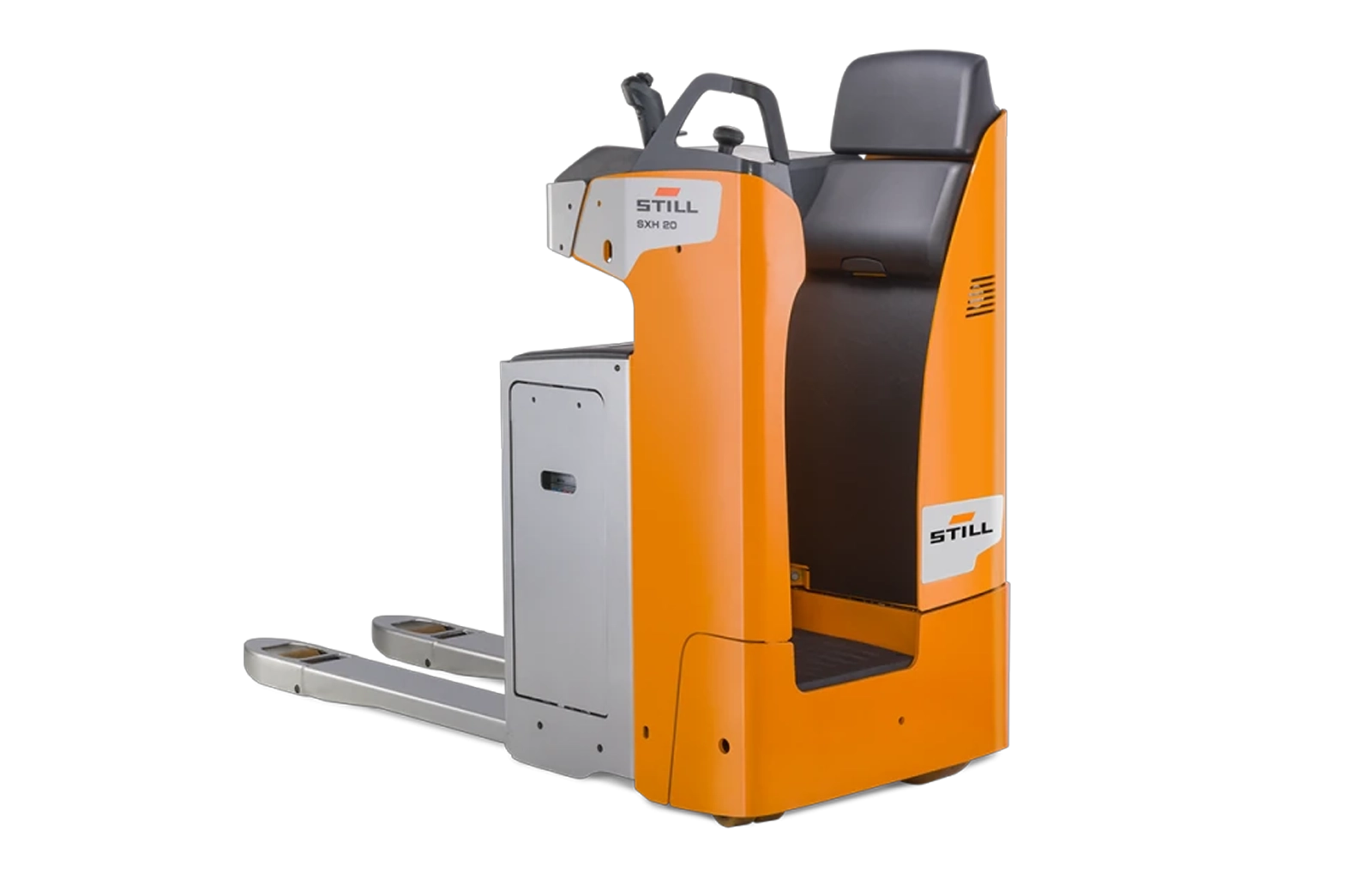

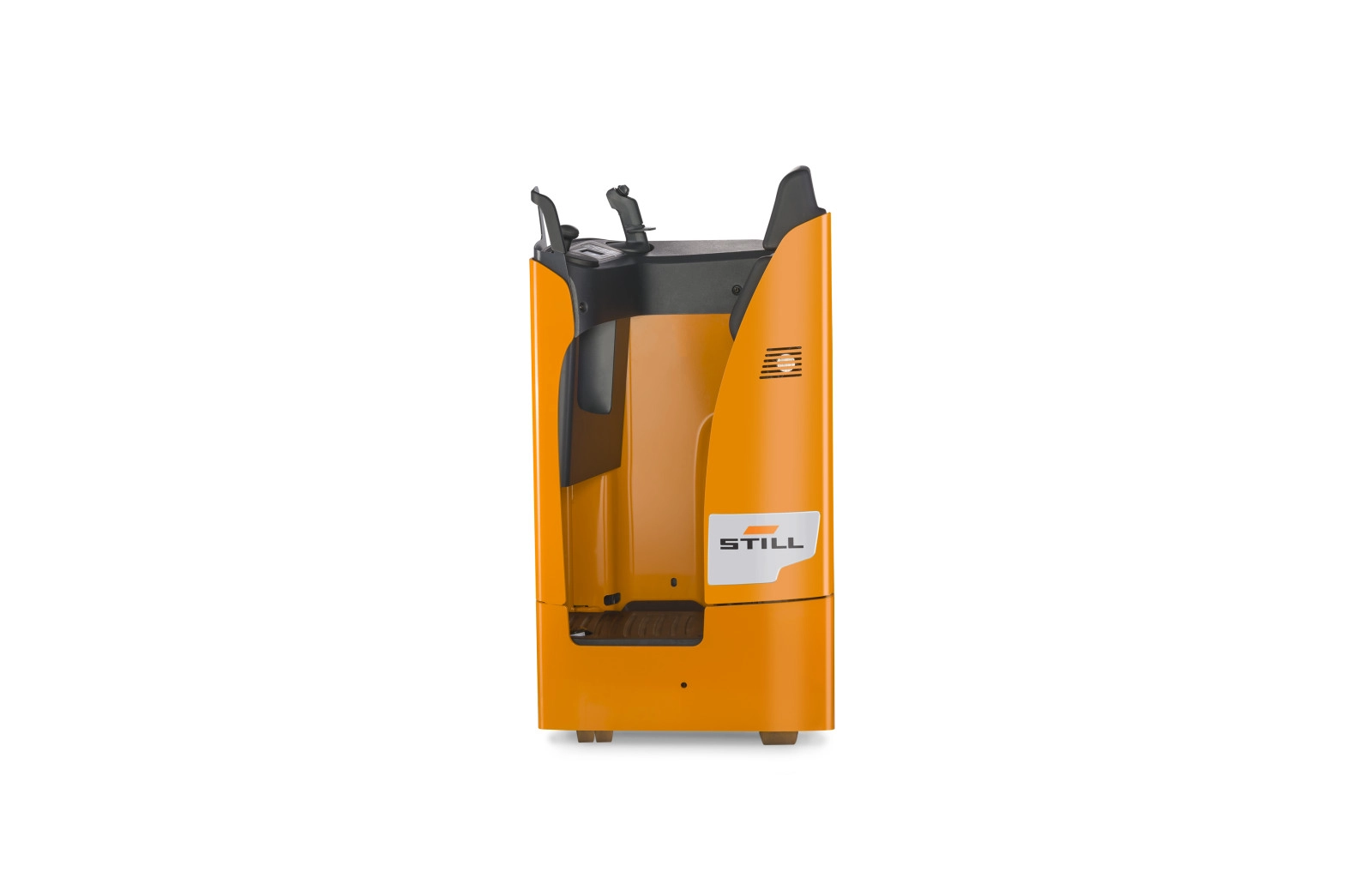

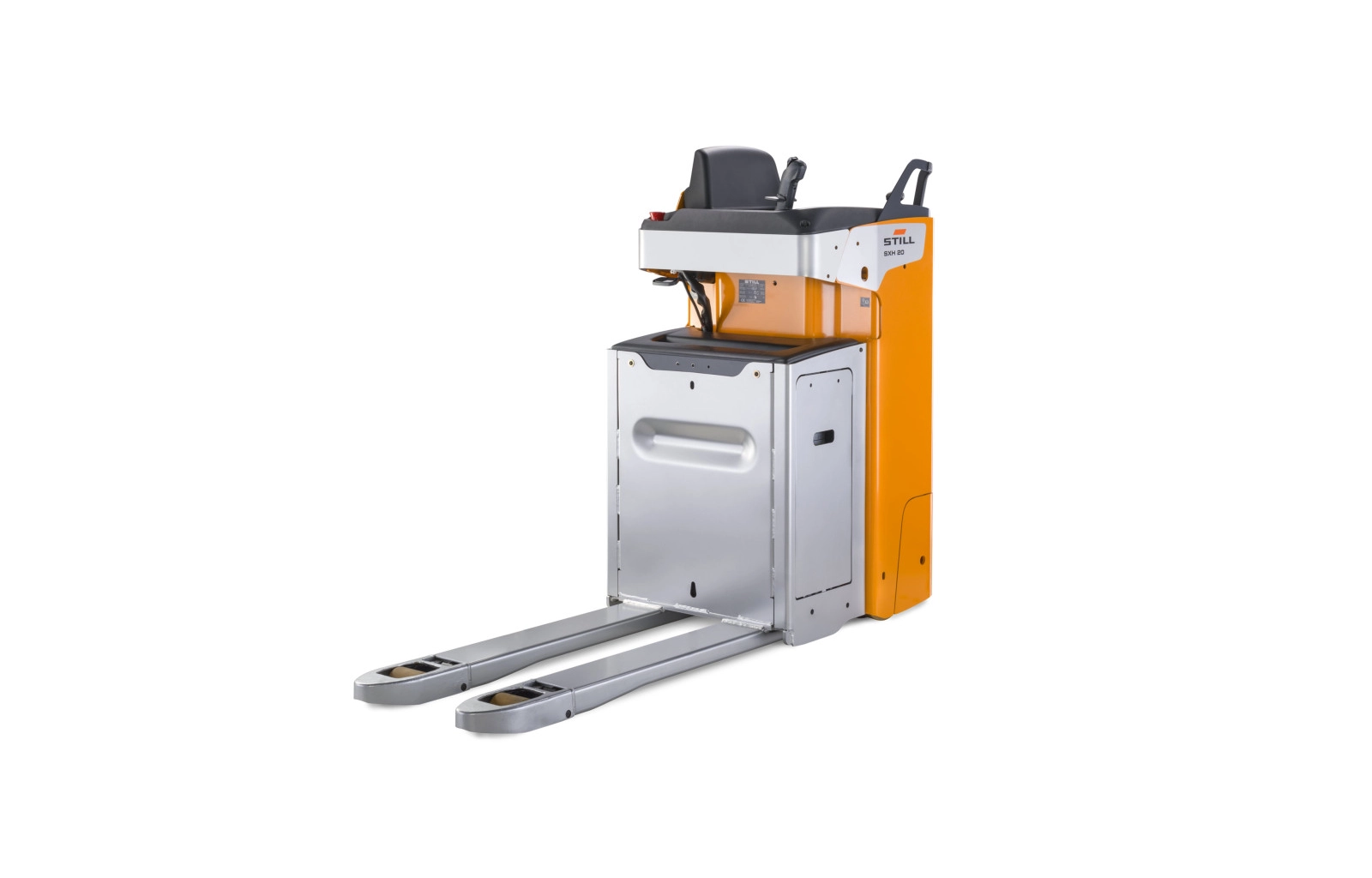

SXH 20 Low Lift Pallet Trucks

SXH 20 Low Lift Pallet Trucks

Compact Stand-On Pallet Handling for Demanding Warehouse Operations

  • Load Capacity: Up to 2,000 kg
  • Lift Height: 125 mm
  • Travel Speed: Up to 12 km/h
  • Battery Voltage: 24 V

An electric stand-on low lift pallet truck for loading and unloading lorries and transporting pallets across warehouse operations. With a load capacity of up to 2,000 kg and travel speeds of up to 12 km/h, it combines productive handling with compact maneuverability in confined spaces. A cushioned operator platform and flexible steering-wheel positioning support comfortable everyday operation.

Contact Al Shirawi Enterprises for a quotation matched to your pallet weights, transport routes and operating requirements.

Specification Details
Equipment Type Electric Stand-On Low Lift Pallet Truck
Maximum Load Capacity 2,000 kg
Lift Height 125 mm
Maximum Travel Speed Up to 12 km/h
Battery Voltage 24 V
Battery Technology Standard Battery or Optional Lithium-Ion Battery
Steering System Electric Steering with Optional Left- or Right-Hand Steering-Wheel Positioning
Operator Platform Cushioned Stand-On Platform
Available Truck Widths 770 mm / 820 mm / 970 mm
Driving Programmes ECO, BOOST, and Blue-Q
Cornering Assistance Curve Speed Control
Configuration Options Lateral Battery Change and Chassis Counterbalance


Model Maximum Load Capacity Listed Lift Height Maximum Travel Speed Battery Voltage
SXH 20 2,000 kg 125 mm 12 km/h 24 V
SXH 20 / Li-Ion 2,000 kg 125 mm 12 km/h 24 V


Why Choose the STILL EXH-S 20–25 Pallet Truck?

Why Choose STILL Warehouse Equipment?

  • Flexible Equipment Choices

    Battery technology, steering-wheel positioning, and selected equipment options allow the truck to be configured around different operating requirements.

  • Energy-Efficient Operation

    Blue-Q efficiency mode and selectable driving programmes support energy-conscious pallet handling.

  • Operator-Focused Ergonomics

    A cushioned platform, flexible control layout, and intuitive electric steering support comfortable operation.

  • Compact Warehouse Handling

    Compact dimensions and agile steering make the truck suitable for confined spaces and narrow working aisles, subject to clearance assessment.

  • Service-Friendly Design

    Accessible maintenance points and battery-handling options support routine equipment care.

Applications

Where the SXH 20 Delivers Best Performance

Recommended applications below are based on the manufacturer’s stated uses for lorry loading, unloading, and rapid horizontal transport.

Typical Applications Include:

  • Transferring pallets to and from lorries
  • Moving goods between receiving and dispatch areas
  • Repeated horizontal movement of palletised loads
  • Pallet handling where compact dimensions and manoeuvrability are important
  • Using optional lithium-ion opportunity charging between work periods



Which Configuration Do You Need?


Configuration or Option Selection Starting Point
SXH 20 Pallet transport requirements up to 2,000 kg
SXH 20 / Li-Ion Operations where interim charging fits the working schedule
Left- or Right-Hand Steering-Wheel Positioning Matching the control layout to operator preferences
Optional Lateral Battery Change Workflows requiring battery replacement between operating periods
Optional Chassis Counterbalance Applications involving ramps or uneven surfaces, subject to assessment
Optional Load Backrest Loads requiring additional support at the rear of the fork carriage
Optional PIN Access Control Restricting equipment operation to authorised users

Frequently Asked Questions (FAQs)

What is the load capacity of the STILL SXH 20?

The maximum listed load capacity is 2,000 kg, making it suitable for transporting palletised loads weighing up to 2 tonnes.

What is the maximum travel speed?

The truck has a listed maximum travel speed of 12 km/h, supporting productive horizontal pallet transport and loading operations.

What applications is it designed for?

It is designed for loading and unloading lorries and horizontal pallet transport. Its compact dimensions and electric steering also support handling in confined warehouse spaces.

Can the steering-wheel position be selected?

Yes. Optional left- or right-hand steering-wheel positioning allows the control layout to be selected around operator preferences.

How do I choose the right configuration for my operation?

Start with your load weight, pallet dimensions, travel distances, aisle clearances, floor conditions, and shift schedule. Then assess whether optional lithium-ion technology, lateral battery change, or other equipment fits your workflow.

How can I request a quotation in the UAE?

Contact Al Shirawi Enterprises with your handling requirements, preferred battery configuration, and required quantity. Include your warehouse layout and shift schedule to support equipment selection.
