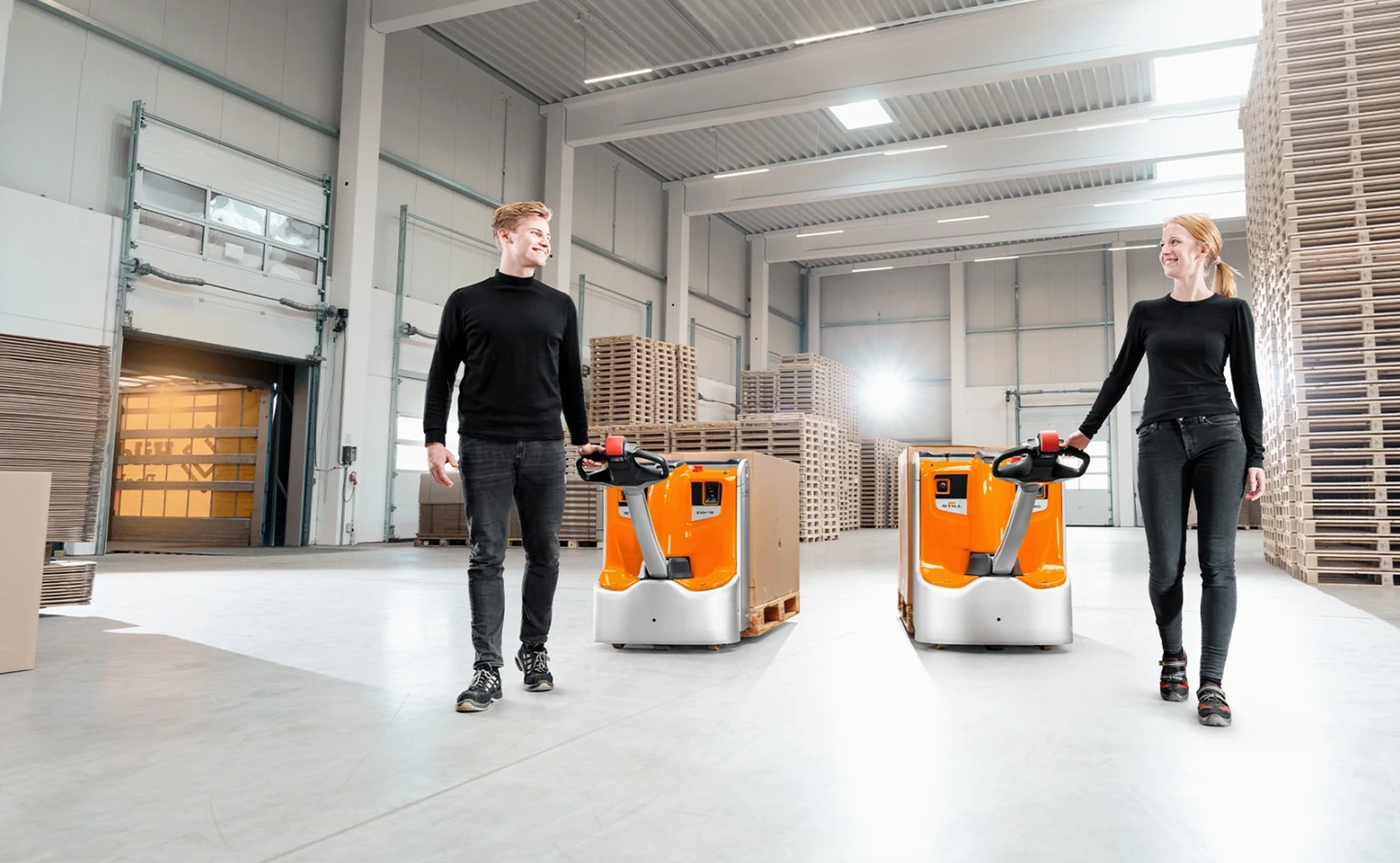

ECH 12C Low Lift Pallet Trucks
- Load capacity: 1200 kg
- Load Center: 600 mm
- Speed: 4,5 km/h
Compact Electric Order Picker for Sale in UAE | Working Height up to 4.6 Metres

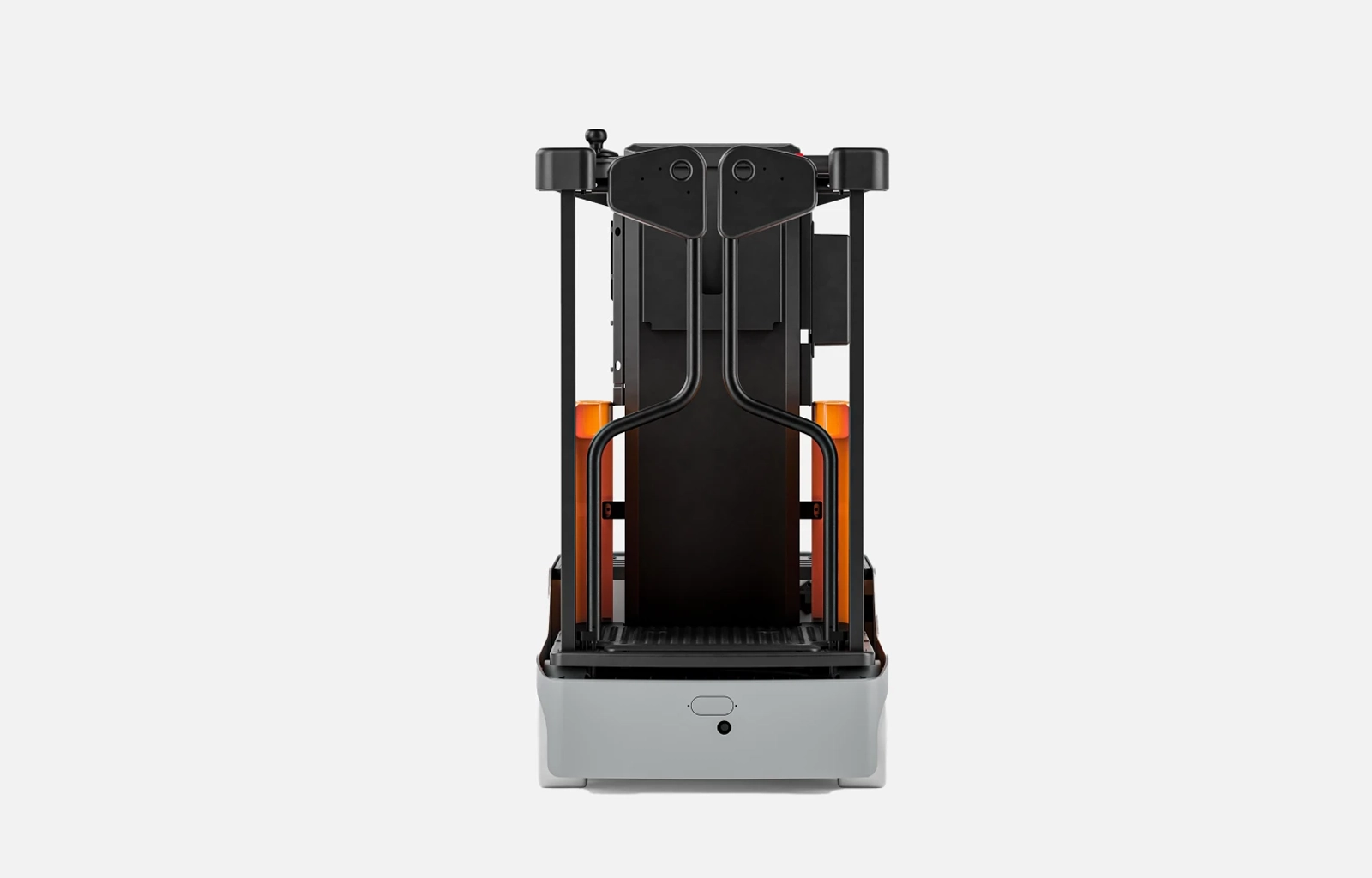

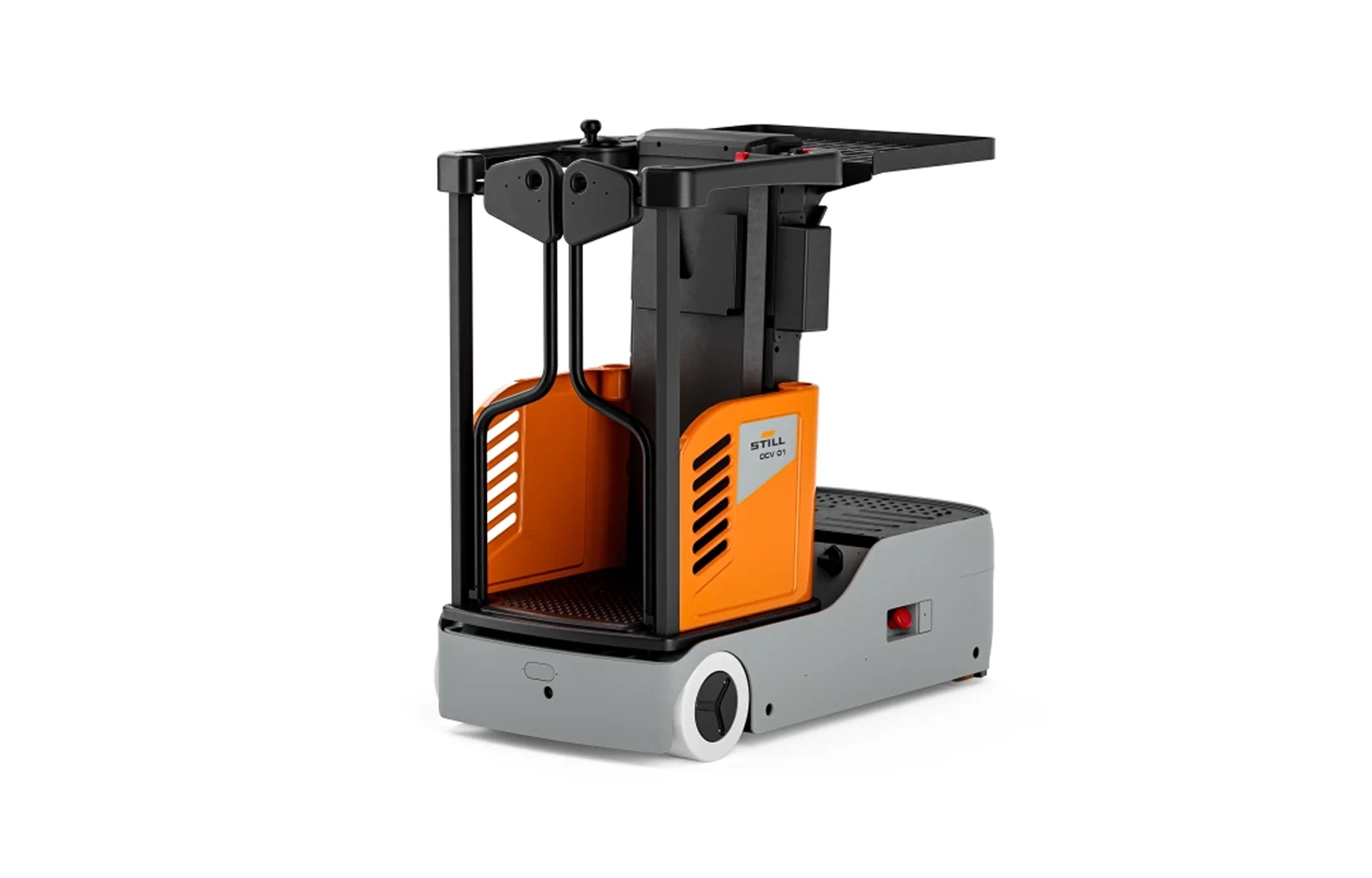

The STILL OCV is a compact vertical order picker for accessing goods in narrow aisles and elevated storage locations. Its stand-on platform raises the operator to a standing height of up to 3 metres, providing an effective working height of 4.6 metres. Compact dimensions make it suitable for small-parts warehouses, retail environments and archives where manoeuvring space is limited.
Carry up to 110 kg on the transport platform and 90 kg on the lifting platform. The lifting table adjusts vertically by up to 50 cm, helping operators position goods at a convenient handling height. An integrated lithium-ion battery and charger support interim charging between tasks.
Explore the electric order picker from Al Shirawi Enterprises and request a quotation for your storage and picking requirements.
| Model | Transport Platform Capacity | Lifting Platform Capacity | Maximum Working Height | Maximum Travel Speed |
|---|---|---|---|---|
| OCV 01 | 110 kg | 90 kg | 4,600 mm | 6.5 km/h |
| Specification | Details |
|---|---|
| Equipment type | Multifunctional vertical order picker |
| Maximum working height | 4,600 mm |
| Maximum operator standing height | 3,000 mm |
| Transport platform capacity | Up to 110 kg |
| Lifting platform capacity | Up to 90 kg |
| Lifting-table adjustment | Up to 500 mm |
| Maximum travel speed | 6.5 km/h |
| Battery technology | Lithium-ion |
| Charger | Integrated |
| Charging connection | 230 V socket |
| Platform access | Low access point |
| Door protection | Automatic locking as the operator platform rises |
| Additional lowering provision | Lowering from floor level by a second person |

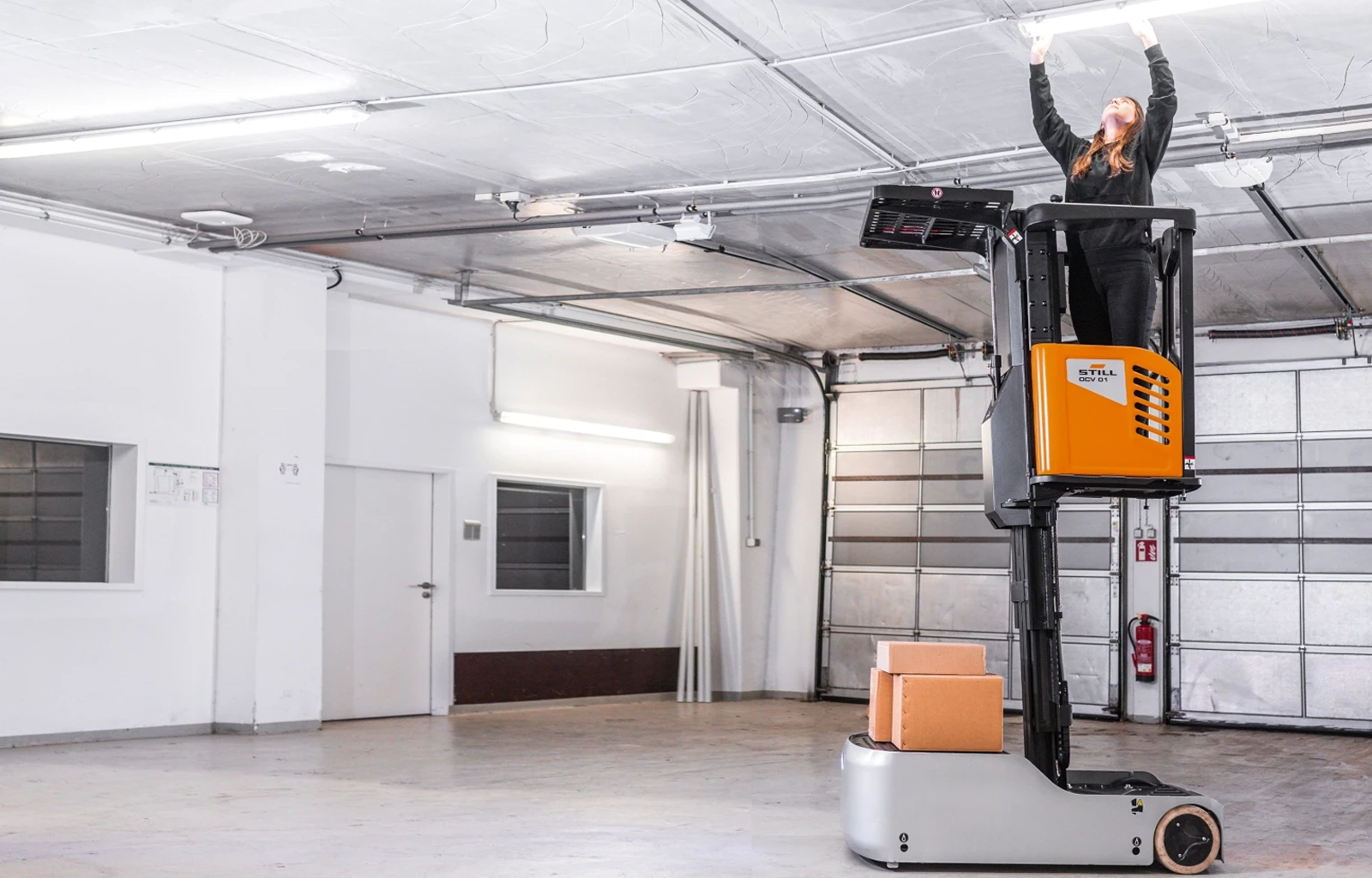

The operator platform rises to a standing height of 3 metres, providing an effective working height of up to 4.6 metres for elevated picking tasks.
Compact dimensions allow manoeuvring in tight spaces, making the truck suitable for narrow aisles and small-parts storage areas.
Raise the lifting table by up to 50 cm to keep goods at a convenient handling position during picking and placement.
The standard lithium-ion battery supports interim charging, while the integrated charger allows charging from a 230 V socket.
Transport up to 110 kg on the storage platform and handle up to 90 kg on the lifting platform.
The operator-platform doors lock automatically as the platform begins to rise.
The STILL Safety Light projects a blue spotlight onto the floor ahead of the truck, providing an early visual warning to others nearby.
Automatic adjustment of maximum travel speed supports controlled manoeuvring when the operator platform is elevated.
A low entry point makes boarding and exiting the truck easier.
The height-adjustable lifting table helps operators maintain convenient access to goods.
The battery and charger are integrated as standard, supporting interim charging during available breaks.
The manufacturer identifies applications in small-parts warehouses, DIY stores, archives, building management and events.
Where the OCV Delivers Best Performance
Small-parts warehouses, DIY stores, archives, building-management facilities and event environments requiring compact access to elevated work areas.
| Requirement | What to Confirm |
|---|---|
| Highest picking location | Required working reach and operator standing height |
| Goods weight | Suitability for each platform’s individual capacity |
| Goods dimensions | Fit, support and positioning on the platforms |
| Aisle layout | Clearance for travel, turning and picking |
| Building access | Doorways and overhead obstructions |
| Charging arrangements | Compatible electrical supply and charging location |
| Operating requirements | Training, site rules and applicable instructions |
| Equipment package | Included features, warranty and support terms |
It is a compact multifunctional order picker that raises the operator to access elevated goods. The manufacturer identifies uses in warehouses, DIY stores, archives, building management and events.
The maximum effective working height is 4.6 metres, with an operator standing height of up to 3 metres.
No. The 4.6-metre figure describes effective working height. The operator’s stand-on platform reaches a standing height of up to 3 metres.
The transport platform carries up to 110 kg, while the lifting platform carries up to 90 kg. These are separate goods-platform ratings.
Request a quotation from Al Shirawi Enterprises, specifying your required working height, goods weights, operating environment and equipment requirements.
The STILL Safety Light projects a blue spotlight ahead of the truck to warn others of its approach.
