1.5 Ton Electric VNA Forklift for Sale in UAE | High-Density Pallet Storage

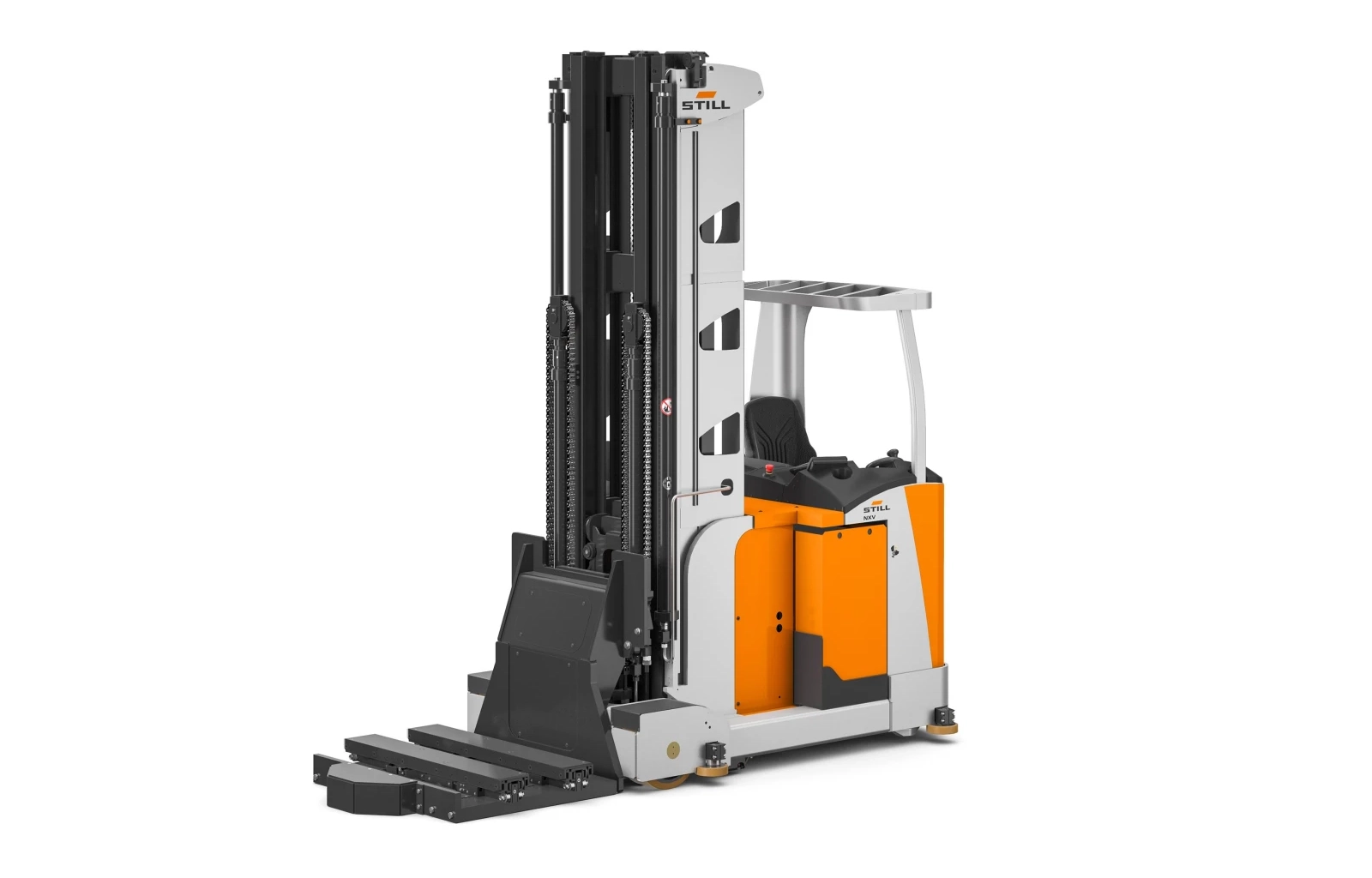

The STILL NXV is a seated electric very narrow aisle truck designed for pallet storage and retrieval where warehouse space is limited. Its compact dimensions and choice of rotating turret head or telescopic fork support precise handling in narrow aisles, helping businesses make better use of available storage space.
With rated capacities of up to 1,500 kg, the range supports demanding high-bay handling applications. The manufacturer describes storage heights of up to 13.8 metres with main and auxiliary lift, depending on configuration. OptiSpeed and Active Load Stabilisation support controlled handling at height.
The standard Joystick 4Plus combines lifting, shifting, turret functions and travel-direction selection in one-handed operation. A large colour display and configurable favourite keys keep operating information and frequently used functions within easy reach.
Contact Al Shirawi Enterprises for a quotation matched to your pallet weights, racking heights and warehouse layout.
| Configuration Shown in Technical Data | Rated Capacity | Main Lift |
|---|---|---|
| Turret head and triplex mast, without additional lift | 1,500 kg | 6,350 mm |
| Turret head and triplex mast, with additional lift | 1,000 kg | 12,850 mm |
| Telescopic fork and telescopic mast, without additional lift | 1,250 kg | 4,200 mm |
| Specification | Details |
|---|---|
| Equipment type | Very narrow aisle truck |
| Drive | Electric |
| Operator position | Seated |
| Maximum rated capacity across the range | Up to 1,500 kg |
| Load centre | 600 mm |
| Maximum travel speed | 10.5 km/h |
| Battery voltage listed by supplier | 48 V |
| Load-handling configurations | Rotating turret head or telescopic fork |
| Operator control | Joystick 4Plus |
| Information display | STILL Easy Control colour display |
| Tyres in illustrated configurations | Polyurethane |
| Lithium-ion technology | Available |
Compact dimensions and a rotating turret head or telescopic fork allow precise goods handling where aisle space is restricted.
Storage heights of up to 13.8 metres with main and auxiliary lift support high-density pallet storage. The achievable height depends on the selected configuration.
Choose a configuration suited to your pallet weights and storage requirements. Capacity varies with the mast and load-handling arrangement.
The standard Joystick 4Plus allows lifting, shifting, turret functions and travel-direction selection without moving between separate controls.
The STILL Easy Control panel presents relevant truck information on a large colour display within the operator’s field of vision.
Active Load Stabilisation supports high-level handling and helps maintain consistent storage depths. Confirm the assistance systems included in your equipment package.
Optional camera systems and a cross-line laser between the forks help operators position loads precisely.
The lithium-ion version supports opportunity charging, allowing charging during available operating breaks.
One-handed controls and configurable favourite keys allow operators to adapt the workstation to their requirements.
OptiSpeed and Active Load Stabilisation support handling performance in high-rack applications.
Turret-head and telescopic-fork versions provide different approaches to very narrow aisle storage and retrieval.
The supplier lists iGo pilot safety, Safety Light and positioning aids. Confirm the included systems and optional equipment in your quotation.
Where the NXV Delivers Best Performance

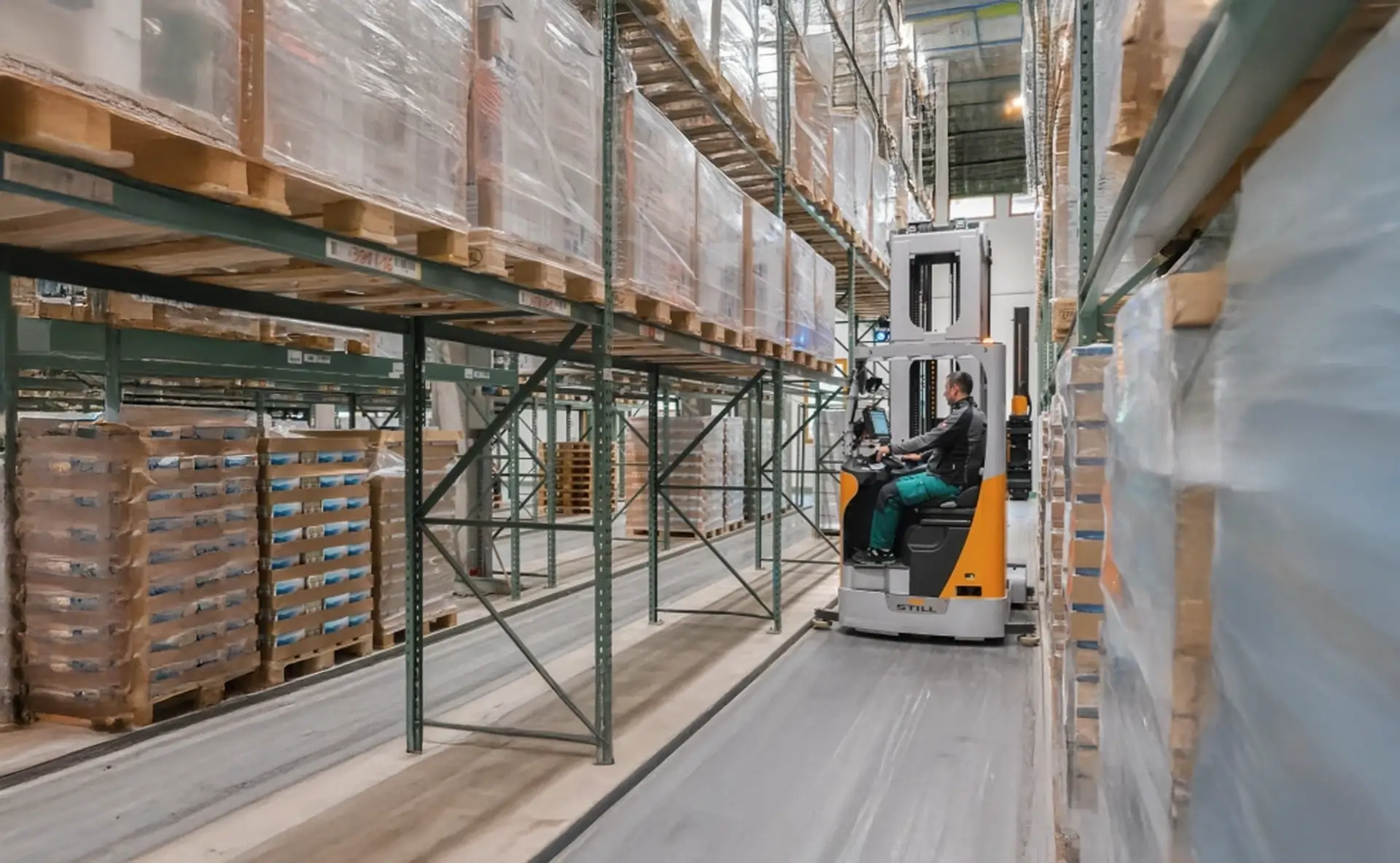

High-density warehouses and pallet-storage facilities with very narrow aisles, high racking and limited floor space.
| Configuration or Option | Selection Starting Point |
|---|---|
| Turret-head version | Operations requiring rotating load-handling capability |
| Telescopic-fork version | Storage layouts suited to telescopic fork handling |
| Additional-lift configuration | Applications requiring the corresponding high-level handling arrangement |
| Lithium-ion version | Operations seeking opportunity-charging capability |
| Camera or cross-line laser | Applications requiring additional load-positioning assistance |
It is a seated electric very narrow aisle truck for high-density pallet storage and retrieval. The range offers rotating turret-head and telescopic-fork configurations.
The range offers rated capacities of up to 1,500 kg. The manufacturer’s technical data also shows 1,000 kg and 1,250 kg configurations, so the selected specification must be checked.
The manufacturer’s headline rated lift is 12,850 mm, while its product description gives storage heights of up to 13.8 metres with the relevant lift arrangement. Confirm the main lift, auxiliary lift and required storage height in your quotation.
The listed maximum travel speed is 10.5 km/h.
It is the standard control for one-handed operation of lifting, shifting, turret functions and travel-direction selection.
Yes. The supplier lists a lithium-ion version with opportunity-charging capability.
Request a tailored quotation from Al Shirawi Enterprises, specifying the load-handling configuration, required capacity, storage height, battery choice and preferred options.
