Electric VNA Forklift for Sale in UAE | High-Bay Storage and Order Picking

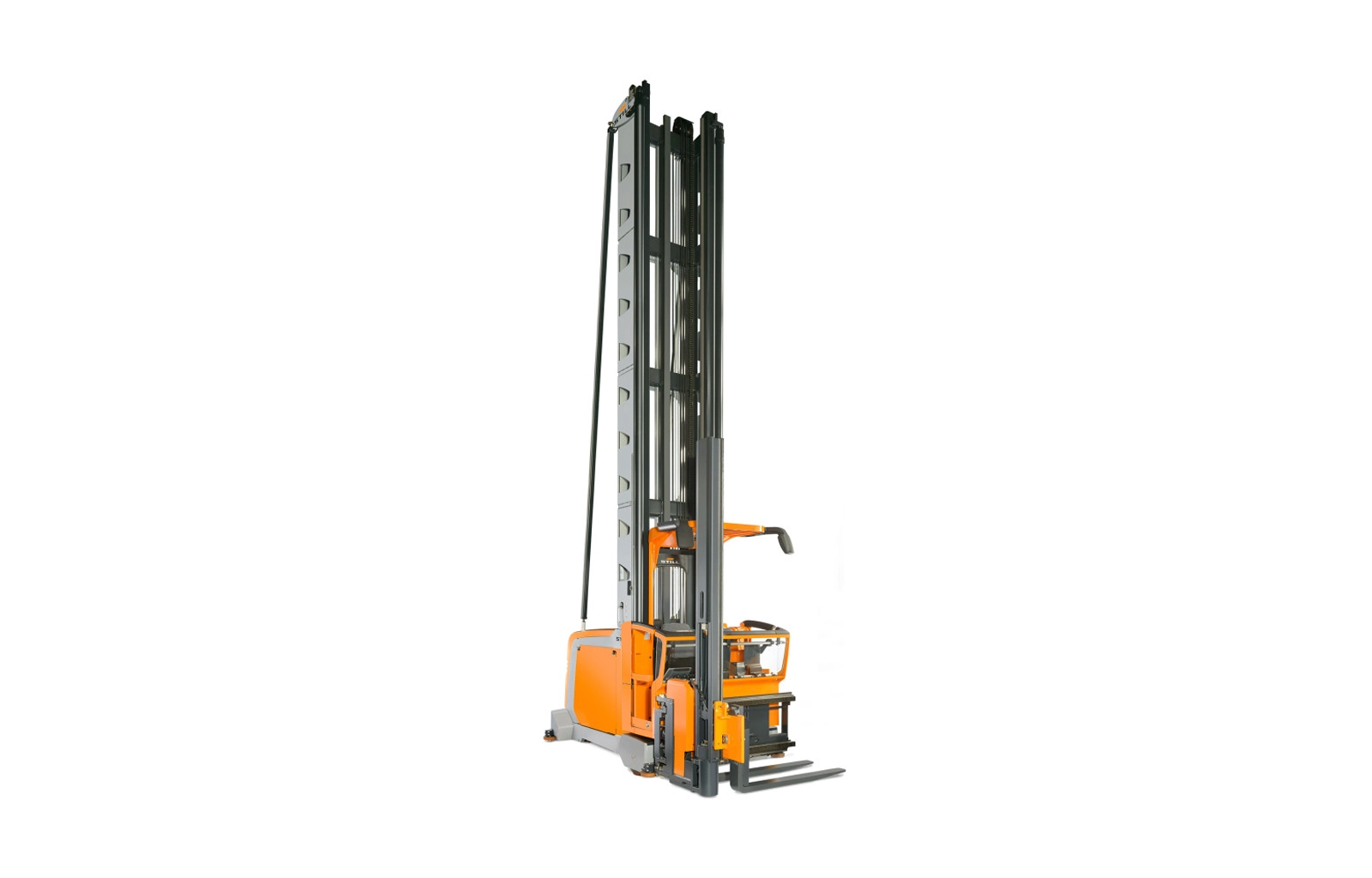

The STILL MX-X is a man-up very narrow aisle truck designed for high-density warehouse storage and high-bay order picking. Configurable dimensions, performance packages and technical features allow the truck to be matched to different warehouse requirements. The manufacturer describes lift heights of up to approximately 18 metres and travel speeds of up to 14 km/h.
A spacious, adaptable operator cabin combines intuitive controls with assistance systems for storage, retrieval and picking. Active Load Stabilisation reduces mast oscillations, while Active Floor Compensation compensates for uneven ground during travel.
Explore the range from Al Shirawi Enterprises and request a quotation matched to your racking layout, load weights and required storage height.
| Model | Listed Maximum Capacity | Listed Maximum Lift Height | Travel Speed | Battery Voltage |
|---|---|---|---|---|
| MX-X / Li-Ion | 1,500 kg | 18,110 mm | 14 km/h | 80 V |
| MX-X iGo | 1,400 kg | 14,000 mm | Confirm configuration | Confirm configuration |
| Specification | Details |
|---|---|
| Equipment type | Man-up very narrow aisle truck |
| Drive | Electric |
| Operator arrangement | Stand-on/rider seated, depending on configuration |
| Rated capacity | Up to 1,500 kg; configuration-dependent |
| Load centre | 600 mm |
| Maximum listed travel speed | 14 km/h |
| Load-handling configurations | Turret head or telescopic fork unit |
| Battery technologies | Lead-acid and lithium-ion |
| Battery voltage options | 48 V and 80 V |
| Operator interface | Compact control panel with colour display |
| Efficiency programme | Blue-Q |
| Guidance configurations | Mechanical and inductive guidance shown in technical data |
Lift heights of approximately 18 metres support the use of tall warehouse racking and high-density storage layouts.
Performance packages, truck dimensions and technical features can be specified around individual application requirements.
Active Load Stabilisation reduces mast oscillations to support faster storage and retrieval processes. Confirm its inclusion in the selected performance package.
Active Floor Compensation compensates for uneven ground during travel. The supplier describes it as an alternative to floor renovation for applicable installations.

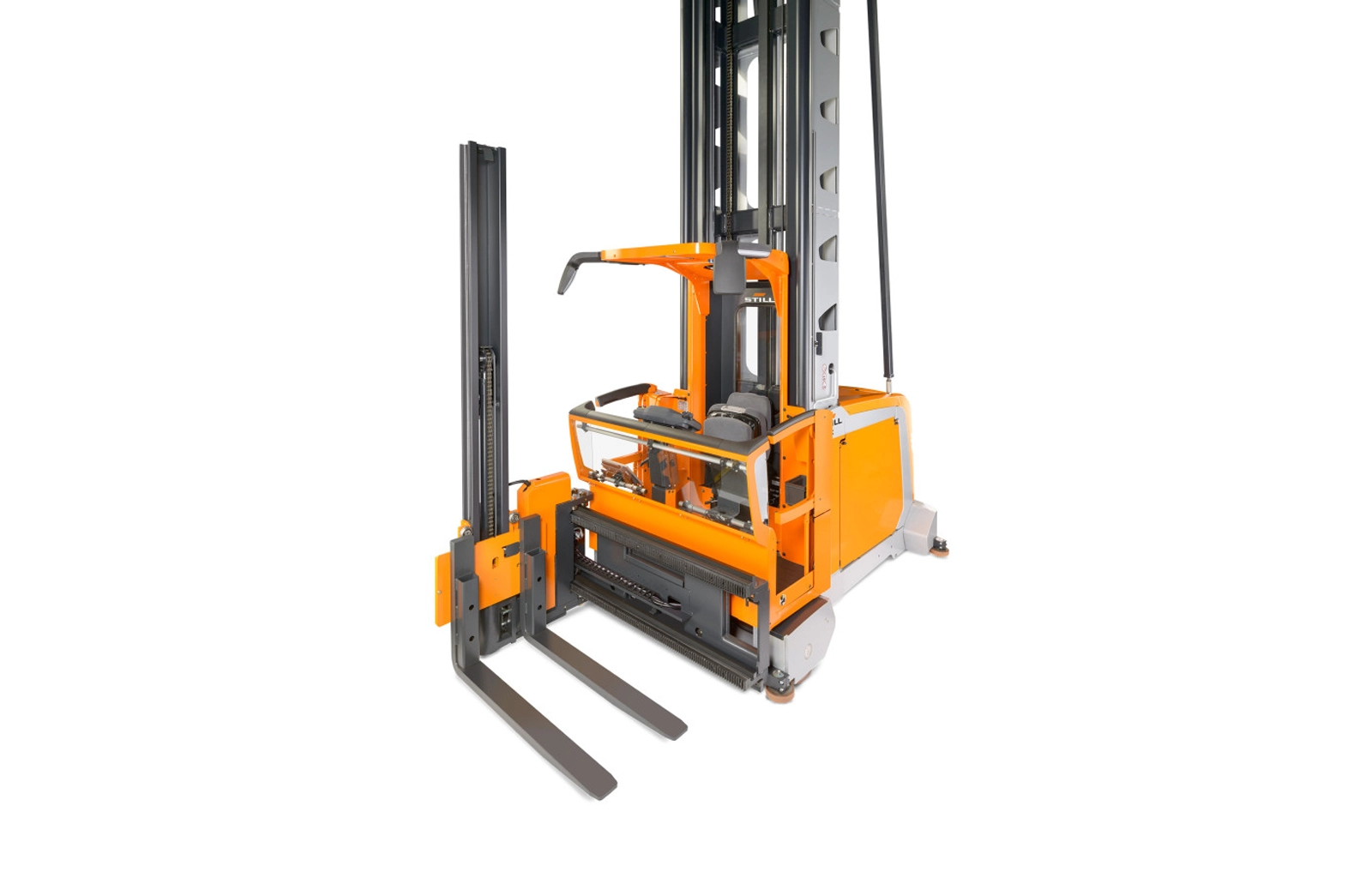

The short distance between the operator cabin and load carrier supports ergonomic picking, while the turret-head mechanism enables shorter picking distances.
A compact control panel combines a colour display, visual instructions and individually defined favourites for intuitive operation.
Lead-acid and lithium-ion batteries are available across 48 V and 80 V configurations, supporting different operating requirements.
Sensor-controlled two-hand operation and electronic battery-lock monitoring support operational safety. A shock-absorbing cabin floor adds operator comfort.
The cabin can be configured with multifunctional bars and holders for small load carriers, supporting an organised picking workspace.
The Blue-Q efficiency programme provides an energy-saving operating option.
The product information describes Rescue Alarm, Safety Light and the optional iGo pilot safety function. Confirm the features supplied with your selected truck.
Turret-head and telescopic-fork configurations provide different specification options within the range.
Where the MX-X Delivers Best Performance

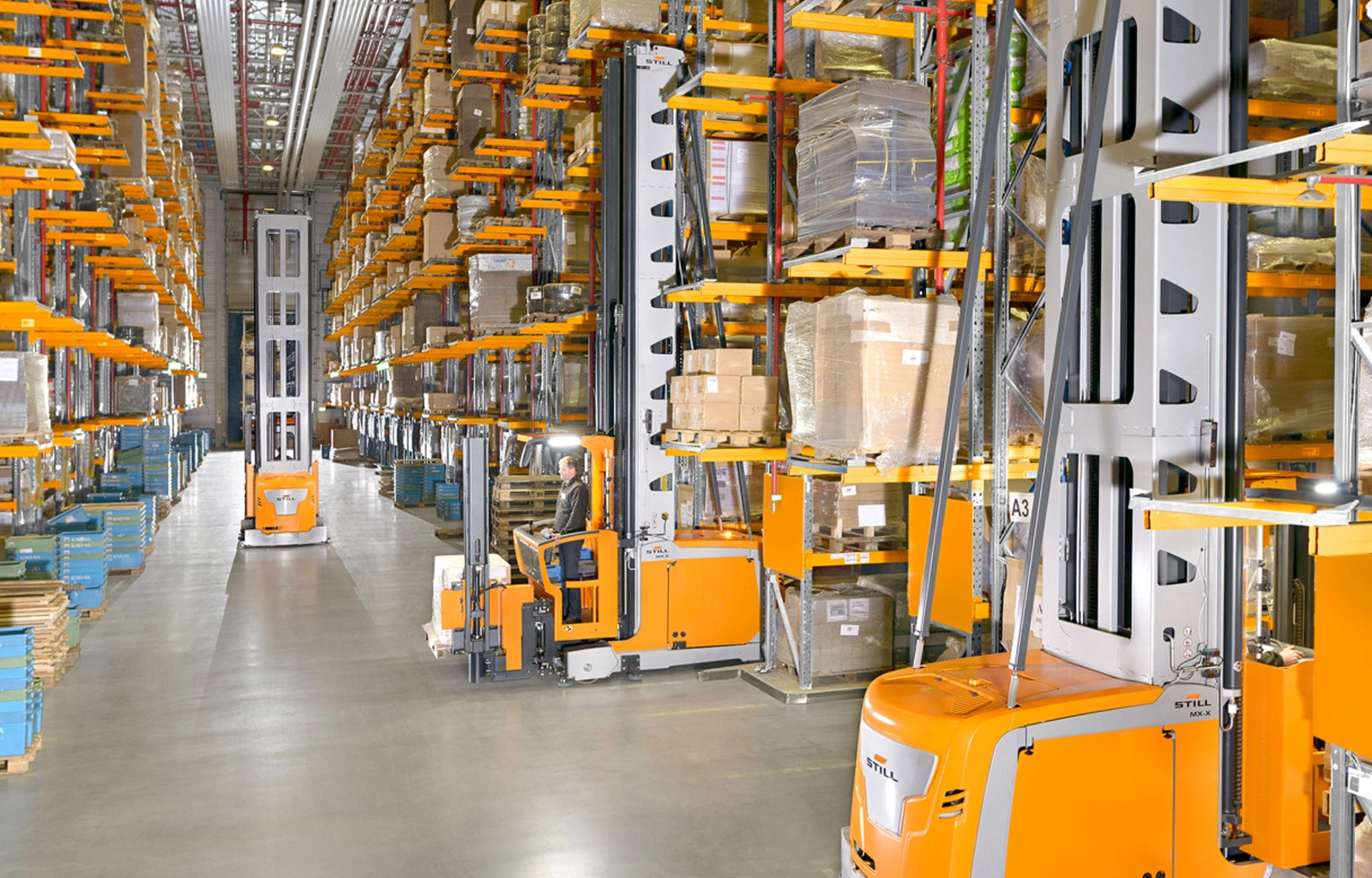

High-density warehouses requiring very narrow aisle operation, high-bay storage, pallet retrieval and elevated order picking.
| Configuration | Selection Starting Point |
|---|---|
| Turret-head version | Operations specifying turret-head load handling |
| Telescopic-fork version | Operations specifying a telescopic fork unit |
| Lithium-ion version | Operations selecting lithium-ion battery technology |
| Mechanical guidance | Warehouses specifying a mechanically guided installation |
| Inductive guidance | Warehouses specifying inductive guidance |
| MX-X iGo | A separately specified automated configuration |
It is a man-up very narrow aisle truck for high-density warehouse storage and high-bay order picking. Its dimensions and technical features can be configured around application requirements.
The technical data shows an elevated operator standing position alongside the load-handling system, allowing the operator to work at height.
The supplier lists up to 1,500 kg. The manufacturer’s technical data shows that some configurations have lower rated capacities, so the selected specification must be checked.
There is no single aisle-width figure for every configuration. The technical data lists different working aisle widths for different truck arrangements. Confirm the required clearance against your selected truck and load.
It is a system that reduces mast oscillations during handling, supporting faster storage and retrieval.
Request a tailored quotation from Al Shirawi Enterprises, specifying load weight, storage height, aisle dimensions, guidance requirements, battery choice and preferred options.
