Multifunction Electric Tow Tractor for Sale in UAE | Towing, Lifting and Production Supply

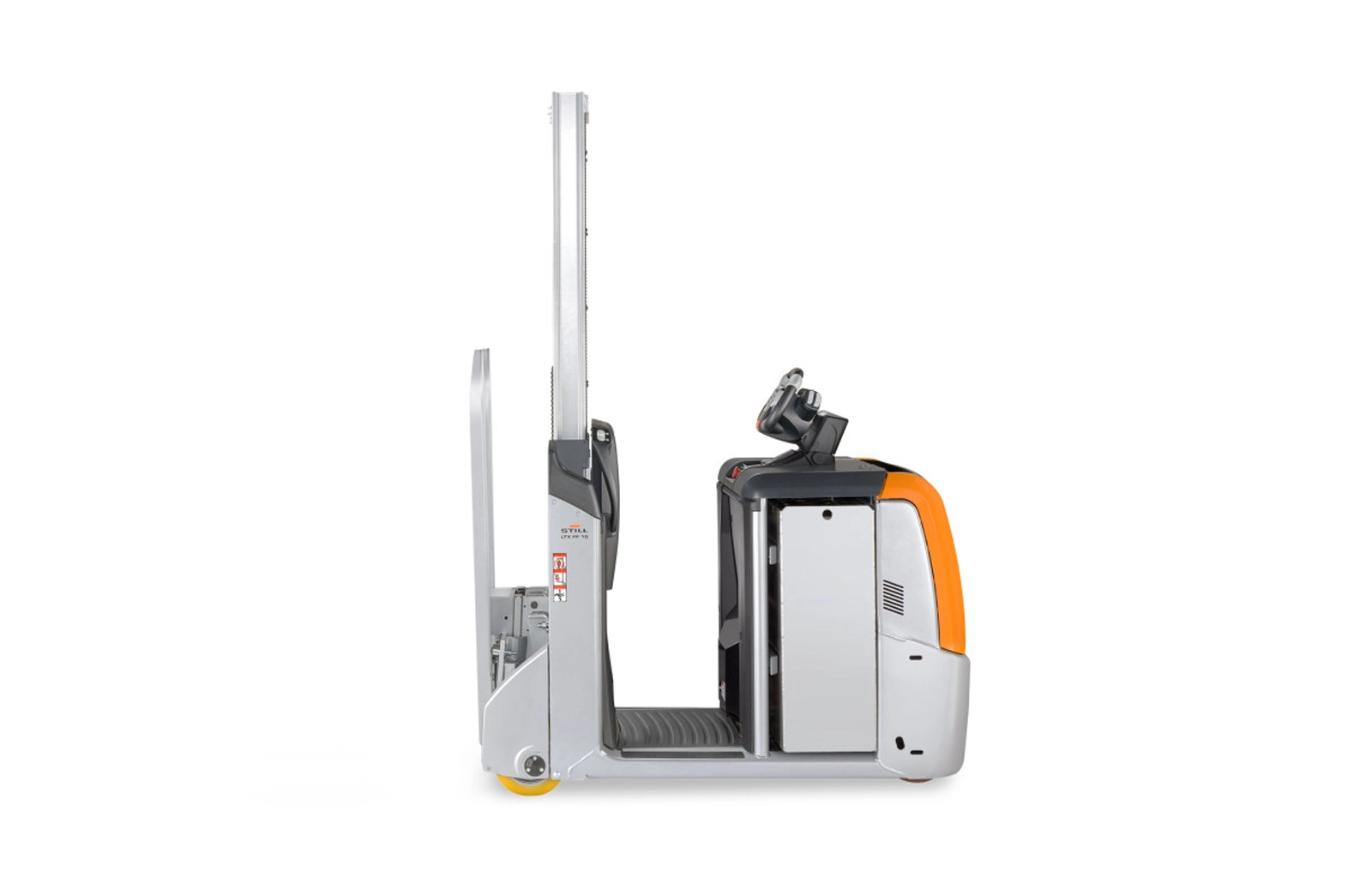

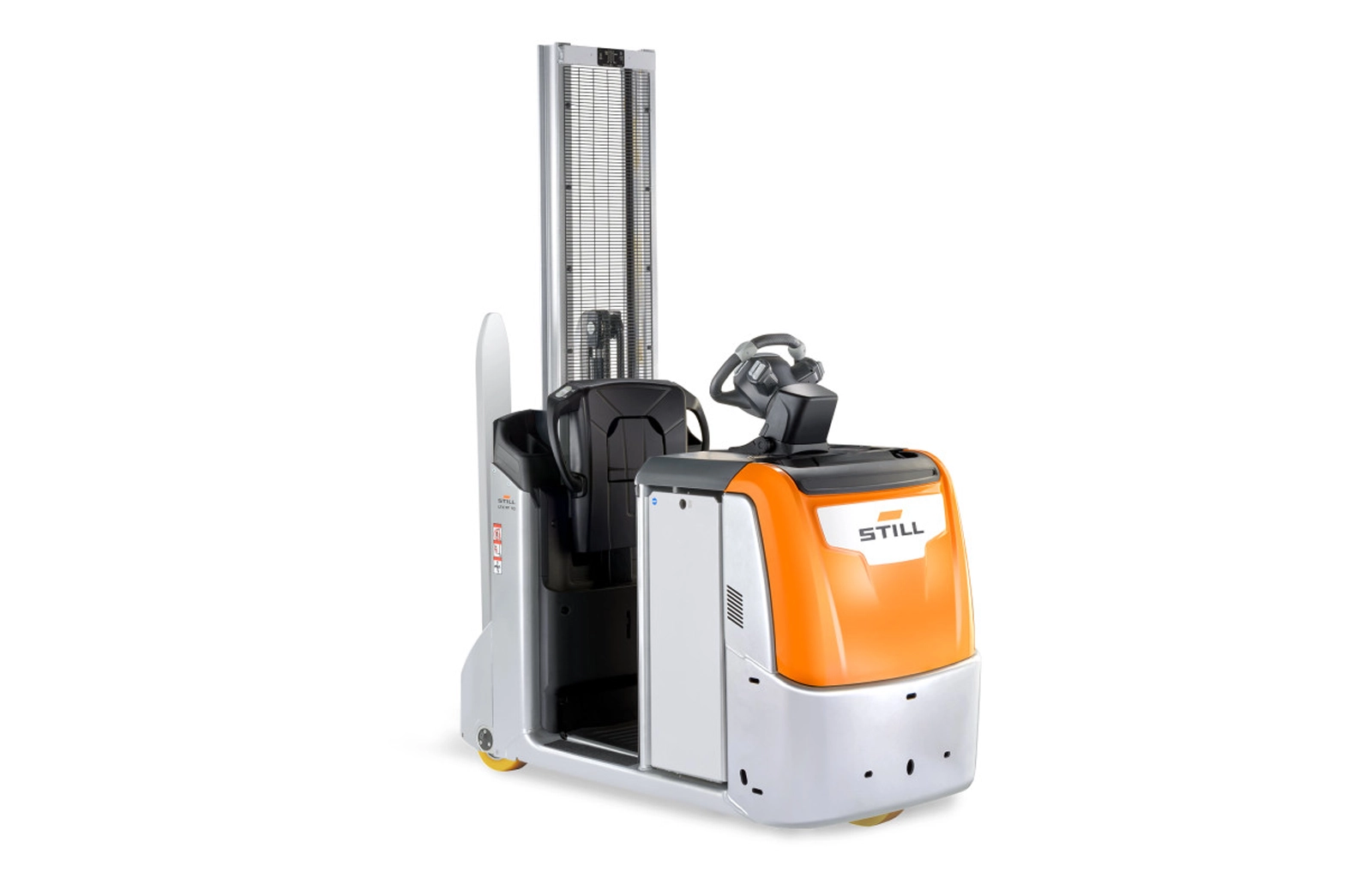

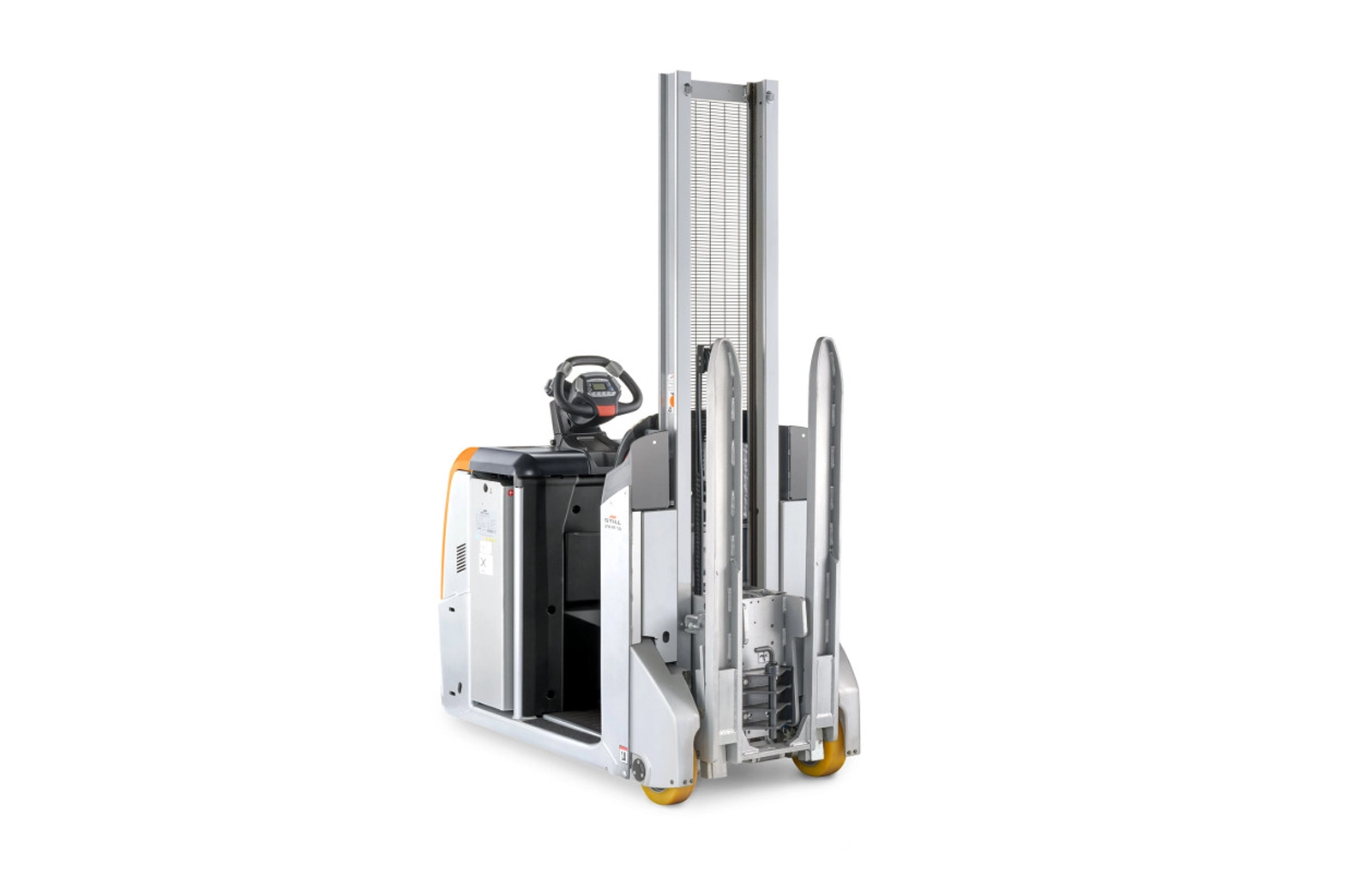

The STILL LTX-FF 05–10 combines an electric tow tractor and a lifting truck in one compact vehicle. Designed for production supply, it handles trailer towing, pallet lifting and tugger-train tasks without requiring a separate vehicle for each function. The range offers towing capacity of up to 5 tonnes and lifting capacity of up to 1 tonne, depending on the model.
Its folding cantilever forks deploy at the push of a button, allowing operators to switch between towing and pallet-handling tasks. The standard fork-tilt function supports load retention, while the compact folded arrangement helps manoeuvring in restricted working areas.
The STILL Easy Drive steering wheel provides intuitive operation without changing grip. A low entry, damped operator platform and folding seat support frequent stops and longer transport journeys.
Contact Al Shirawi Enterprises for a quotation matched to your pallet loads, trailer combination and production-supply routes.
| Model | Rated Lifting Capacity | Trailer Towing Capacity | Forward Speed, Laden / Unladen | Battery Voltage |
|---|---|---|---|---|
| LTX-FF 05 / Li-Ion | 500 kg | 5,000 kg | 7.5 / 13 km/h | 24 V |
| LTX-FF 10 / Li-Ion | 1,000 kg | 5,000 kg | 7.5 / 13 km/h | 24 V |
| Specification | LTX-FF 05 | LTX-FF 10 |
|---|---|---|
| Drive / operation | Electric, stand-on | Electric, stand-on |
| Rated lifting capacity | 500 kg | 1,000 kg |
| Trailer load | 5,000 kg | 5,000 kg |
| Standard listed load centre | 500 mm | 500 mm |
| Rated drawbar pull | 1,000 N | 1,000 N |
| Overall width | 800 mm | 800 mm |
| Turning radius | 1,516 mm | 1,653 mm |
| Forward speed, laden/unladen | 7.5 / 13 km/h | 7.5 / 13 km/h |
| Reverse speed, laden/unladen | 4 / 4 km/h | 4 / 4 km/h |
| Standard fork dimensions, thickness / width / length | 45 / 110 / 990 mm | 45 / 110 / 990 mm |
| Lowered fork height | 55 mm | 55 mm |
| Fork-carriage tilt, forward/backward | 0° / 5° | 0° / 5° |
| Tyres | Polyurethane | Polyurethane |
Combine trailer transport, pallet handling and production supply using one multifunction truck.
Both models have a listed trailer load capacity of 5,000 kg, supporting tugger-train and internal transport applications.
Choose a 500 kg or 1,000 kg lifting configuration to match your pallet-handling requirements.
The patented folding mechanism allows the cantilever forks to be deployed when needed and folded for compact manoeuvring.
The STILL Easy Drive steering wheel brings operating functions together without requiring the operator to change grip.
A sprung and damped operator platform, low entry and folding seat support different working patterns. An adjustable pneumatically damped platform is also available as an option.
Steering-angle-dependent Curve Speed Control adjusts travel speed during turns.
Optional pedestrian controls support sensitive positioning during coupling and uncoupling tasks.
Combined towing and lifting capability supports production-supply tasks involving both trailers and pallets.
A modern three-phase AC drive motor provides reliable performance with low maintenance requirements.
Lithium-ion technology is available within the range. Confirm the battery and charging package for your selected truck.
Optional LED daytime running lights, warning lights and collision-protection equipment provide additional specification choices.
Where the LTX-FF 05–10 Delivers Best Performance
Production facilities and internal logistics operations requiring trailer towing, pallet lifting and tugger-train supply from one compact vehicle.
| Configuration or Option | Selection Starting Point |
|---|---|
| LTX-FF 05 | Lifting requirements up to 500 kg and trailer towing up to 5,000 kg |
| LTX-FF 10 | Lifting requirements up to 1,000 kg and trailer towing up to 5,000 kg |
| Lithium-ion version | Operations specifying lithium-ion battery technology |
| Optional pneumatically damped platform | Applications requiring additional operator cushioning |
| Optional pedestrian operation | Suitable for coupling and positioning tasks |
| Optional lighting and collision protection | For site-specific visibility and protection requirements |
It is a multifunction electric tractor with folding forks, combining towing, lifting and tugger-train production supply.
The smaller model has a rated lifting capacity of 500 kg, while the larger model lifts 1,000 kg. Both have a listed trailer load capacity of 5,000 kg.
It combines both functions in one vehicle. Whether it can replace separate equipment depends on your load weights, lifting requirements, routes and workflow.
Yes. Lithium-ion versions are included in the manufacturer’s range. Confirm battery capacity and charger requirements in your quotation.
The manufacturer describes a folding seat for additional comfort on longer journeys, alongside a sprung and damped standing platform.
Request a tailored quotation from Al Shirawi Enterprises, specifying lifting capacity, required lift height, trailer details, battery requirements and preferred options.
