ECH 12C Low Lift Pallet Trucks
- Load capacity: 1200 kg
- Load Center: 600 mm
- Speed: 4,5 km/h

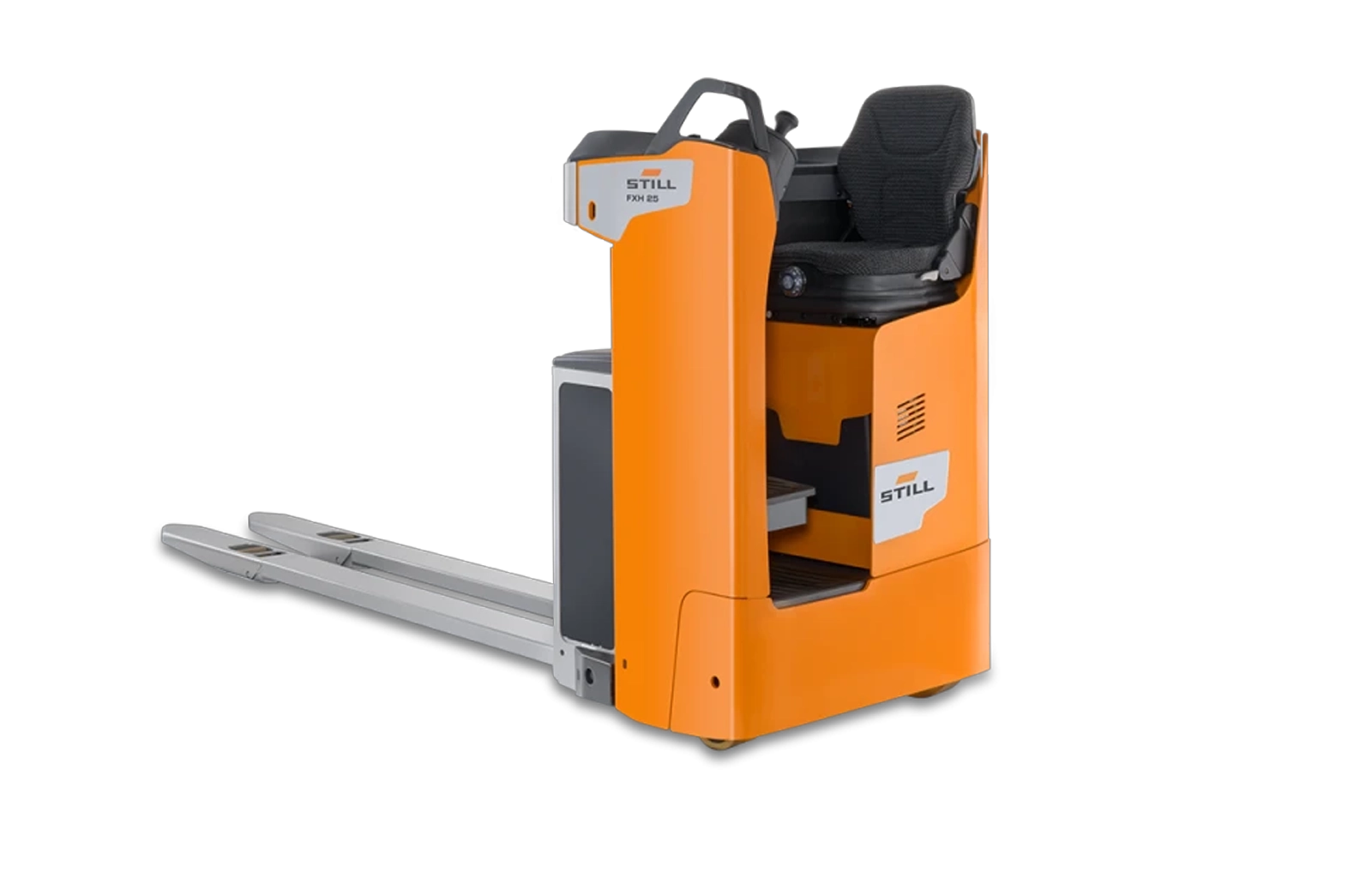

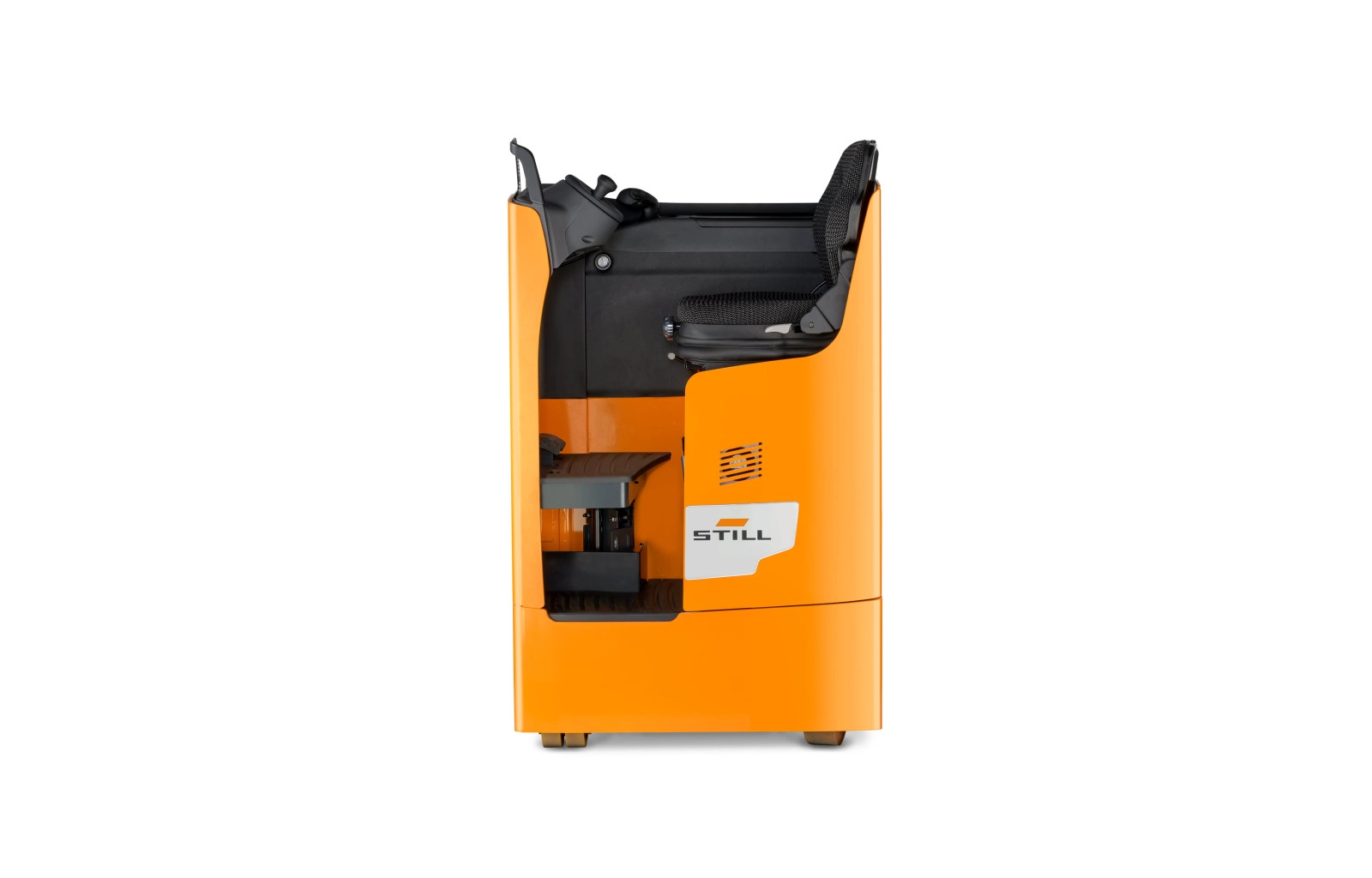

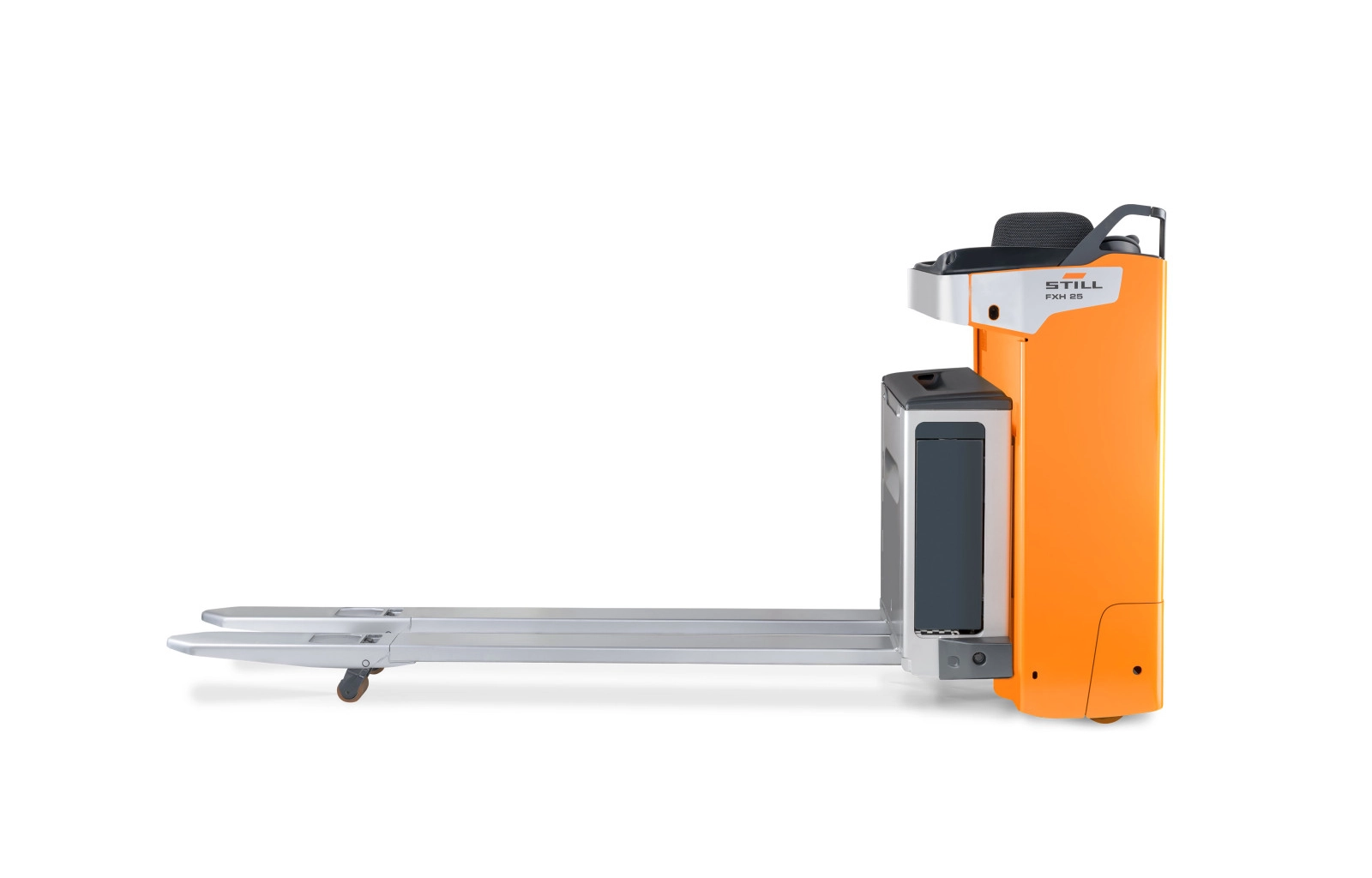

2–2.5 Ton Ride-On Electric Pallet Truck for Sale in UAE
Designed for demanding horizontal pallet movement, the range combines load capacities of 2,000–2,500 kg with travel speeds of up to 12 km/h. A spacious seated workstation, sprung comfort seat, and height-adjustable footplate support comfortable operation, while intuitive joystick controls enable precise load handling.
Contact Al Shirawi Enterprises for a quotation matched to your pallet weights, transport routes and operating requirements.
| Specification | Details |
|---|---|
| Equipment Type | Electric Low Lift Pallet Truck |
| Operator Arrangement | Seated Rider Operation |
| Load Capacity Range | 2,000–2,500 kg |
| Listed Lift Height | 125 mm |
| Listed Maximum Travel Speed | 12 km/h |
| Battery Voltage | 24 V |
| Maximum Listed Battery Capacity | Up to 625 Ah, depending on configuration |
| Battery Technology | Conventional Battery Configuration or Optional Lithium-Ion Technology |
| Operator Workstation | Spacious Compartment with Sprung Comfort Seat |
| Footplate | Height-Adjustable |
| Steering | Electric Steering |
| Load Controls | Joystick 4Plus |
| Travel Controls | Single- or Dual-Pedal Arrangement |
| Driving Programmes | ECO, BOOST, and Blue-Q |
| Cornering Assistance | Curve Speed Control |
| Battery Change | Standard Lateral Battery Change |
| Display | Colour Display Showing Operating Information and Service Reminders |
Choose between 2,000 kg and 2,500 kg models to match your pallet-handling requirements.
The stand-on platform and travel speeds of up to 14 km/h support pallet movement over longer warehouse distances.
The STILL Easy Drive handlebar includes an integrated display and intuitive controls for everyday operation.
The optional PLUS platform suspension offers three adjustment stages, allowing operators to select their preferred level of cushioning.
The five-wheel chassis and sprung support wheels support stability and traction on inclines. The permitted load and gradient must still be checked for the actual route.
Smart Load Protect reduces speed in specified handling situations, including when the initial lift is not raised or when entering a lorry.
Curve Speed Control automatically adapts travel speed to the steering angle.
The optional Feet Detection System allows the truck to move off only when the operator’s feet are within the vehicle contour.
A choice of load capacities, battery technologies, pedal arrangements, and selected options helps match equipment to different handling requirements.
Selectable driving programmes and Blue-Q efficiency mode support energy management during daily operation.
The sprung comfort seat, adjustable footplate, and intuitive controls support a comfortable seated working position.
Electric steering and joystick-operated lifting provide responsive control during pallet movement.
Accessible maintenance points and lateral battery change support routine equipment care and battery management.
Where the FXH 20–25 Delivers Best Performance
The following are recommended application starting points based on the range’s load capacities, seated workstation, travel speed, and battery options.
| Configuration or Option | Selection Starting Point |
|---|---|
| FXH 20 | Pallet-handling requirements up to 2,000 kg |
| FXH 25 | Pallet-handling requirements up to 2,500 kg |
| Lithium-Ion Version | Operations where interim charging fits the working schedule |
| Conventional Battery Configuration | Operations with an established charging and battery-management arrangement |
| Single- or Dual-Pedal Controls | Matching travel controls to operating preferences and workflow |
| Optional Automatic Counterbalance | Applications involving uneven surfaces, subject to assessment |
| Access-Authorisation System | Restricting equipment use to authorised operators |
The range offers two capacities: 2,000 kg for the smaller model and 2,500 kg for the larger model. Select the truck according to your maximum load and operating requirements.
Both models have a listed maximum travel speed of 12 km/h.
Yes. Optional lithium-ion technology supports interim charging during suitable breaks in the operating schedule.
Both models use a 24 V battery system. The manufacturer lists battery capacities of up to 625 Ah, depending on configuration.
Lifting is operated using the standard Joystick 4Plus, allowing the operator to control load movement without repeatedly changing hands.
Request a tailored quotation from Al Shirawi Enterprises, specifying load capacity, pallet dimensions, battery requirements, platform suspension and preferred options.
