EXV-SF 14 – 20  High Lift Stacker Trucks

EXV-SF 14 – 20  High Lift Stacker Trucks

Stand-On High Lift Stacking for Fast, High-Rack Pallet Handling

  • Load Capacity: 1,400 kg to 2,000 kg, depending on model
  • Max Lift Height: Up to 6,066 mm
  • Travel Speed: Up to 10 km/h
  • Battery Voltage: 24 V

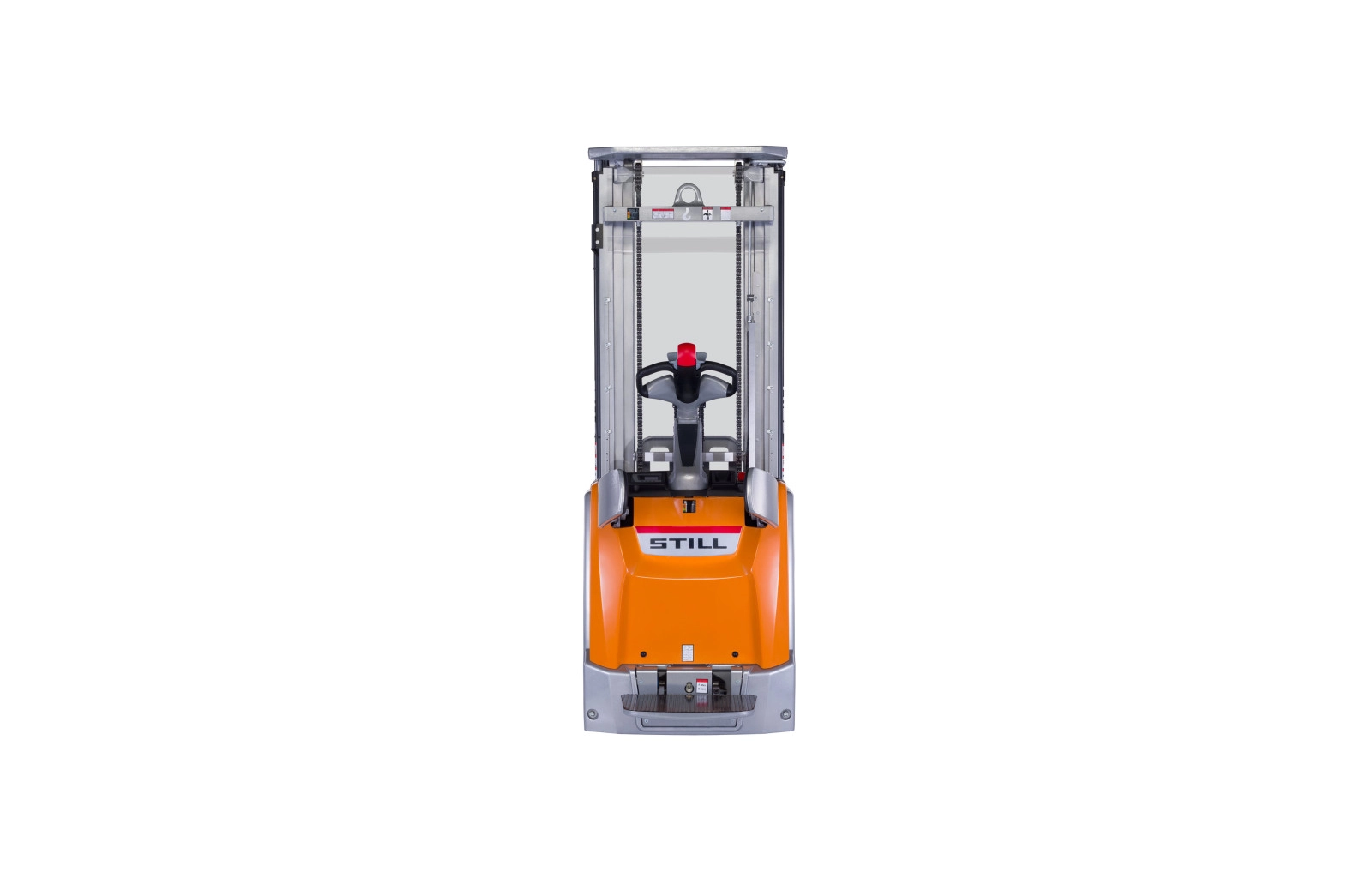

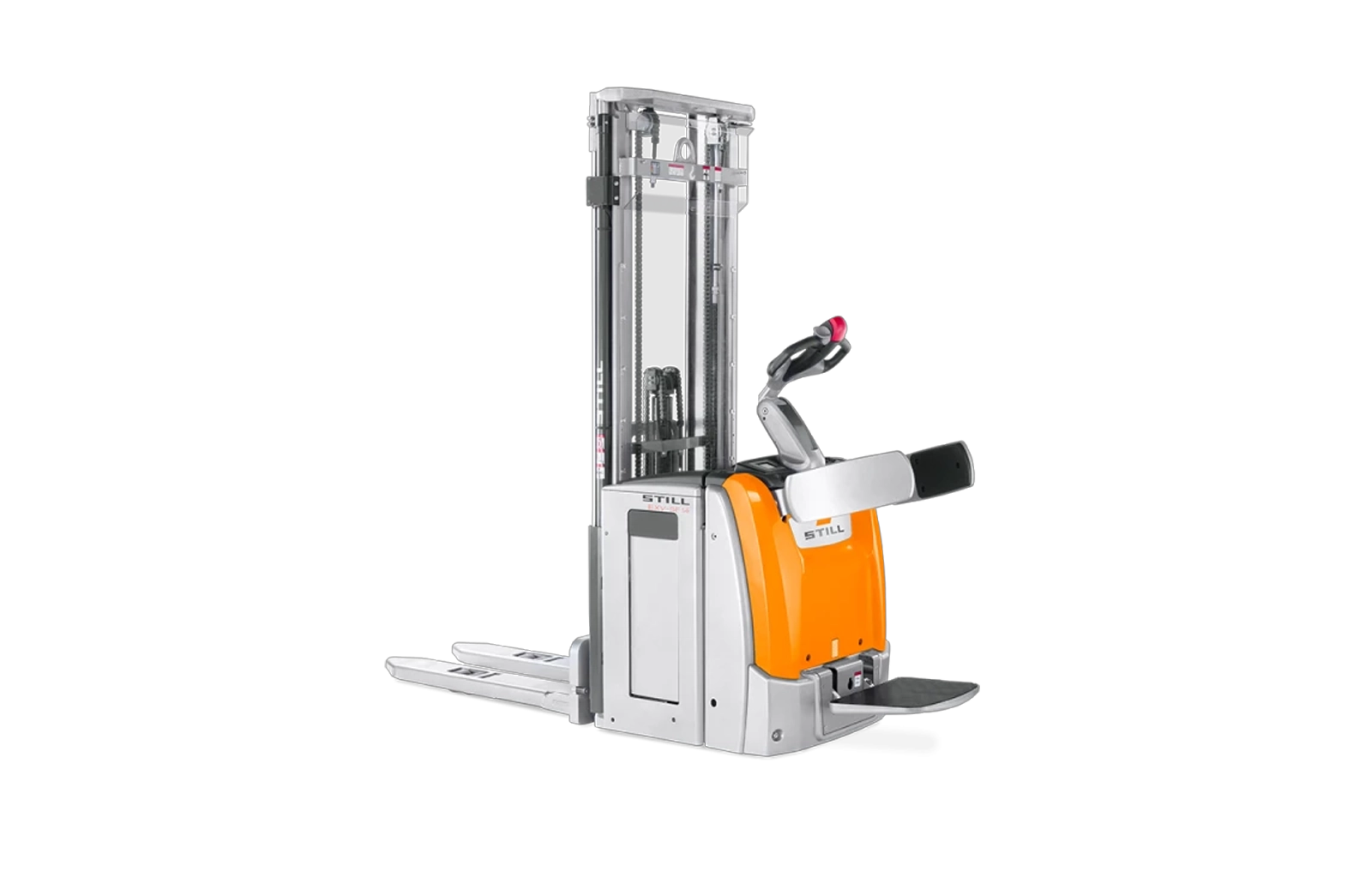

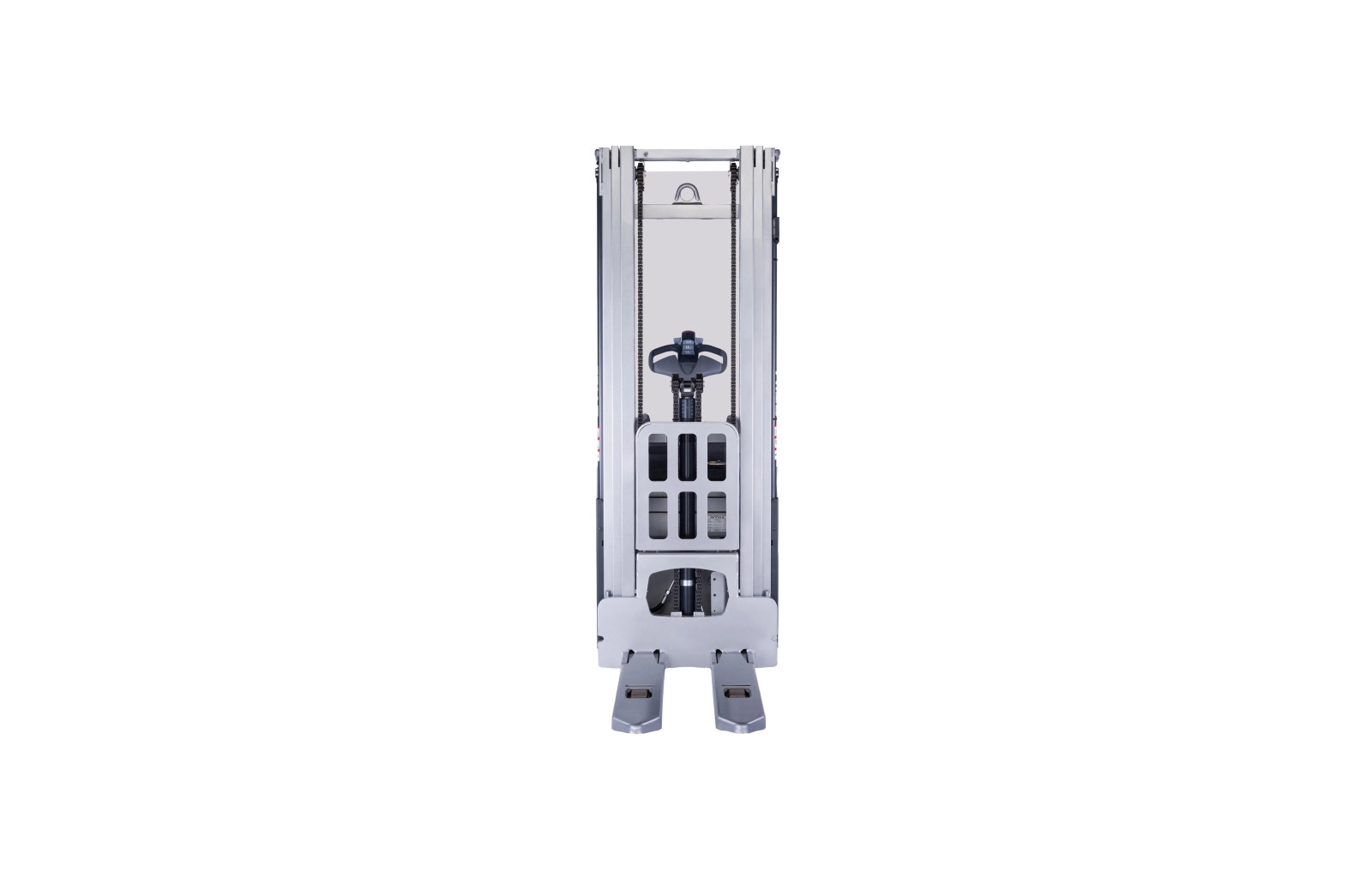

The STILL EXV-SF 14–20 is an electric stand-on high lift stacker truck for moving and stacking pallets at speed. Three capacity classes cover 1,400 kg, 1,600 kg and 2,000 kg, with lift heights of up to 6,066 mm on the 14 and 16 models and 4,026 mm on the 20, and a travel speed of up to 10 km/h. Precise electric steering, sensitive proportional valve control and a clear colour display keep handling accurate, while straightforward battery change, optionally from the side of the truck, keeps it available. Supplied in the UAE by Al Shirawi Enterprises, the authorised STILL dealer in Dubai.

Contact Al Shirawi Enterprises for a quotation matched to your pallet weights, rack heights and shift pattern.

Specification Details
Equipment Type Electric Stand-On High Lift Stacker Truck
Load Capacity EXV-SF 14: 1,400 kg · EXV-SF 16: 1,600 kg · EXV-SF 20: 2,000 kg
Load Centre 600 mm
Maximum Lift Height 6,066 mm (EXV-SF 14 and 16) · 4,026 mm (EXV-SF 20)
Maximum Travel Speed 10 km/h
Battery Voltage 24 V
Battery Technology Lithium-Ion, with straightforward battery change, optionally from the side of the truck
Operator Position Stand-On Platform
Rated Power Traction Motor Approx. 2.3 kW; Hoist Motor Approx. 3.2 kW
Steering and Controls Precise, Intuitive Electric Steering; Sensitive Proportional Valve Control
Display Modern, Easy-to-Read Colour Display
Wheel Configuration 1× + 2/4 (One Drive Wheel with Two or Four Load Rollers), Polyurethane or Similar Tyres
Model Variants Standard, i and D Versions of Each Capacity Class
Model Maximum Capacity Maximum Lift Height Travel Speed Battery Voltage
EXV-SF 14 / Li-Ion 1,400 kg 6,066 mm 10.0 km/h 24 V
EXV-SF 14i / Li-Ion 1,400 kg 6,066 mm 10.0 km/h 24 V
EXV-SF 14 D / Li-Ion 1,400 kg 6,066 mm 10.0 km/h 24 V
EXV-SF 16 / Li-Ion 1,600 kg 6,066 mm 10.0 km/h 24 V
EXV-SF 16i / Li-Ion 1,600 kg 6,066 mm 10.0 km/h 24 V
EXV-SF 16 D / Li-Ion 1,600 kg 6,066 mm 10.0 km/h 24 V
EXV-SF 20 / Li-Ion 2,000 kg 4,026 mm 10.0 km/h 24 V
EXV-SF 20i / Li-Ion 2,000 kg 4,026 mm 10.0 km/h 24 V
EXV-SF 20 D / Li-Ion 2,000 kg 4,026 mm 10.0 km/h 24 V

Why Choose the STILL EXH-S 20–25 Pallet Truck?

Why Choose STILL Warehouse Equipment?

  • Engineered for Durability

    Built to German engineering standards, STILL warehouse trucks deliver long operational life in demanding UAE environments.

  • Energy Efficiency

    Advanced electric drive systems reduce running costs compared with fuel-based alternatives.

  • Operator-Focused Ergonomics

    Comfortable platforms, intuitive controls and safety assistance systems reduce fatigue and improve productivity.

  • Built for UAE Conditions

    Reliable performance in high-temperature industrial environments across Dubai and the wider UAE.

  • Scalable Material Handling Solutions

    From low lift pallet trucks to stackers, order pickers and forklifts, STILL solutions grow with your operation.

Applications

Where the EXV-SF 14–20 Delivers Best Performance

Recommended applications below are based on the manufacturer’s stated uses for lorry loading, unloading, and rapid horizontal transport.

Typical Applications Include:

  • Stacking and retrieving pallets in high-bay racking up to 6,066 mm
  • Moving pallets over longer distances between goods receiving, storage and dispatch
  • Handling heavier pallets of up to 2,000 kg in warehouses and distribution centers
  • Busy manufacturing, retail, FMCG and e-commerce operations with several shifts
  • Fleets that benefit from lithium-ion power and quick battery change



Which Configuration Do You Need?

Model Selection Starting Point
EXV-SF 14 Pallets up to 1,400 kg and rack levels up to 6,066 mm
EXV-SF 16 Pallets up to 1,600 kg and rack levels up to 6,066 mm
EXV-SF 20 Heavy pallets up to 2,000 kg and rack levels up to 4,026 mm

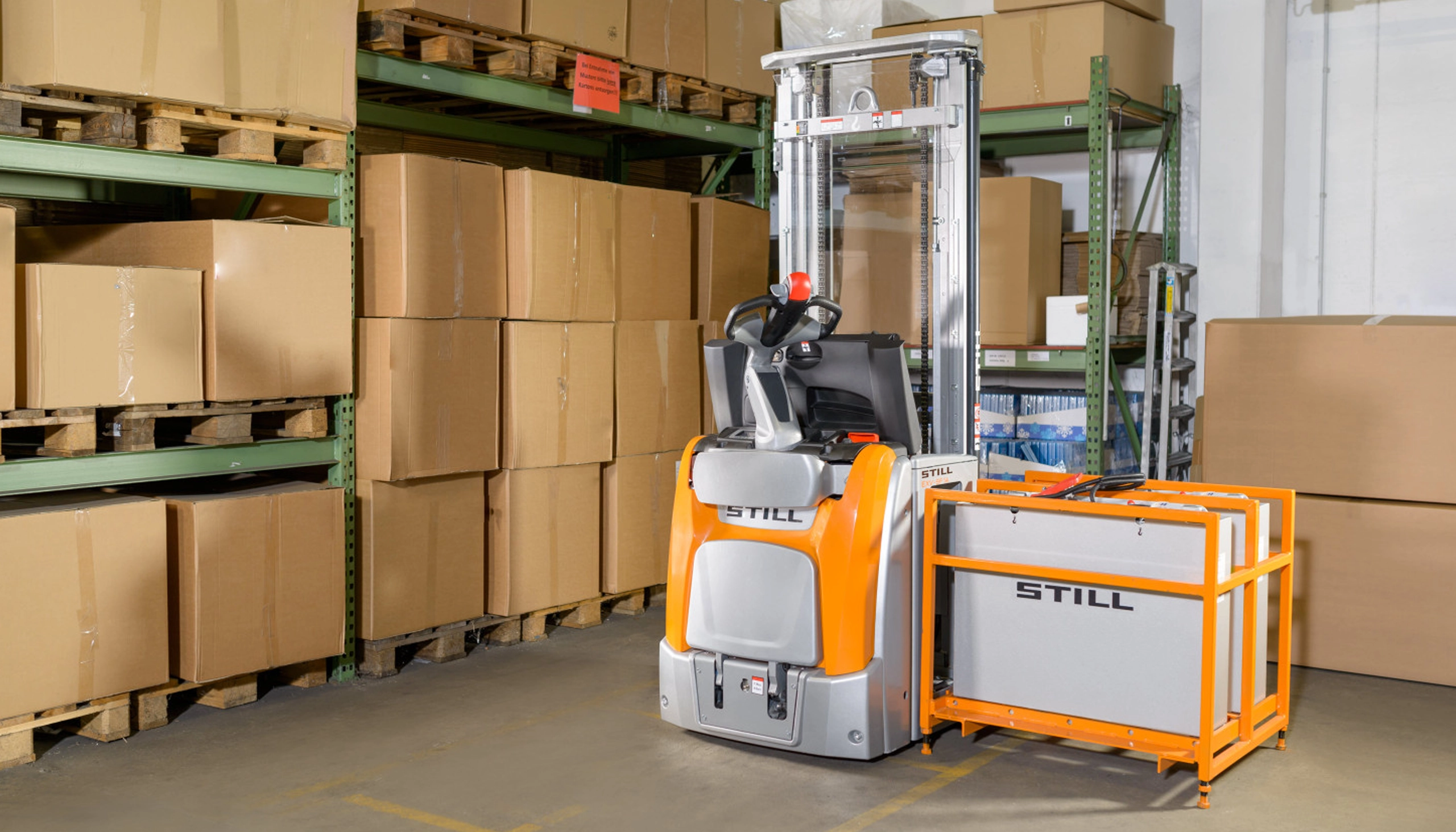

Side Battery Change (Optional) Multi-shift operations that need the truck back in service quickly

Frequently Asked Questions (FAQs)

What is the load capacity of the STILL EXV-SF 14–20?

The range covers three capacity classes: EXV-SF 14 at 1,400 kg, EXV-SF 16 at 1,600 kg and EXV-SF 20 at 2,000 kg, all with a 600 mm load center.

What is the maximum lift height?

The EXV-SF 14 and EXV-SF 16 lift up to 6,066 mm. The EXV-SF 20 lifts up to 4,026 mm. Check residual capacity at your required height.

Is the EXV-SF 14–20 a stand-on or walk-behind stacker?

It is an electric, battery-powered stand-on stacker. The operator travels on the platform, which suits longer distances between stacking tasks.

What are the travel speed and battery type?

Maximum travel speed is 10 km/h on a 24 V system, and all listed models are lithium-ion versions with straightforward battery change, optionally from the side of the truck.

What is the difference between the EXV-SF 14–20 and the EXV-CB 06–16?

The EXV-SF is a stand-on stacker with up to 2,000 kg capacity, 10 km/h speed and lift up to 6,066 mm. The EXV-CB is a walk-behind stacker with up to 1,600 kg, 6 km/h and lift up to 4,224 mm.

What is the difference between a high lift stacker and a low lift pallet truck?

A low lift pallet truck such as the STILL SXH 20 lifts pallets about 125 mm for horizontal transport. A high lift stacker such as the EXV-SF 14–20 raises pallets to rack levels for stacking and retrieval.
