Compact Walk-Behind Stacking for High-Racking Warehouse Operations

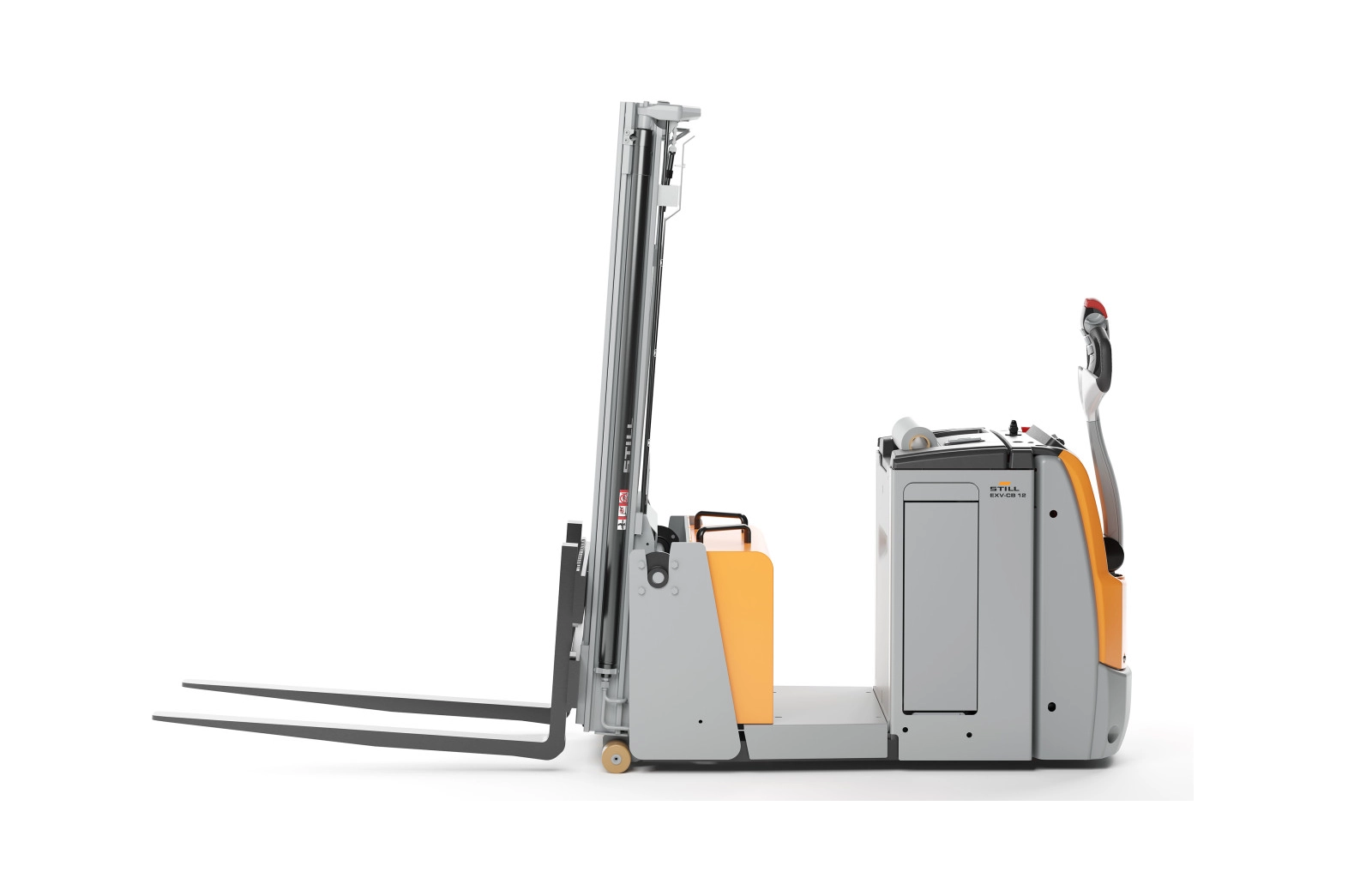

The STILL EXV-CB 06–16 is an electric, walk-behind high lift stacker truck for placing and retrieving pallets in racking. Four models cover loads from 600 kg to 1,600 kg and lift heights from 3,516 mm to 4,224 mm, so you can match the truck to your pallet weights and rack levels. A free view mast, a centrally positioned tiller and precise electric steering keep handling controlled in tight aisles, while the ECO, BOOST and Blue-Q driving programmes balance efficiency against handling capacity. Supplied in the UAE by Al Shirawi Enterprises, the authorised STILL dealer in Dubai.
Contact Al Shirawi Enterprises for a quotation matched to your pallet weights, rack heights and shift pattern.
| Specification | Details |
|---|---|
| Equipment Type | Electric Walk-Behind (Pedestrian) High Lift Stacker Truck |
| Load Capacity | EXV-CB 06: 600 kg · EXV-CB 10: 1,000 kg · EXV-CB 12: 1,200 kg · EXV-CB 16: 1,600 kg |
| Load Centre | 500 mm |
| Maximum Lift Height | 3,516 mm (EXV-CB 06) · 3,824 mm (EXV-CB 10) · 4,224 mm (EXV-CB 12 and 16) |
| Maximum Travel Speed | 6 km/h |
| Battery Voltage | 24 V |
| Battery Technology | Lithium-Ion, 300 Ah to 500 Ah, with Lateral Battery Change |
| Drive | Powerful, Low-Maintenance AC Drive Motor |
| Rated Power | Traction Motor Approx. 2.3 kW; Hoist Motor Approx. 2.2 kW (Smaller Capacities) and Approx. 3.2 kW (Higher Capacities) |
| Steering and Controls | Electric Steering Unit, Centrally Positioned Tiller, Proportional Valve Control, Optional Creep Speed Function |
| Mast | Free View Mast |
| Driving Programmes | ECO, BOOST and Blue-Q |
| Tyres | Polyurethane: Drive End Ø230 × 100 mm; Load End 4 × Ø85 × 105 mm (Load Rollers) |
| Model | Maximum Capacity | Maximum Lift Height | Travel Speed | Battery Voltage |
|---|---|---|---|---|
| EXV-CB 06 | 600 kg | 3,516 mm | 6.0 km/h | 24 V |
| EXV-CB 10 | 1,000 kg | 3,824 mm | 6.0 km/h | 24 V |
| EXV-CB 12 | 1,200 kg | 4,224 mm | 6.0 km/h | 24 V |
| EXV-CB 16 | 1,600 kg | 4,224 mm | 6.0 km/h | 24 V |
Precise, smooth electric steering reduces operator effort across a full shift.
The free view mast and centrally positioned tiller keep the fork tips and load in sight while driving and stacking.
Sensitive proportional valve control and an optional creep speed function support accurate pallet placement in confined aisles.
Drive, steer and lift with one hand. The ergonomic, intuitive controls suit both left- and right-handed operators.
High lift heights and strong residual load capacities let you use more of your racking height.
Choose ECO or Blue-Q for outstanding efficiency, or BOOST for maximum handling capacity.
The AC drive motor delivers reliable handling capacity with low maintenance needs.
The lithium-ion battery (300 Ah to 500 Ah) and straightforward lateral battery change help keep the truck available across shifts.
Built to German engineering standards, STILL warehouse trucks deliver long operational life in demanding UAE environments.
Advanced electric drive systems reduce running costs compared with fuel-based alternatives.
Comfortable controls and intuitive operation reduce fatigue and support productivity.
Reliable performance in high-temperature industrial environments across Dubai and the wider UAE.
From low lift pallet trucks to stackers, order pickers and forklifts, STILL solutions grow with your operation.
Where the EXV-CB 06–16 Delivers Best Performance
Recommended applications below are based on the manufacturer’s stated uses for lorry loading, unloading, and rapid horizontal transport.
| Model or Option | Selection Starting Point |
|---|---|
| EXV-CB 06 | Light pallets up to 600 kg and rack levels up to 3,516 mm |
| EXV-CB 10 | Standard pallets up to 1,000 kg and rack levels up to 3,824 mm |
| EXV-CB 12 | Heavier pallets up to 1,200 kg and rack levels up to 4,224 mm |
| EXV-CB 16 | Heaviest loads in the range, up to 1,600 kg, and rack levels up to 4,224 mm |
| Lithium-Ion Battery | Operations where quick charging and battery change suit the shift schedule |
| Creep Speed Function (Optional) | Very tight aisles needing slow, precise manoeuvring |
The range has four models: EXV-CB 06 at 600 kg, EXV-CB 10 at 1,000 kg, EXV-CB 12 at 1,200 kg and EXV-CB 16 at 1,600 kg, all with a 500 mm load center.
It depends on the model: 3,516 mm for the EXV-CB 06, 3,824 mm for the EXV-CB 10, and 4,224 mm for the EXV-CB 12 and EXV-CB 16. Check residual capacity at your required height.
It is an electric, battery-powered walk-behind (pedestrian) stacker. The central tiller lets the operator drive, steer and lift with one hand, for both left- and right-handers.
The listed maximum travel speed is 6 km/h and the battery voltage is 24 V across all four models.
Yes. A lithium-ion battery with a capacity between 300 Ah and 500 Ah is listed, with straightforward lateral battery change. Confirm your battery configuration with our team when requesting a quotation.
A low lift pallet truck such as the STILL SXH 20 lifts pallets about 125 mm for horizontal transport. A high lift stacker such as the EXV-CB 06–16 raises pallets to rack levels of up to 4,224 mm for stacking and retrieval.
