EXV 14 – 20 High Lift Stacker Trucks

EXV 14 – 20 High Lift Stacker Trucks

1.4–2.0 Ton Electric High Lift Stacker Truck for Sale in UAE

  • Load Capacity: Up to 2,000 kg
  • Listed Lift Height: 600 mm
  • Maximum Travel Speed: Up to 10 km/h
  • Drive Type: Electric
  • Battery Voltage: 24 V

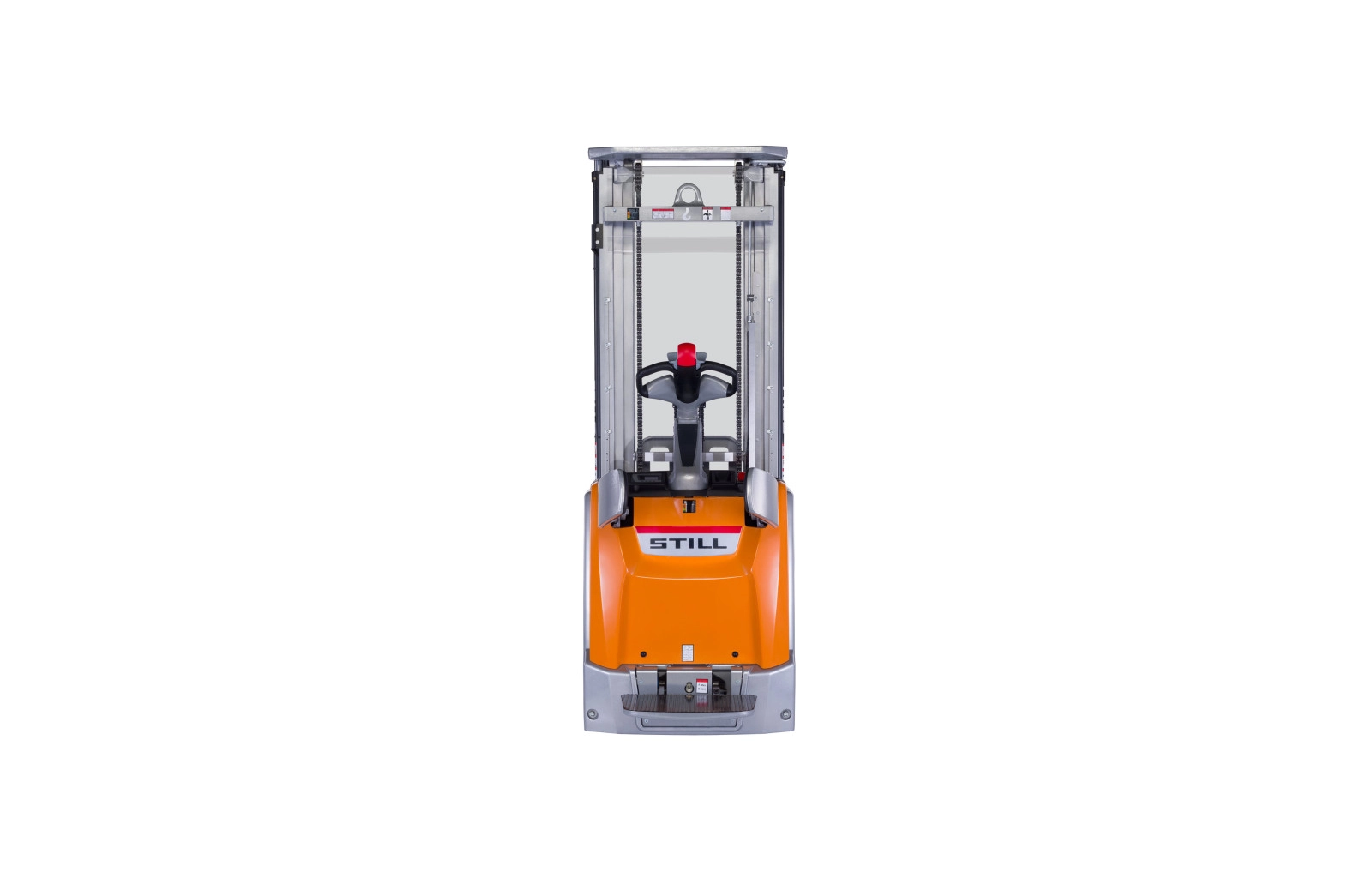

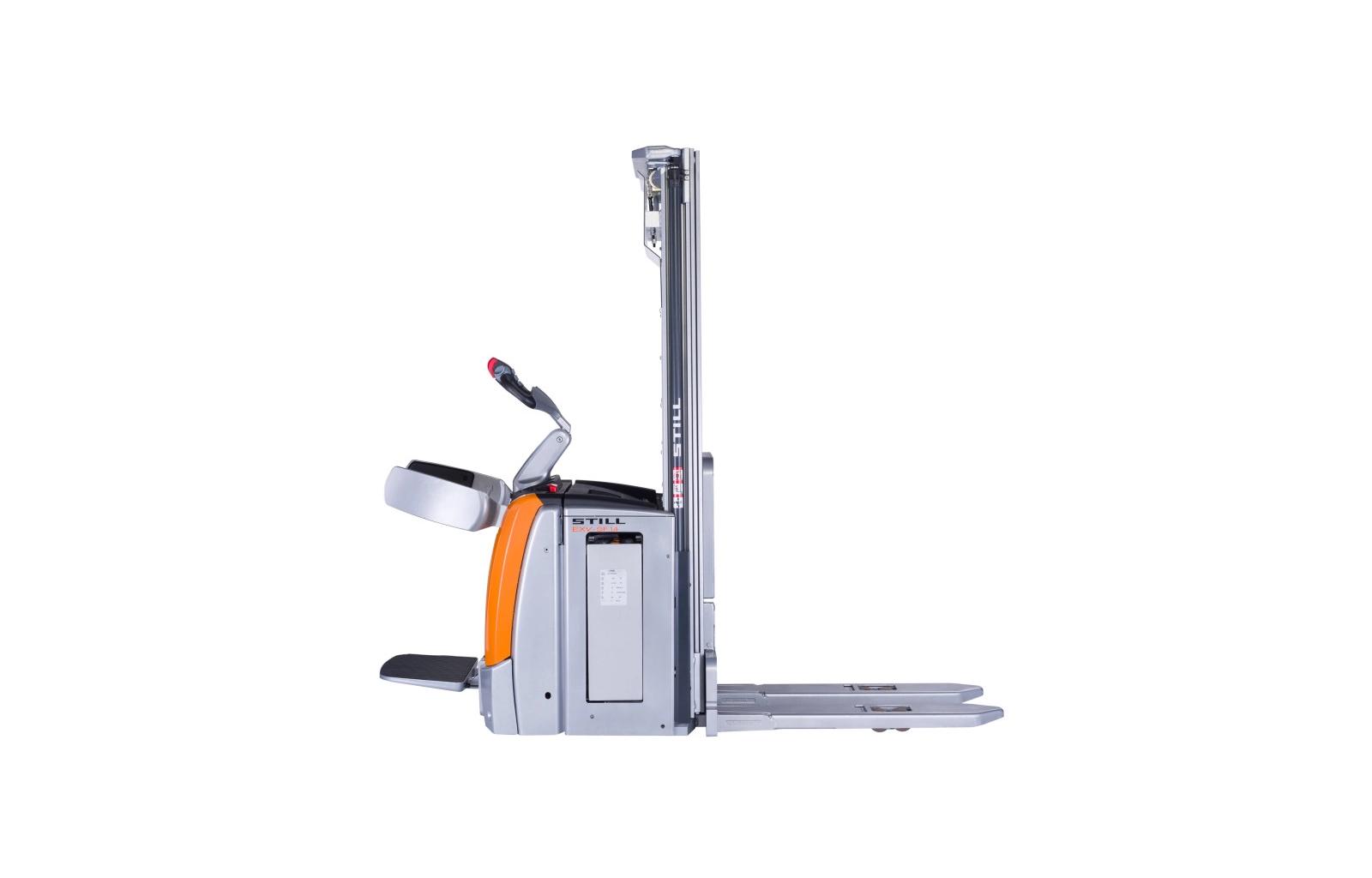

The STILL EXV 14–20 High Lift Stacker Trucks are powerful and compact electric stackers designed for efficient pallet handling, stacking and storage operations. With load capacities ranging from 1,400 kg to 2,000 kg, precise electric steering and compact dimensions, the EXV series is well suited for warehouses, distribution centres, manufacturing facilities and logistics operations across the UAE.

Designed for precision in confined spaces, the EXV 14–20 combines responsive controls, electric drive technology and ergonomic operation to support productive day-to-day warehouse handling.

Model Maximum Capacity Maximum Lift Height Travel Speed Battery Voltage
EXV-SF 14 / Li-Ion 1,400 kg 6,066 mm 10 km/h 24 V
EXV-SF 14i / Li-Ion 1,400 kg 6,066 mm 10 km/h 24 V
EXV-SF 14 D / Li-Ion 1,400 kg 6,066 mm 10 km/h 24 V
EXV-SF 16 / Li-Ion 1,600 kg 6,066 mm 10 km/h 24 V
EXV-SF 16i / Li-Ion 1,600 kg 6,066 mm 10 km/h 24 V
EXV-SF 16 D / Li-Ion 1,600 kg 6,066 mm 10 km/h 24 V
EXV-SF 20 / Li-Ion 2,000 kg 4,026 mm 10 km/h 24 V
EXV-SF 20i / Li-Ion 2,000 kg 4,026 mm 10 km/h 24 V
EXV-SF 20 D / Li-Ion 2,000 kg 4,026 mm 10 km/h 24 V
Specification Details
Equipment Type Electric High Lift Stacker Truck
Load Capacity 1,400–2,000 kg
Load Centre 600 mm
Maximum Lift Height Up to 6,066 mm, depending on model
Maximum Travel Speed Up to 10 km/h
Drive Type Battery-Powered Electric Drive with AC Motor
Battery Voltage 24 V
Traction Motor Approx. 1.2 kW
Hoist Motor Approx. 3.2 kW
Steering Precise Electrical Steering
Drive Wheel Ø230 × 75 mm
Load Rollers Ø85 × 100 mm

Why Choose the STILL EXH-S 20–25 Pallet Truck?

Why Choose STILL Warehouse Equipment?

  • Engineered for Durability

    STILL warehouse trucks are designed for demanding material handling applications, supporting dependable operation in warehouses, distribution centres and industrial facilities.

  • Energy Efficiency

    Advanced electric drive technology provides efficient material handling performance while supporting lower-emission indoor warehouse operations.

  • Operator-Focused Ergonomics

    Precise electrical steering, intuitive controls and clear operating information help reduce operator effort during repetitive pallet movement and stacking.

  • Precise Material Handling

    Responsive steering and sensitive proportional valve control make the EXV range well suited for accurate pallet positioning, particularly in confined warehouse spaces.

  • Scalable Material Handling Solutions

    With several load capacities and configurations available, businesses can select an EXV stacker according to their pallet weight, lift height and warehouse operating requirements.

Applications

Where the EXV 14–20 Delivers Best Performance

The following are recommended application starting points based on the range’s load capacities, seated workstation, travel speed, and battery options.

Typical Applications Include:

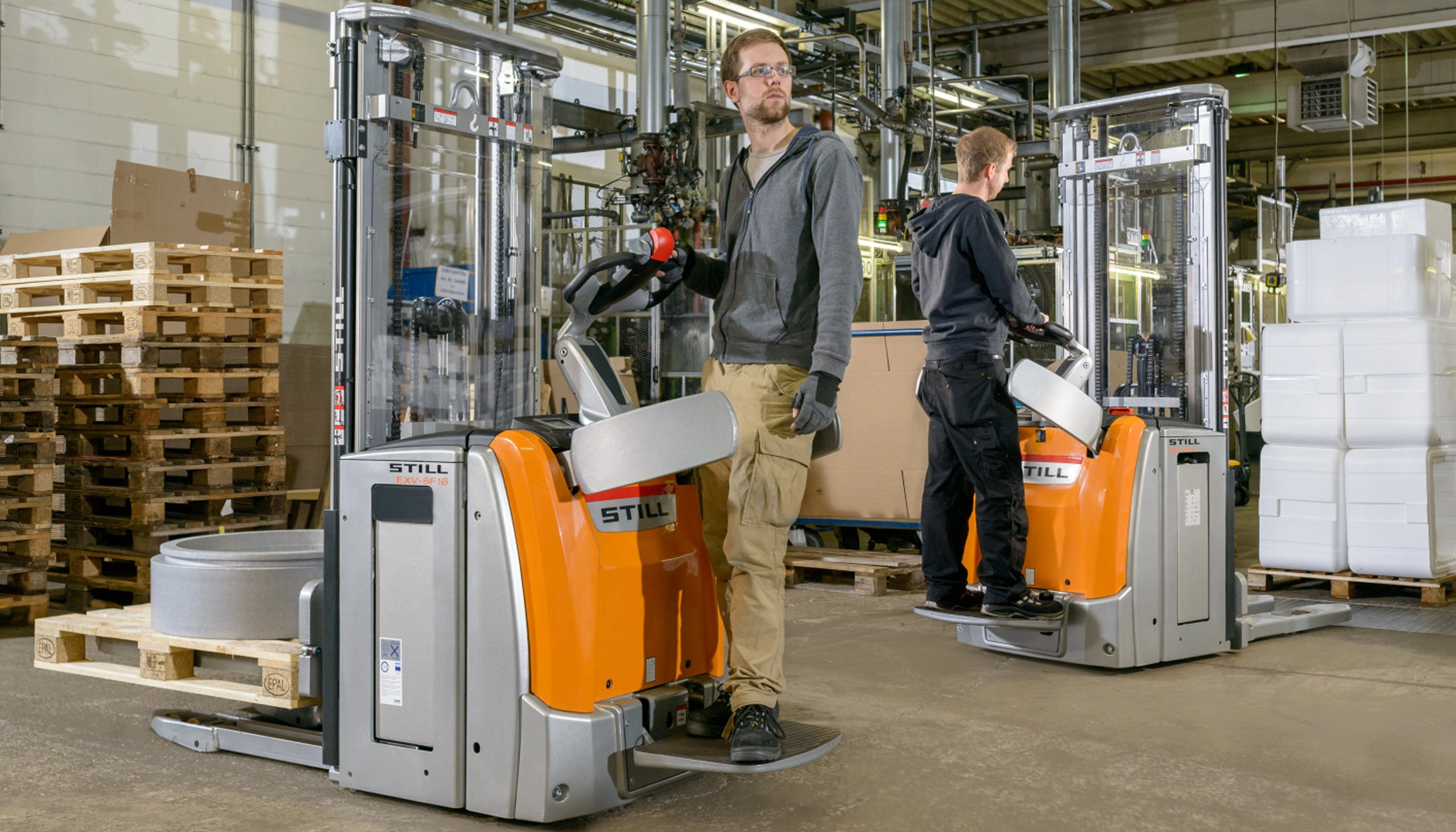

  • Ideal for pallet stacking and retrieval in warehouse racking.
  • Supports efficient movement between storage, picking and dispatch areas.
  • Suitable for handling materials, components and finished goods.
  • Ideal for retail, FMCG, manufacturing and distribution warehouses.
  • Compact design supports efficient operation in busy logistics environments.



Which Configuration Do You Need?

Configuration / Option Selection Starting Point
EXV-SF 14 / Li-Ion Pallet-handling requirements up to 1,400 kg with lift heights up to 6,066 mm
EXV-SF 14i / Li-Ion Operations requiring up to 1,400 kg capacity with the corresponding “i” configuration
EXV-SF 14 D / Li-Ion Applications requiring up to 1,400 kg capacity with the D configuration
EXV-SF 16 / Li-Ion Higher-capacity pallet handling up to 1,600 kg and lift heights up to 6,066 mm
EXV-SF 16i / Li-Ion Operations requiring up to 1,600 kg capacity with the corresponding “i” configuration
EXV-SF 16 D / Li-Ion Applications requiring up to 1,600 kg capacity with the D configuration
EXV-SF 20 / Li-Ion Heavy pallet handling up to 2,000 kg with listed lift heights up to 4,026 mm
EXV-SF 20i / Li-Ion Higher-load applications up to 2,000 kg requiring the corresponding “i” configuration
EXV-SF 20 D / Li-Ion Higher-load applications up to 2,000 kg requiring the D configuration

Frequently Asked Questions (FAQs)

What is the load capacity of the STILL EXV 14–20?

The range provides load capacities from 1,400 kg to 2,000 kg, depending on the selected model.

What is the maximum lift height of the EXV 14–20?

Selected 1,400 kg and 1,600 kg models have listed maximum lift heights of up to 6,066 mm, while the listed EXV-SF 20 variants reach up to 4,026 mm.

What is the maximum travel speed?

The listed models offer travel speeds of up to 10 km/h.

Is the STILL EXV 14–20 electric?

Yes. The product uses a battery-powered electric drive, and the listed Li-Ion variants operate at 24 V.

Where can the EXV 14–20 be used?

It is suited to pallet transport and high-level stacking in warehouses, logistics facilities, distribution centres and industrial storage operations.

Where can I buy a STILL EXV high lift stacker in the UAE?

Customers can enquire through Al Shirawi Enterprises for the EXV 14–20 High Lift Stacker Trucks in the UAE.
