Compact Electric Pallet Stacker up to 1.6 Ton for Sale in UAE | Al Shirawi Enterprises

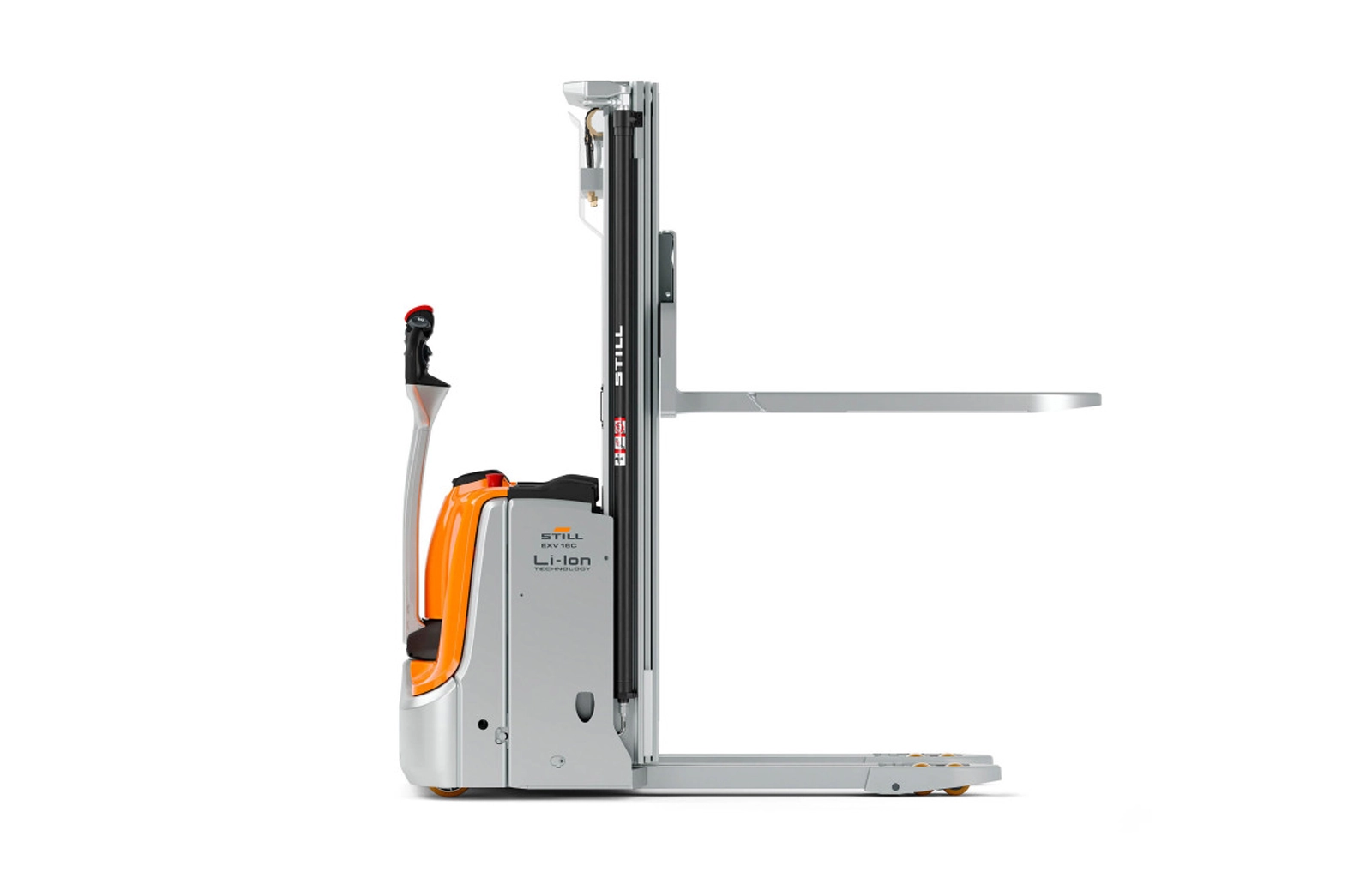

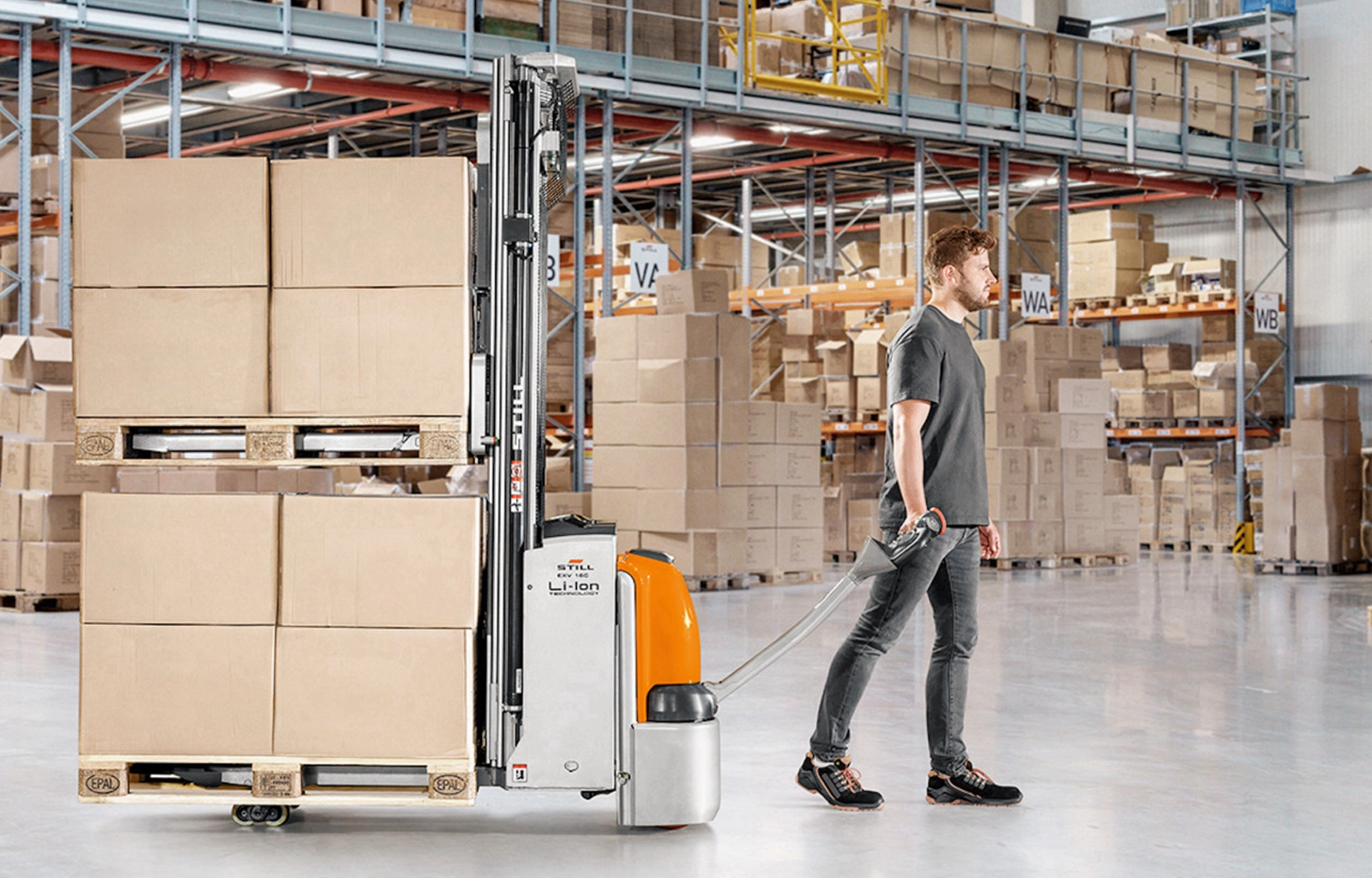

The STILL EXV 10C–16C is a compact, walk-behind high lift pallet stacker for moving and stacking large volumes of goods quickly and safely in tight spaces. It lifts up to 1.6 tonnes to a rated height of 5,466 mm and has a very small turning circle, so it works well in pre-storage areas and narrow racking aisles.
Its award-winning OptiSpeed tiller automatically adjusts travel speed to the distance between the operator and the truck. All controls can be used with one hand, by left- or right-handed operators, and an LED display on the tiller head shows key truck information at a glance. Lowering damping slows the forks just before they touch the ground, which protects your goods during storage.
Al Shirawi Enterprises supplies genuine STILL electric stackers across the UAE, backed by sales and after-sales support.
| Model | Max. Capacity | Max. Lift Height | Travel Speed | Battery Voltage |
|---|---|---|---|---|
| EXV 10 (i)C / Li-Ion | 1,000 kg | 4,686 mm | 6.0 km/h | 24 V |
| EXV 12 (i)C / Li-Ion | 1,200 kg | 4,686 mm | 6.0 km/h | 24 V |
| EXV 14 (i)C / Li-Ion | 1,400 kg | 5,466 mm | 6.0 km/h | 24 V |
| EXV 16 (i)C / Li-Ion | 1,600 kg | 5,466 mm | 6.0 km/h | 24 V |
| Specification | Detail |
|---|---|
| Manufacturer | STILL (Germany) |
| Drive / Operation | Electric, pedestrian (walk-behind) |
| Load Capacity | 1,000 – 1,600 kg |
| Load Centre | 600 mm |
| Max. Lift Height | Up to 5,466 mm (mast dependent) |
| Travel Speed | 6 km/h |
| Traction Motor | ≈ 1.1 kW (AC) |
| Lift Motor | ≈ 2.2 kW |
| Battery | 24 V, lead-acid or lithium-ion |
| Tyres | Polyurethane or solid rubber, Ø230×75 drive; Ø85×100 load |
| Wheel Configuration | 1× – 1/2 (four-wheel chassis) |
| Options | Initial lift (i versions), wheel arm extension for double-pallet transport, Li-Ion battery |
Make more use of your vertical racking with lift heights of up to 5,466 mm.
Speed adjusts automatically to the distance between operator and truck, for safer and faster handling.
Built for confined spaces, narrow aisles and busy pre-storage areas.
Gives stability and steady performance, including on slopes.
The optional initial lift keeps travel stable and low in vibration over gradients and uneven floors.
The optional wheel arm extension lets you carry two pallets at once.
Gives fine control when lifting and lowering, protecting both the operator and the load.
Reliable performance with minimal servicing.
A more compact truck, quick charging and high availability.
Automatic stop when the tiller is released, creep speed mode for tight spaces and a lift height display.
German-engineered for long service life
Reliable in high-temperature industrial environments
Lower running costs than fuel-powered equipment
iGo versions let you add more vehicles as your transport capacity grows
Where the EXV 10C–16C Delivers Best Performance

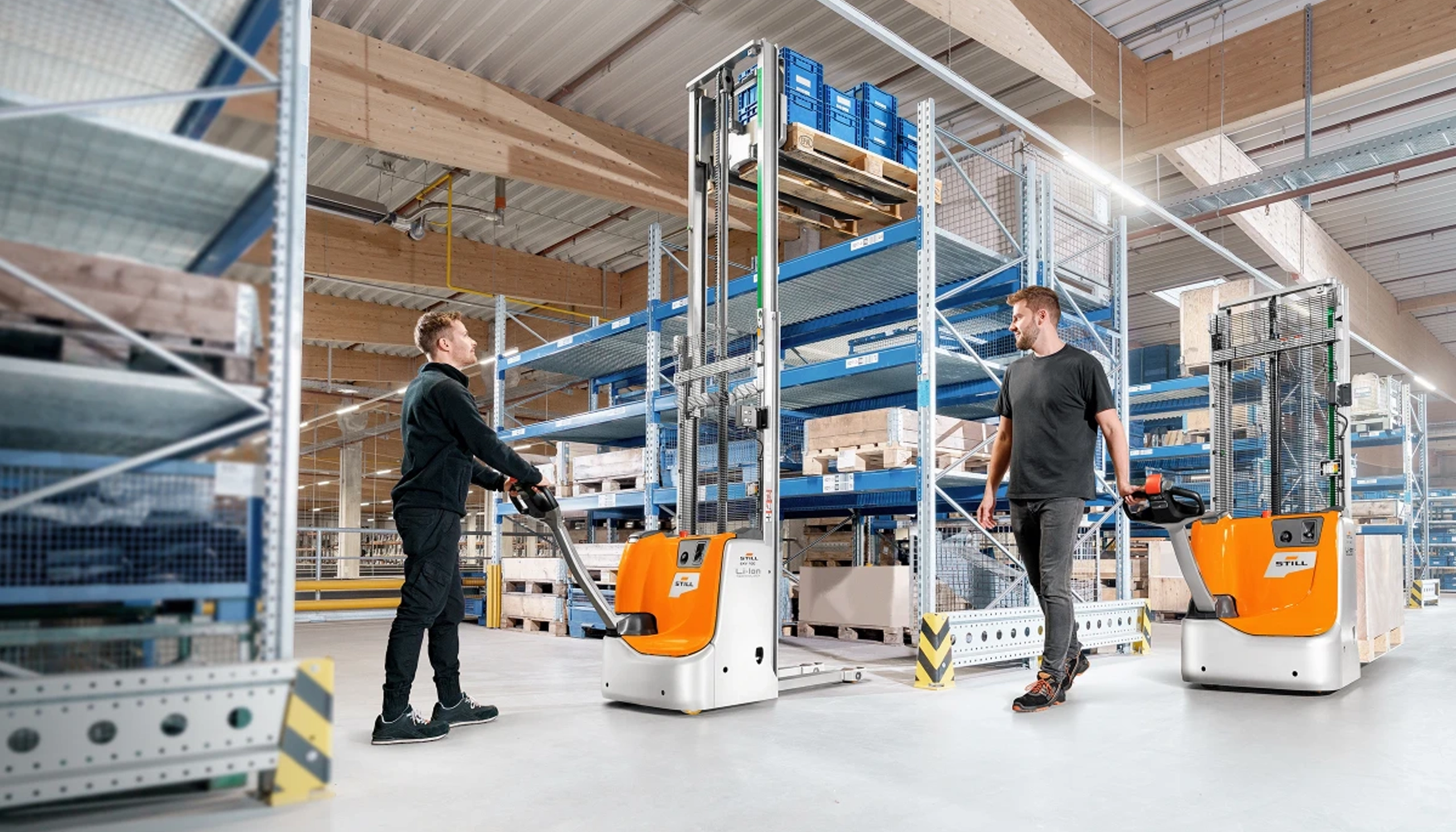

Warehouses, logistics and distribution centres, manufacturing plants, retail DCs, cold stores and any facility with medium-height racking and limited space.
| Model | Best For |
|---|---|
| EXV 10C / 12C | Light to medium pallets up to 1.2 t, lift up to 4,686 mm |
| EXV 14C / 16C | Heavier pallets up to 1.6 t, lift up to 5,466 mm |
| “i” versions (e.g. EXV 12iC) | Initial lift for ramps, thresholds and uneven floors |
| Requirement | Why It Matters |
|---|---|
| Top racking level | Sets the mast and model choice (4.7 m or 5.4 m) |
| Heaviest pallet | Choose a capacity from 1.0 t to 1.6 t, with a safety margin |
| Aisle width | A compact chassis and Li-Ion battery suit tight aisles |
| Floor condition | Initial lift handles ramps and uneven surfaces |
| Pallet volume | The wheel arm extension allows two pallets per trip |
| Local after-sales support | Protects uptime and gives access to genuine parts |
It’s a compact, walk-behind electric high lift stacker that lifts 1,000–1,600 kg to heights of up to 5,466 mm.
The number shows the capacity: 1.0, 1.2, 1.4 and 1.6 tonnes. The 10C and 12C lift up to 4,686 mm, and the 14C and 16C up to 5,466 mm.
It means the truck has an initial lift function, which keeps travel stable over slight gradients and uneven floors.
Price depends on the model, mast height, battery type and options. Contact Al Shirawi Enterprises for a tailored quote.
The ECV 10C is STILL’s most compact entry-level stacker, lifting 1,000 kg up to 1,867 mm. The EXV handles up to 1.6 t and lifts up to 5,466 mm, so it suits higher racking and heavier loads.
Yes. Its four-wheel chassis gives stability on slopes, and the initial lift option handles uneven floors.
