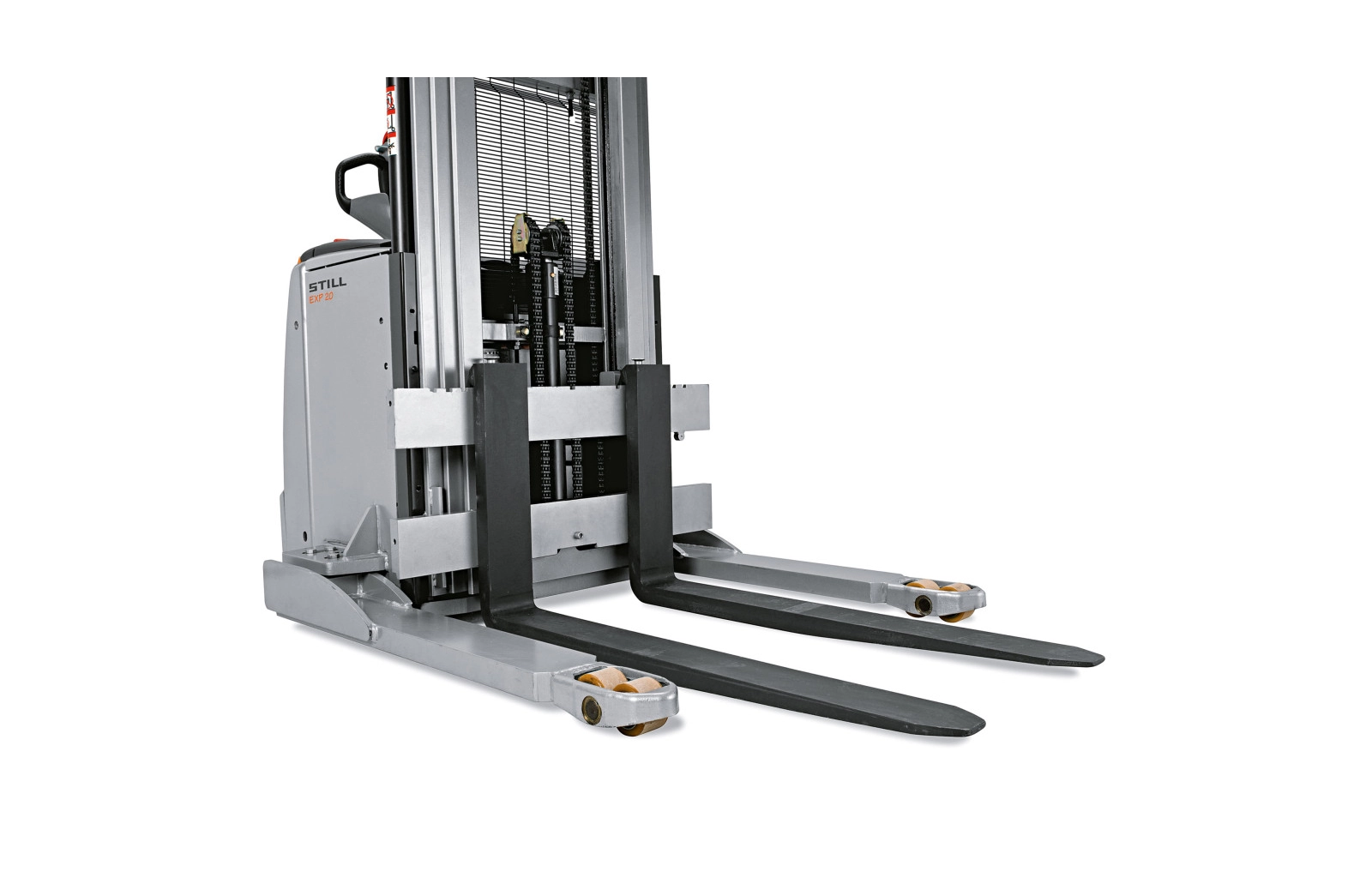

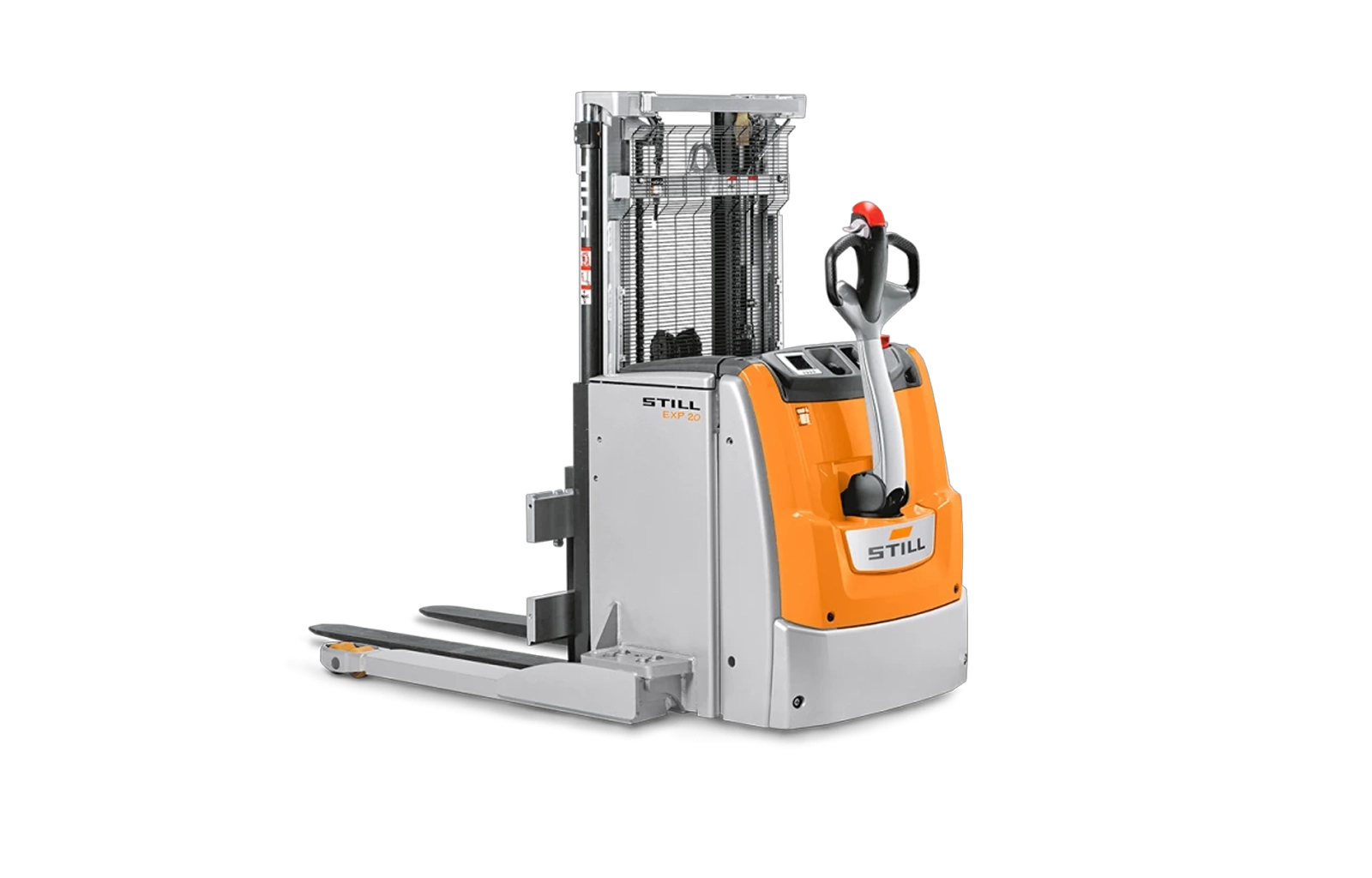

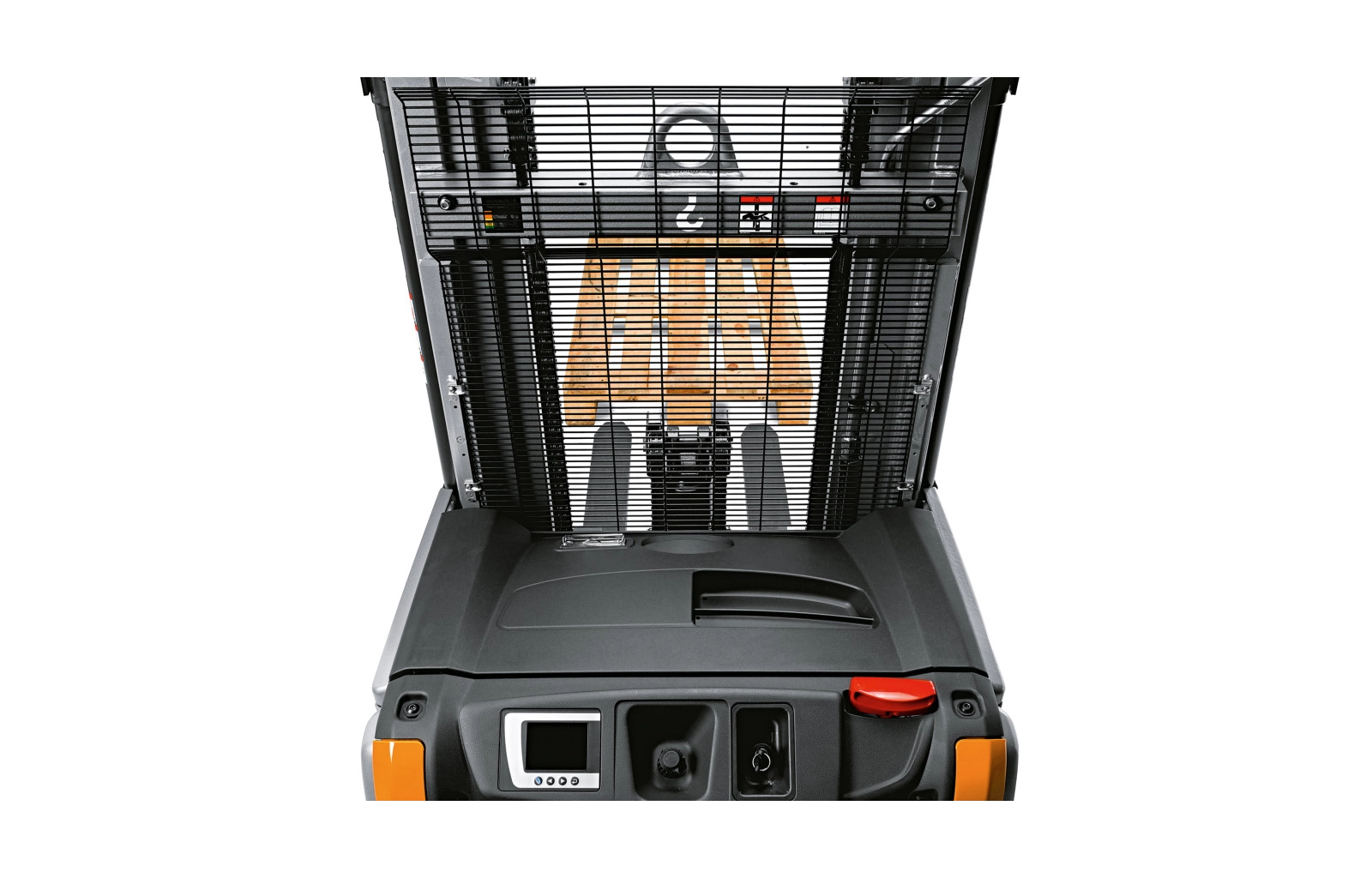

EXP 14 – 20 High Lift Stacker Trucks

EXP 14 – 20 High Lift Stacker Trucks

1.4–2.0 Ton Electric High Lift Stacker Truck for Sale in UAE

  • Load Capacity: Up to 2,000 kg
  • Listed Lift Height: 600 mm
  • Maximum Travel Speed: Up to 6 km/h
  • Drive Type: Electric
  • Battery Voltage: 24 V

The STILL EXP 14–20 High Lift Stacker Trucks combine powerful electric performance, flexible pallet handling and precise maneuverability for demanding warehouse operations. With load capacities from 1,400 kg to 2,000 kg, adjustable forks and excellent residual load capacity, the EXP range is designed for efficient pallet transport and high-level stacking.

The pedestrian-operated design, intuitive electrical steering and compact maneuverability make the EXP 14–20 suitable for warehouses, distribution centers, manufacturing facilities and logistics operations across the UAE.

Model Maximum Load Capacity Maximum Lift Height Travel Speed Battery Voltage
EXP 14 1,400 kg 5,446 mm 6 km/h 24 V
EXP 16 1,600 kg 5,446 mm 6 km/h 24 V
EXP 20 2,000 kg 4,476 mm 6 km/h 24 V
Specification Details
Equipment Type Electric Pedestrian High Lift Stacker
Load Capacity 1,400–2,000 kg
Load Centre 600 mm
Maximum Lift Height Up to 5,446 mm, depending on model
Maximum Travel Speed 6 km/h
Drive Type Battery-Powered Electric Drive
Battery Voltage 24 V
Steering Electric Steering
Fork Type Self-Supporting and Adjustable Forks
Drive Wheel Ø230 × 75 mm
Load Rollers Ø85 × 100 mm

Why Choose the EXP 14–20 High Lift Stacker Trucks?

Why Choose STILL Warehouse Equipment?

  • Flexible Equipment Choices

    The EXP range features adjustable forks and optional hydraulic functions, helping businesses handle different pallet types and accessory equipment.

  • Efficient Electric Performance

    Powerful electric drive technology and selectable ECO, BOOST and Blue-Q driving programmes help balance productivity and energy efficiency.

  • Operator-Focused Ergonomics

    Precise electric steering, intuitive one-handed controls and an ergonomic tiller support comfortable material handling throughout the working day.

  • Precise & Safe Handling

    OptiSpeed can automatically adapt travel speed according to tiller position, while Curve Speed Control adjusts speed when cornering.

  • Smart Warehouse Operations

    High residual load capacity, compact manoeuvrability and high lift capability help businesses optimise available warehouse storage space.

Applications

Where the EXP 14–20 Delivers Best Performance

The following are recommended application starting points based on the range’s load capacities, seated workstation, travel speed, and battery options.

Typical Applications Include:

  • Ideal for pallet stacking and retrieval in warehouse racking.
  • Suitable for handling different pallet types and load carriers.
  • Supports efficient movement between storage, picking and dispatch areas.
  • Ideal for manufacturing, retail, FMCG and distribution warehouses.
  • Compact handling supports operation in confined warehouse spaces.



Which Configuration Do You Need?

Configuration Selection Starting Point
EXP 14 Pallet handling up to 1,400 kg with lift heights up to 5,446 mm
EXP 16 Higher-capacity pallet handling up to 1,600 kg with lift heights up to 5,446 mm
EXP 20 Heavy pallet handling up to 2,000 kg with lift heights up to 4,476 mm
Adjustable Fork Configuration Operations handling different pallet types and load carriers
Optional Hydraulic Functions Applications requiring compatible accessory equipment

Frequently Asked Questions (FAQs)

What is the load capacity of the STILL EXP 14–20?

The EXP range provides load capacities from 1,400 kg to 2,000 kg, depending on the model selected.

What is the maximum lift height of the EXP 14–20?

The listed EXP 14 and EXP 16 models provide maximum lift heights of 5,446 mm, while the EXP 20 has a listed maximum lift height of 4,476 mm.

What is the maximum travel speed?

The EXP 14, EXP 16 and EXP 20 have a listed maximum travel speed of 6 km/h.

Can the EXP 14–20 handle different pallet types?

Yes. Self-supporting and adjustable forks enable the EXP to handle different pallet types, while optional hydraulic functions can support accessory equipment.

Is the EXP 14–20 suitable for narrow warehouse spaces?

Yes. Precise electrical steering, sensitive proportional control and an optional creep speed function are designed to support accurate maneuvering in confined spaces.

Where can I buy the STILL EXP 14–20 in the UAE?

The EXP 14–20 High Lift Stacker Truck for Sale UAE | Al Shirawi Enterprises is available through Al Shirawi Enterprises for material handling and warehouse applications in the UAE.
