TANA H260 landfill compactor
- Operating weight: 29 000 kg
- Rated power 250 BHP (186kW)
- Crushing force: 127 kN
Premium High-Capacity Landfill Compactor for Sale in UAE | Ultimate Solid Waste Compaction Equipment

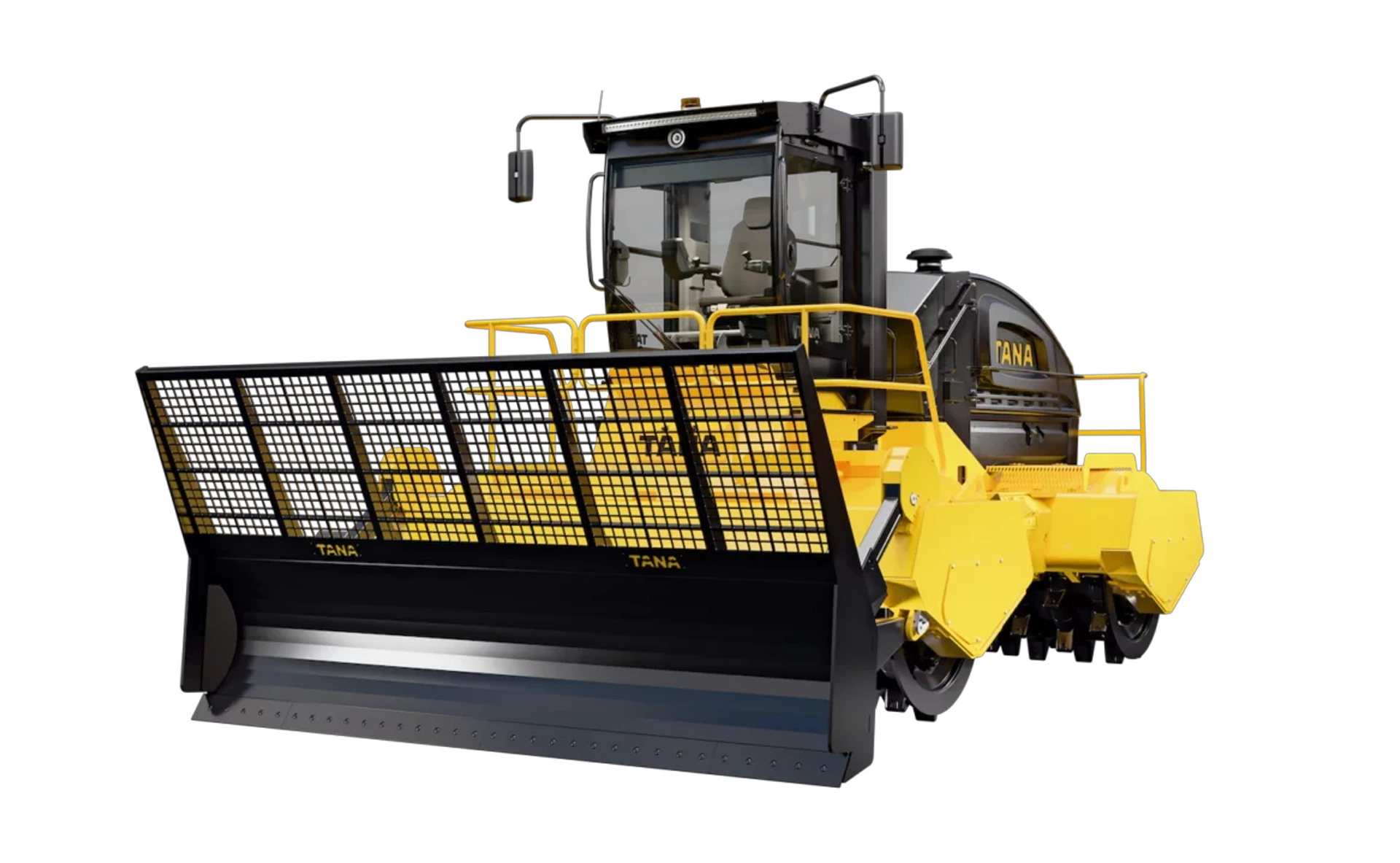

The TANA H520 is the flagship premium high-capacity landfill compactor and ultimate solid waste compaction machine in the entire TANA H Series range engineered for the UAE’s most intensive large-scale municipal landfill operations and highest-volume industrial waste disposal facilities that demand the absolute maximum in compaction force, machine weight, full-width drum coverage, and productive landfill airspace efficiency from a purpose-built landfill compactor operating continuously under the most extreme UAE landfill conditions imaginable. Delivering 255 kN of crushing force from a 52,000 kg operating weight and powered by a proven 535 BHP diesel engine driving full symmetric 3,800 mm twin drums, the TANA H520 is the most powerful, heaviest, and highest-crushing-force purpose-built landfill compactor that TANA the world’s only dedicated landfill compactor manufacturer has ever engineered. For UAE waste management authorities and large-scale landfill operators who accept no compromise on compaction performance, landfill airspace efficiency, and operational reliability, the H520 represents the definitive statement in purpose-built landfill compaction technology available in the UAE and GCC market today.
At 52,000 kg operating weight with full symmetric 3,800 mm twin drums on both front and rear identical to the H450’s symmetric drum configuration but delivering 34 kN more crushing force from 7,000 kg greater machine weight the TANA H520 achieves the highest waste compaction density, the deepest crushing tooth penetration, and the greatest landfill airspace efficiency of any purpose-built landfill compactor commercially available in the UAE. Backed by TANA’s guaranteed minimum 10% better compaction density, the H520 delivers measurable, commercially quantifiable landfill airspace savings, extended facility operational lifespan, and lower total waste management cost per tonne that no alternative landfill compaction equipment available in the UAE market can match.
| Specification | Detail |
|---|---|
| Operating Weight | 52,000 kg |
| Crushing Force | 255 kN |
| Rated Power (SAE J1995) | 535 BHP (399 kW) @ 2,100 RPM |
| Emissions | EU Stage IIIA / U.S. EPA Tier 3 |
| Speed | 0–4 km/h / 0–10 km/h |
| Compaction Width Front | 3,800 mm |
| Compaction Width Rear | 3,800 mm |
| Drum Configuration | Full-Width Symmetric Twin Drums |
| Frame Design | Non-Oscillating Rigid Frame |
| Transmission | Closed-Circuit Hydrostatic |
At 52,000 kg operating weight, the TANA H520 is the heaviest and most powerful landfill compactor in the entire TANA H Series — and the heaviest purpose-built landfill compactor commercially available in the UAE market. In landfill compaction, machine weight channelled through purpose-built full-width drums and optimised crushing teeth is the single most direct driver of compaction force, waste density achievement, and landfill airspace efficiency. The H520’s 52,000 kg operating weight — 7,000 kg more than the H450 and 23,000 kg more than the H260 — delivers the highest possible crushing force transfer per square metre of compacted waste surface on every pass across the UAE’s largest and most demanding active landfill working faces, achieving compaction density levels that no lighter landfill compaction equipment operating in the UAE market can match regardless of the number of additional passes applied.
The TANA H520’s 255 kN of crushing force is the highest of any landfill compactor in the TANA H Series and the highest of any purpose-built landfill compactor commercially available in the UAE — representing a 101% increase over the H260’s 127 kN, a 62% increase over the H320’s 157 kN, a 37% increase over the H380’s 186 kN, and a 15% increase over the H450’s 221 kN. This maximum crushing force drives the H520’s optimised crushing teeth deeper into mixed municipal solid waste, construction debris, industrial waste, and challenging mixed landfill fractions on every single pass than any other landfill compactor available in the UAE — achieving superior waste layer penetration, maximum material interlocking, and the greatest achievable compaction density across the most demanding, highest-volume, and most challenging UAE landfill waste streams that would limit the performance of any lighter or lower-specification landfill compaction machine.
The TANA H520 combines the same full symmetric 3,800 mm twin-drum configuration as the H450 — both front and rear drums delivering the full 3,800 mm compaction width on every pass in both directions — with the H520’s additional 7,000 kg of machine weight and 34 kN of additional crushing force concentrated through those same full-width drums. The result is the highest compaction force per square metre of drum contact area of any landfill compactor available in the UAE — delivering deeper crushing tooth penetration, greater waste layer compression, and superior long-term landfill density and stability on every forward and reverse compaction pass across the UAE’s widest active landfill working faces. Fewer total passes per landfill cell, lower daily fuel consumption per tonne compacted, and the highest productive compaction throughput per operating hour of any purpose-built landfill compactor in the UAE.
The TANA H520’s non-oscillating rigid frame — TANA’s most fundamental and exclusive engineering advantage over all articulated-frame alternatives — channels the full 52,000 kg machine weight directly through both full-width 3,800 mm drums and all crushing teeth on every compaction pass with zero energy loss through frame articulation or oscillation. At 52,000 kg, this rigid frame advantage is at its absolute maximum: no articulated-frame competitor operating at equivalent weight can transfer as great a proportion of its machine weight directly to the waste surface on every pass as the TANA H520’s non-oscillating rigid frame design. Every kilogram of the H520’s considerable 52,000 kg operating weight compacts waste — none is lost to frame movement — delivering the UAE’s highest landfill compaction density and long-term landfill stability from a single machine on every working day.
Every TANA H520 comes backed by TANA’s compaction guarantee — a minimum of 10% better compaction density than alternative landfill compaction approaches. At 52,000 kg and 255 kN of crushing force operating across full symmetric 3,800 mm twin drums, the H520 delivers TANA’s compaction guarantee at the highest possible scale — on the most demanding UAE landfill sites, with the highest daily incoming waste tonnages, across the widest active landfill working faces. For the UAE’s largest municipal and industrial landfill operators where the cumulative commercial value of a guaranteed minimum 10% compaction advantage — measured in extended airspace lifespan, deferred capital expenditure, and reduced waste management cost per tonne — accumulates to tens of millions of dirhams across a major landfill facility’s operational lifetime, the H520 represents the highest-return landfill equipment investment available in the UAE and GCC market today.
The TANA H520’s closed-circuit hydrostatic transmission features separate systems for both full-width 3,800 mm drums, two driving speed ranges from 0 to 4 km/h and 0 to 10 km/h, single-lever control of driving speed and direction, and fully stepless speed control delivering precise, intuitive machine management at 52,000 kg operating weight across the full range of surface conditions, waste depths, compaction intensities, and operational requirements encountered at the UAE’s largest and most demanding active landfill sites. Variable displacement axial piston pumps with electrical proportional control and two variable displacement plug-in motors deliver smooth, progressive power delivery that maximises productive compaction output per operating hour while providing the operational control and safety confidence that operators of 52-tonne landfill compaction equipment require across the longest and most demanding UAE landfill operating shifts.
The TANA H520’s operator cabin is engineered for maximum comfort, superior all-round visibility across the widest landfill working faces, and operational simplicity across the longest and most demanding continuous multi-shift UAE landfill operations that only a 52,000 kg flagship landfill compactor is typically assigned to manage. Advanced intelligent machine controls, ergonomic single-lever drive management, and clear operational monitoring displays allow operators to maintain maximum compaction quality and large-scale site productivity at the H520’s considerable operating scale — reducing operator fatigue, improving compaction consistency, and maximising the productive contribution of every H520 operating hour to UAE landfill airspace efficiency and total waste management cost reduction.
As the authorised TANA distribution and aftersales partner for the UAE since 2004, Al Shirawi Enterprises provides complete procurement, commissioning, aftersales maintenance, and genuine spare parts support for the TANA H520 — the UAE’s most powerful, heaviest, and highest-crushing-force purpose-built landfill compactor. With over two decades of exclusive TANA landfill compactor technical expertise, the UAE’s only in-country TANA spare parts inventory at flagship scale, and a dedicated field service network covering all seven emirates, Al Shirawi is the only organisation in the UAE capable of providing the manufacturer-backed technical support, operational continuity, and landfill compaction expertise that the UAE’s largest, most critical, and highest-volume landfill operations demand from their flagship compaction equipment.
Al Shirawi maintains in-country inventory of genuine TANA H520 crushing teeth, full-width drum components, hydraulic system parts, transmission components, and critical spare parts at flagship scale eliminating international procurement lead times and ensuring the UAE’s most operationally critical landfill facilities maintain uninterrupted compaction capacity following any maintenance event.
Our specialist technical team manages full site delivery, machine commissioning at 52,000 kg scale, hydraulic system configuration, drum alignment verification, and comprehensive operator training — ensuring your TANA H520 is optimally configured for maximum compaction performance, operational safety, and long-term reliability from the very first shift at your UAE flagship landfill facility.
Structured preventive maintenance programmes cover scheduled crushing teeth inspections and replacements, full-width drum servicing, hydraulic system maintenance, transmission servicing, diesel engine maintenance, and complete machine diagnostics — protecting your H520’s long-term flagship compaction performance and controlling total landfill equipment operating costs across its full service life in UAE conditions.
Al Shirawi’s field service network covers all seven UAE emirates, providing rapid-response breakdown support, genuine spare parts delivery at flagship scale, and expert technical guidance wherever your TANA H520 premium high-capacity landfill compactor is operating — from the UAE’s largest municipal landfill facilities across Dubai and Abu Dhabi to major industrial waste disposal and environmental services sites across every UAE emirate.
The TANA H520 premium high-capacity landfill compactor and flagship solid waste compaction machine is the ultimate landfill equipment choice for the UAE’s largest, most demanding, and highest-volume municipal waste management authorities, industrial waste disposal operators, and major environmental services contractors that require the absolute maximum in compaction force, machine weight, full-width symmetric twin-drum coverage, and total landfill airspace efficiency from the world’s most powerful purpose-built landfill compactor operating continuously under the most intensive UAE landfill conditions. The H520 delivers unmatched compaction performance across the UAE’s largest municipal solid waste landfills processing the highest daily tonnages of mixed household, commercial, and industrial waste, major industrial waste disposal facilities managing the largest volumes of construction and demolition debris, bulky waste, and mixed industrial material across the widest active landfill cells in the UAE, and the UAE’s most critical waste management facilities where achieving the maximum possible landfill density, extending facility airspace lifespan across decades of operation, and minimising total waste management cost per tonne at the highest daily throughput are the defining operational and commercial requirements. Its full symmetric 3,800 mm twin-drum configuration at 52,000 kg, non-oscillating rigid frame, 255 kN crushing force, 535 BHP diesel engine, and TANA compaction guarantee make the H520 the undisputed flagship heavy-duty landfill compaction equipment for any UAE facility where only the highest possible compaction force and guaranteed maximum landfill airspace efficiency are acceptable operational standards.
| Specification | H260 | H320 | H380 | H450 | H520 |
|---|---|---|---|---|---|
| Operating Weight | 29,000 kg | 32,000 kg | 38,000 kg | 45,000 kg | 52,000 kg |
| Crushing Force | 127 kN | 157 kN | 186 kN | 221 kN | 255 kN |
| Engine Power | 250 BHP | 325 BHP | 535 BHP | 535 BHP | 535 BHP |
| Front Drum Width | 2,660 mm | 2,660 mm | 2,660 mm | 3,800 mm | 3,800 mm |
| Rear Drum Width | 2,660 mm | 2,660 mm | 3,800 mm | 3,800 mm | 3,800 mm |
| Compaction Guarantee | Min. 10% | Min. 10% | Min. 10% | Min. 10% | Min. 10% |
| Best Suited For | Mid-scale | Large-scale | Very large | Highest volume | Ultimate scale |
| UAE Aftersales | Yes | Yes | Yes | Yes | Yes |
The TANA H520 is the flagship and most powerful landfill compactor in the entire TANA H Series range, and pricing reflects its premium 52,000 kg specification, 255 kN crushing force, and full symmetric 3,800 mm twin-drum configuration. As the authorised TANA distributor in the UAE since 2004, Al Shirawi Enterprises provides detailed, transparent price quotations tailored to your specific UAE flagship landfill operational requirements and daily tonnage volumes. Contact our team today for a competitive price for the TANA H520 premium high-capacity landfill compactor in the UAE.
The TANA H520 combines the highest operating weight at 52,000 kg, the highest crushing force at 255 kN, and the full symmetric 3,800 mm twin-drum configuration on both front and rear drums channelled through TANA’s exclusive non-oscillating rigid frame that transfers every kilogram of machine weight directly to the waste surface on every pass. No other purpose-built landfill compactor commercially available in the UAE market delivers this combination of machine weight, crushing force, and full-width symmetric drum coverage at flagship scale — making the H520 the definitive choice for UAE operators who demand the absolute maximum in landfill compaction performance and airspace efficiency.
Both the H520 and H450 feature full symmetric 3,800 mm twin drums on front and rear. The H520 weighs 52,000 kg versus the H450’s 45,000 kg and delivers 255 kN of crushing force versus 221 kN representing 7,000 kg more machine weight and 34 kN more crushing force concentrated through the same full-width drum configuration. This additional weight and force translates directly into greater crushing tooth penetration depth, superior waste layer compression, and higher achievable landfill density per compaction pass — making the H520 the choice for UAE’s most demanding flagship landfill operations where the H450’s already exceptional performance is the minimum required standard.
Yes. The TANA H520 is the most capable purpose-built landfill compactor ever engineered for the UAE’s highest-volume and most demanding municipal solid waste landfill operations delivering the greatest compaction force, the heaviest machine weight, and the highest daily throughput capacity of any TANA H Series compactor across the widest and most challenging active landfill working faces. For UAE municipal waste management authorities managing the UAE’s largest landfill facilities with the highest daily incoming waste tonnages, the H520 is the flagship landfill compaction equipment choice.
TANA’s non-oscillating rigid frame transfers the full 52,000 kg machine weight through both full-width 3,800 mm drums and all crushing teeth directly to the waste surface with zero energy loss while 255 kN of crushing force drives optimised teeth deeper into waste layers than any lighter compactor can achieve. This engineering delivers TANA’s guaranteed minimum 10% better compaction density, translating into measurable landfill airspace savings worth tens of millions of dirhams across the operational lifetime of the UAE’s largest landfill facilities.
Yes. Al Shirawi Enterprises has been the authorised TANA partner in the UAE since 2004, maintaining in-country stock of genuine TANA H520 crushing teeth, full-width drum components, hydraulic parts, transmission components, and critical spare parts at flagship scale, and providing comprehensive aftersales support including preventive maintenance contracts, emergency breakdown response, and 24/7 technical assistance across all seven UAE emirates.
Lead times vary depending on current stock availability and configuration requirements. Al Shirawi Enterprises manages the complete procurement and delivery process for UAE customers including all import logistics, customs clearance, site delivery, and full machine commissioning at flagship scale. Contact our team for current availability and estimated delivery timelines for the TANA H520 premium high-capacity landfill compactor in the UAE.
