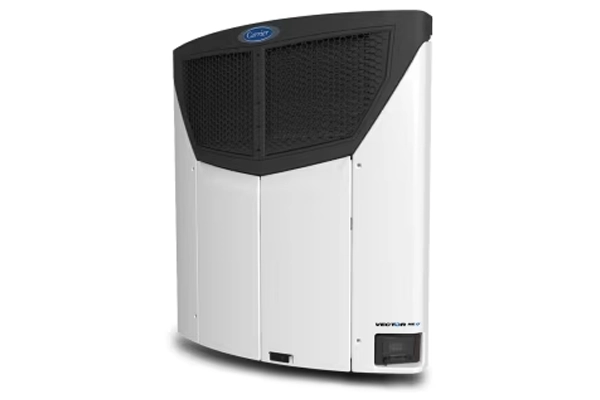

VECTOR HE 19 MT  – Trailer Refrigeration Unit

VECTOR HE 19 MT  – Trailer Refrigeration Unit

  • Heating Capacity: Up to 9,600 W
  • Airflow: 3470 m3/hr
  • Dimensions: 167 x 2150 x 944 mm
Get a Quote

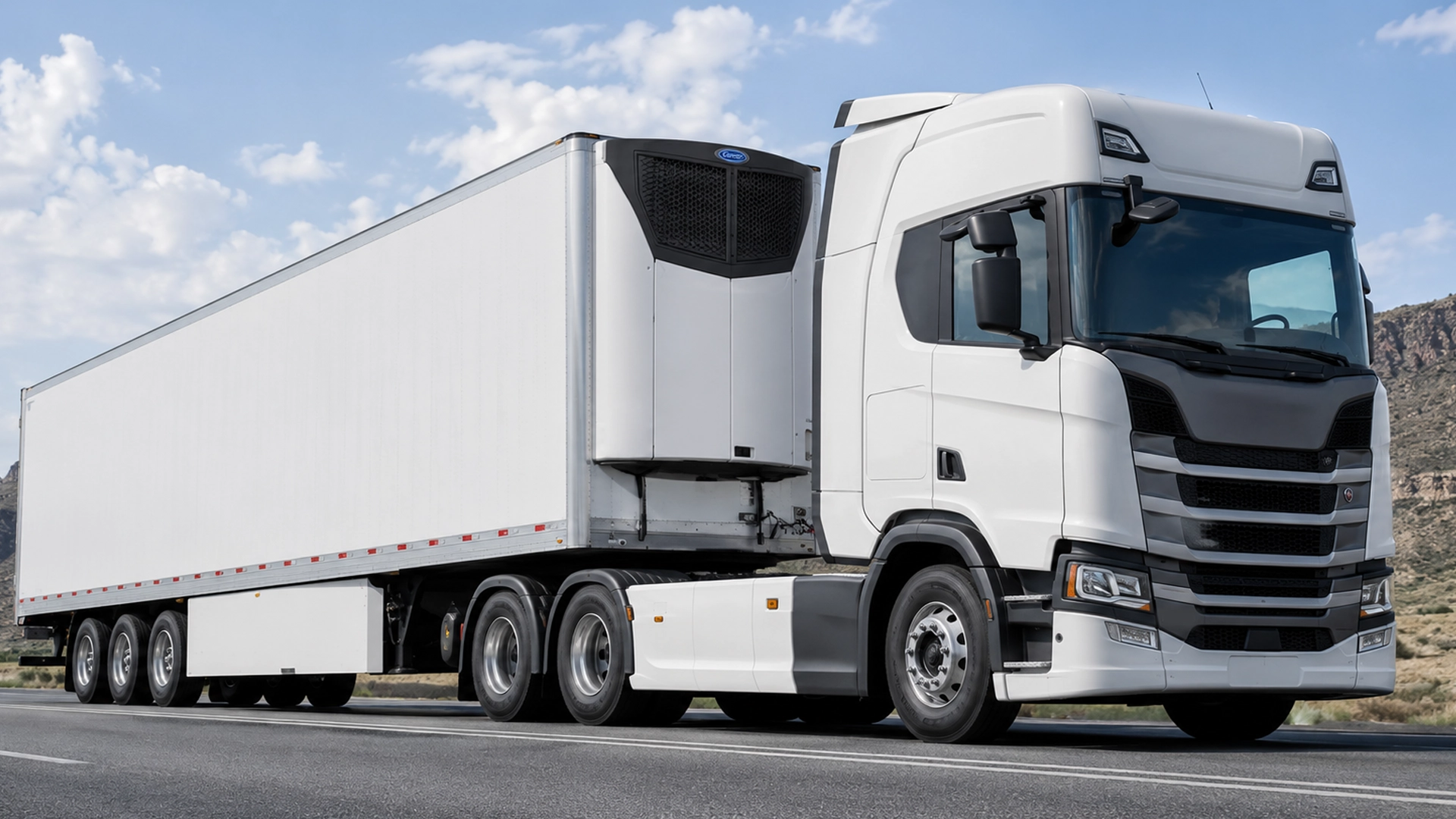

VECTOR HE 19 MT  – Trailer Refrigeration Unit

The Carrier VECTOR HE 19 MT is a next-generation high-efficiency multi-temperature trailer refrigeration unit engineered for advanced temperature-controlled transport operations. Combining Carrier’s proven E-Drive™ all-electric architecture with new performance-enhancing technologies, the VECTOR HE 19 MT delivers superior refrigeration efficiency, lower fuel consumption, and optimized cold chain management for multi-compartment trailer applications.

Designed for intensive distribution, supermarket logistics, pharmaceutical transport, and mixed-load refrigerated operations, the VECTOR HE 19 MT provides precise temperature control across multiple compartments while reducing operational costs and environmental impact. Its advanced APX control system enhances operational visibility, system intelligence, and temperature management for sensitive cargo transportation.

Featuring impressive noise reduction, lightweight construction, and ultra-efficient evaporator fan technology, the VECTOR HE 19 MT is ideal for urban deliveries, long-haul transport, and demanding multi-temperature logistics operations requiring reliable and sustainable refrigeration performance.

Cooling Capacity Nominal Main Evap MHS 700 MHS 1100 MHS 2200 MHD 1100 MHD 2200
Diesel – High Speed 0°C/+30°C 17,770 W 16,830 W 7,870 W 10,740 W 13,100 W 11,260 W 15,760 W
Diesel – High Speed -20°C/+30°C 9,230 W 9,270 W 5,250 W 6,700 W 7,660 W 6,460 W 8,880 W
Standby – 400V/3/50 Hz 0°C/+30°C 16,330 W 14,890 W 7,380 W 10,060 W 12,280 W 10,470 W 13,570 W
Standby – 400V/3/50 Hz -20°C/+30°C 8,600 W 8,290 W 4,870 W 6,260 W 7,280 W 6,400 W 8,030 W
Cooling Capacity – 2 Compartments Nominal Main Evap MHS 700 MHS 1100 MHS 2200 MHD 1100 MHD 2200
Diesel – High Speed 0°C/+30°C – 12,860 W 6,010 W 8,210 W 10,010 W 8,600 W 11,970 W
Diesel – High Speed -20°C/+30°C – 7,080 W 4,010 W 5,120 W 5,850 W 4,930 W 6,780 W
Standby – 400V/3/50 Hz 0°C/+30°C – 11,870 W 5,880 W 8,020 W 9,790 W 8,340 W 10,820 W
Standby – 400V/3/50 Hz -20°C/+30°C – 6,610 W 3,880 W 4,990 W 5,800 W 5,100 W 6,390 W
Cooling Capacity – 3 Compartments Nominal Main Evap MHS 700 MHS 1100 MHS 2200 MHD 1100 MHD 2200
Diesel – High Speed 0°C/+30°C – 10,180 W 4,760 W 6,500 W 7,930 W 6,810 W 9,480 W
Diesel – High Speed -20°C/+30°C – 5,610 W 3,180 W 4,050 W 4,630 W 3,910 W 5,370 W
Standby – 400V/3/50 Hz 0°C/+30°C – 9,830 W 4,870 W 6,640 W 8,110 W 6,910 W 8,960 W
Standby – 400V/3/50 Hz -20°C/+30°C – 5,470 W 3,210 W 4,130 W 4,800 W 4,220 W 5,300 W
Heating Capacity Nominal Main Evap MHS 700 MHS 1100 MHS 2200 MHD 1100 MHD 2200
Diesel 9,200 W 9,000 W 3,300 W 5,400 W 9,600 W 5,400 W 9,600 W
Standby – 400V/3/50 Hz 4,500 W 4,500 W 3,300 W 5,400 W 9,600 W 5,400 W 9,600 W
Air Flow Nominal Main Evap MHS 700 MHS 1100 MHS 2200 MHD 1100 MHD 2200
Diesel – 5,550 m³/hr 1,020 m³/hr 1,910 m³/hr 3,430 m³/hr 2,220 m³/hr 3,470 m³/hr
400V/3/50 Hz – 4,350 m³/hr – – – – –



Specification Value
ATP Compliance 3426 MT – Rev. 1
Weight 815 kg
Dimensions (H × W × D) 2227 × 2050 × 430 mm
Box Size Recommendation (+0°C / +30°C) 95 m³
Box Size Recommendation (+0°C / +40°C) 90 m³
Box Size Recommendation (-20°C / +30°C) 95 m³
Box Size Recommendation (-20°C / +40°C) 90 m³
Sound Power (Lwa) 100 dB
Diesel – High Speed Sound Pressure 69 dB
Diesel – Low Speed Sound Pressure 63 dB
Standby – 400V/3/50 Hz Sound Pressure 60 dB
Engine Displacement 2200 cc
Engine Cylinders 4
Compressor Technology Scroll Economized
Compressor Model ZF22
Controls APX
Refrigerant Type R452A
Refrigerant Charge 7.3 kg
