TANA H260 landfill compactor
- Operating weight: 29 000 kg
- Rated power 250 BHP (186kW)
- Crushing force: 127 kN
Heavy-Duty Landfill Compactor for Sale in UAE | Large-Scale Solid Waste Compaction Equipment

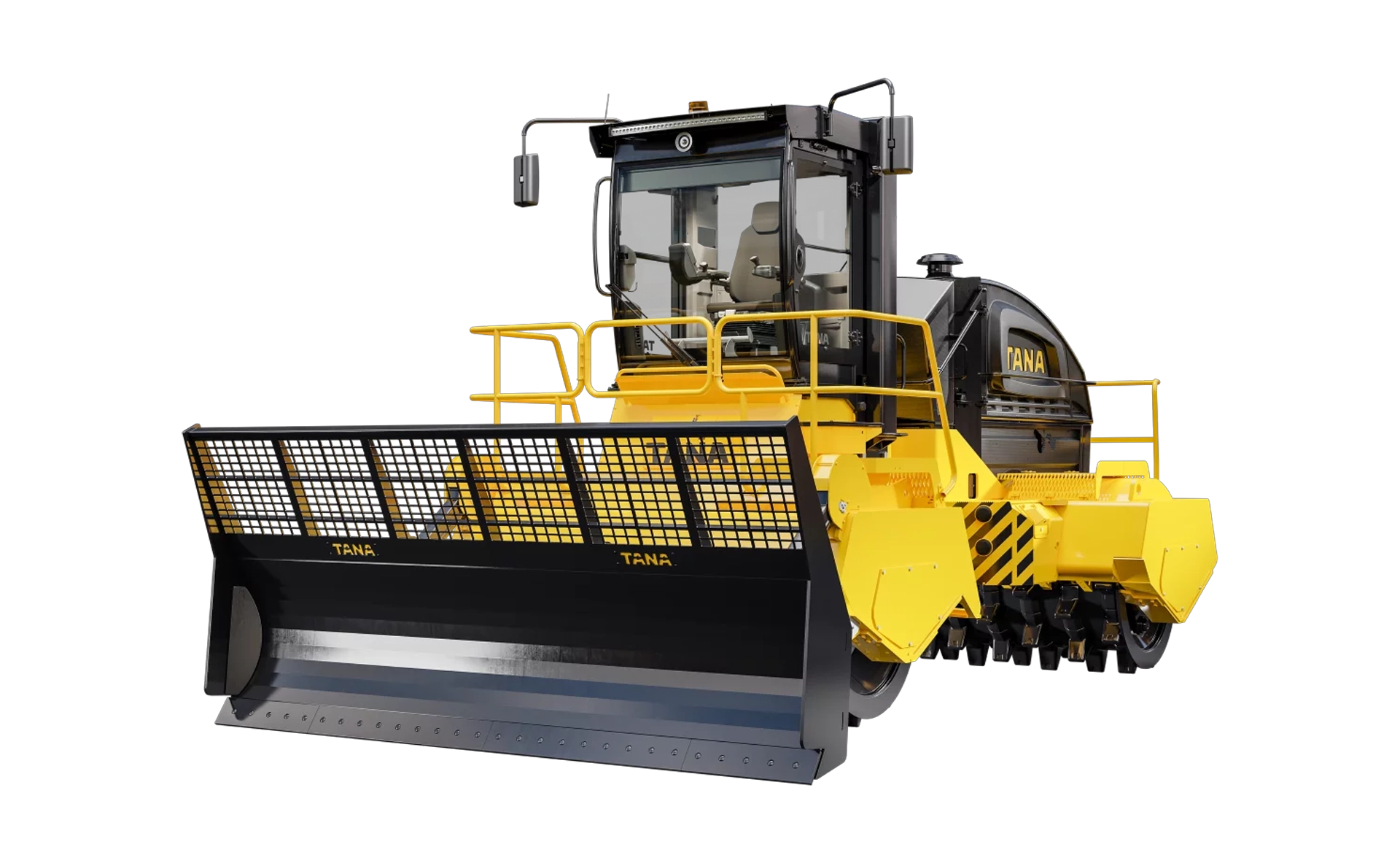

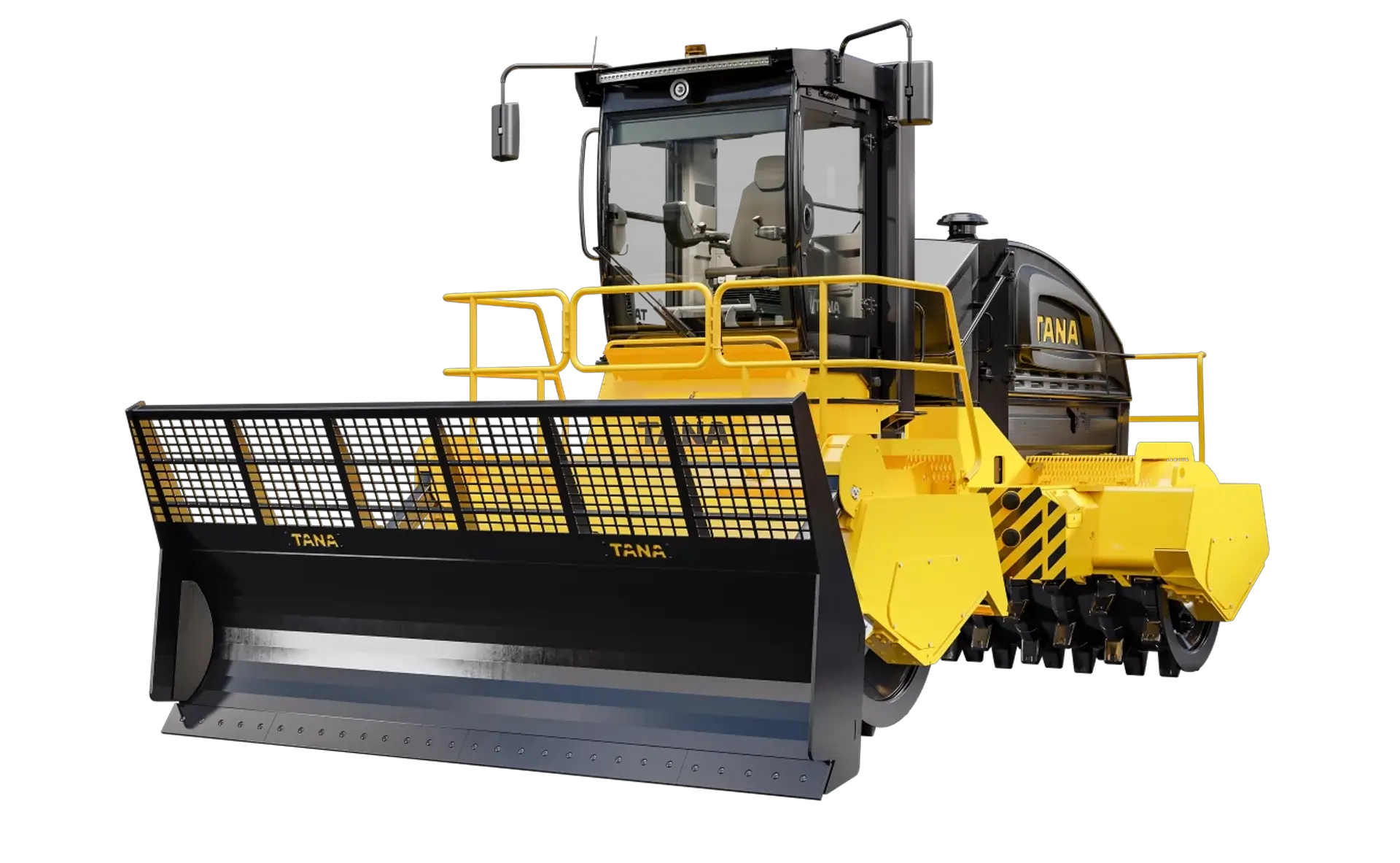

The TANA H380 is a heavy-duty large-scale landfill compactor and high-capacity solid waste compaction machine engineered for the UAE’s highest-volume municipal landfill operations and large industrial waste disposal facilities that demand the greatest possible compaction force, the widest possible compaction coverage, and the lowest achievable operating cost per tonne from a purpose-built landfill compactor operating continuously across the most demanding UAE landfill environments. Delivering 186 kN of crushing force from a 38,000 kg operating weight and powered by a 535 BHP fuel-efficient diesel engine, the H380 is the most powerful landfill compactor in the TANA H Series range purpose-built for UAE waste management authorities and large landfill operators who need to process and compact the highest daily incoming waste tonnages with maximum airspace efficiency, superior compaction density, and reliable continuous multi-shift performance across every working day.
The TANA H380 introduces a critically important engineering advancement over the H260 and H320: an asymmetric compaction width configuration with a 2,660 mm front drum and an expanded 3,800 mm rear drum delivering the widest rear compaction coverage of any TANA H Series compactor and ensuring that even the broadest UAE landfill working faces are compacted to maximum density with the fewest possible passes per shift. This wider rear drum configuration dramatically increases productive compaction coverage per pass, reduces total daily fuel consumption, lowers machine wear per tonne compacted, and maximises the commercial return from every operating hour of your UAE landfill compaction investment.
TANA the world’s only manufacturer dedicated exclusively to purpose-built landfill compactors guarantees a minimum of 10% better compaction density with every H380 deployment, translating directly into extended landfill airspace lifespan, reduced waste transport frequency, deferred new landfill cell development capital expenditure, and measurably lower total waste management cost per tonne for the UAE’s largest landfill operators.
| Specification | Detail |
|---|---|
| Operating Weight | 38,000 kg |
| Crushing Force | 186 kN |
| Rated Power (SAE J1995) | 535 BHP (399 kW) @ 2,100 RPM |
| Emissions | EU Stage IIIA / U.S. EPA Tier 3 |
| Speed | 0–4 km/h / 0–10 km/h |
| Compaction Width Front | 2,660 mm |
| Compaction Width Rear | 3,800 mm |
| Drum Configuration | Full-Width Twin Drums — Asymmetric |
| Frame Design | Non-Oscillating Rigid Frame |
| Transmission | Closed-Circuit Hydrostatic |
The TANA H380’s 535 BHP diesel engine delivers 399 kW at 2,100 RPM the same proven powertrain configuration used across the TANA Shark D and Shark DT heavy-duty waste shredder range, now applied to maximum-capacity landfill compaction. This 535 BHP power output drives the H380’s 38,000 kg operating weight and 186 kN crushing force across the widest and most challenging UAE landfill working faces — delivering productive compaction capacity, operational reliability, and fuel efficiency at a level that no smaller landfill compactor in the UAE market can match for large-scale high-volume municipal and industrial waste compaction operations running continuous multi-shift schedules.
At 186 kN of crushing force, the TANA H380 delivers the highest crushing force of any TANA H Series landfill compactor a 47% increase over the H260’s 127 kN and an 18% increase over the H320’s 157 kN. This superior crushing force drives the H380’s optimised crushing teeth deeper into mixed municipal solid waste, construction debris, bulky industrial material, and challenging mixed landfill fractions on every pass achieving greater waste penetration, superior layer interlocking, and maximum compaction density across the most demanding UAE landfill waste streams that would limit the performance of lower-specification compaction equipment.
The TANA H380’s asymmetric compaction width configuration 2,660 mm front drum and 3,800 mm rear drum is the most significant engineering differentiator that sets the H380 apart from all other TANA H Series compactors. The expanded 3,800 mm rear drum provides the widest rear compaction coverage in the TANA H Series range, dramatically increasing productive compaction area per pass across the broadest UAE landfill working faces. This wider rear drum configuration means fewer total passes are required to compact each landfill cell to maximum density — directly reducing daily fuel consumption, machine operating hours, and total compaction cost per tonne across continuous UAE landfill operations where the width of the active working face demands the widest possible compaction equipment coverage.
The TANA H380’s non-oscillating rigid frame channels the full 38,000 kg machine weight directly through the full-width drums and crushing teeth on every compaction pass — delivering the maximum possible crushing force transfer with zero energy loss through frame articulation. This rigid frame design is TANA’s most fundamental and exclusive engineering advantage over articulated-frame alternatives: at 38,000 kg, the H380’s rigid frame transfers more crushing force per unit of machine weight to the waste surface than any articulated competitor at equivalent weight delivering measurably superior compaction density and landfill stability on every pass at every UAE landfill site it operates.
Every TANA H380 landfill compactor comes backed by TANA’s compaction guarantee — a minimum of 10% better compaction density than alternative landfill compaction approaches. For UAE’s largest municipal and industrial landfill operators where even a single percentage point of additional compaction density translates into millions of dirhams of extended landfill airspace value across a facility’s operational lifespan, TANA’s guaranteed minimum 10% compaction advantage represents the most commercially significant performance differential available from any heavy-duty landfill compaction equipment available in the UAE and GCC market today.
The TANA H380’s closed-circuit hydrostatic transmission features separate systems for both drums, two driving speed ranges from 0 to 4 km/h and 0 to 10 km/h, single-lever control of driving speed and direction, and stepless speed control — giving UAE landfill operators precise, intuitive machine control across the full range of compaction surface conditions, waste depths, and operational requirements encountered during large-scale continuous landfill operations. Variable displacement axial piston pumps with electrical proportional control and two variable displacement plug-in motors deliver smooth, progressive power delivery that maximises productive compaction output while minimising operator fatigue across the longest and most demanding UAE landfill operating shifts.
The TANA H380’s operator cabin is engineered for maximum comfort, all-round visibility, and operational simplicity across the longest and most demanding continuous multi-shift UAE landfill operations. Advanced intelligent machine controls, ergonomic single-lever drive management, and clear operational displays allow operators to focus entirely on compaction quality and large-scale site productivity reducing operator fatigue, improving compaction consistency, and maximising productive compaction output per operator hour across the UAE’s largest and most demanding landfill facilities.
As the authorised TANA distribution and aftersales partner for the UAE since 2004, Al Shirawi Enterprises provides complete procurement, commissioning, aftersales maintenance, and genuine spare parts support for the TANA H380 — the UAE’s most powerful purpose-built landfill compactor. With over two decades of exclusive TANA landfill compactor expertise, in-country spare parts inventory, and a dedicated field service network covering all seven UAE emirates, Al Shirawi is the only organisation in the UAE that delivers manufacturer-backed technical support for TANA maximum-capacity landfill compaction equipment at the scale and reliability that the UAE’s largest landfill operations demand.
Al Shirawi maintains in-country inventory of genuine TANA H380 crushing teeth, drum components, hydraulic system parts, transmission components, and critical spare parts — eliminating international procurement lead times and ensuring the UAE’s largest and most operationally critical landfill facilities are not disrupted by extended compactor downtime following any maintenance event.
Our specialist technical team manages full site delivery, machine commissioning, hydraulic system configuration, and comprehensive operator training — ensuring your TANA H380 is optimally set up for maximum compaction performance, machine safety, and operational efficiency from the very first shift at your UAE landfill facility.
Structured preventive maintenance programmes cover scheduled crushing teeth inspections and replacements, drum and hydraulic system servicing, transmission maintenance, diesel engine servicing, and full machine diagnostics — protecting your H380’s long-term compaction performance and controlling total landfill equipment operating costs across its full service life in UAE operating conditions.
Al Shirawi’s field service network covers all seven UAE emirates, providing rapid-response breakdown support, genuine spare parts delivery, and technical guidance wherever your TANA H380 heavy-duty landfill compactor is operating from the UAE’s largest municipal landfill facilities across Dubai and Abu Dhabi to major industrial waste disposal and waste management sites across every UAE emirate.
The TANA H380 heavy-duty landfill compactor and maximum-capacity solid waste compaction machine is the definitive landfill equipment choice for the UAE’s largest municipal waste management authorities, high-volume industrial waste disposal operators, and major environmental services contractors that require the greatest achievable compaction force, the widest compaction coverage per pass, and the absolute lowest total operating cost per tonne from a purpose-built heavy-duty landfill compactor handling the UAE’s largest daily incoming waste volumes across continuous multi-shift large-scale landfill operations. The H380 delivers superior compaction performance across large municipal solid waste landfills processing the highest daily tonnages of mixed household, commercial, and industrial waste, major industrial waste disposal facilities managing construction and demolition debris, bulky waste, and large-scale mixed industrial material, and UAE’s largest waste management facilities where maximising landfill density across the widest working faces, extending airspace lifespan across decades of operation, and minimising total waste management cost per tonne at maximum daily throughput are the primary operational and commercial priorities. Its asymmetric full-width twin-drum configuration, non-oscillating rigid frame, 186 kN crushing force, 535 BHP diesel engine, and TANA compaction guarantee make the H380 the undisputed heavy-duty landfill compaction equipment choice for any UAE facility where sheer compaction power, maximum working face coverage, and guaranteed airspace efficiency are the defining operational requirements.
| Requirement | TANA H260 | TANA H320 | TANA H380 |
|---|---|---|---|
| Operating Weight | 29,000 kg | 32,000 kg | 38,000 kg |
| Crushing Force | 127 kN | 157 kN | 186 kN — highest |
| Engine Power | 250 BHP | 325 BHP | 535 BHP — maximum |
| Front Compaction Width | 2,660 mm | 2,660 mm | 2,660 mm |
| Rear Compaction Width | 2,660 mm | 2,660 mm | 3,800 mm — widest |
| Compaction Guarantee | Min. 10% better | Min. 10% better | Min. 10% better |
| Best Suited For | Mid-scale landfills | Large-scale landfills | UAE’s largest landfills |
| UAE Aftersales Support | Yes | Yes | Yes |
The TANA H380 is the most powerful and highest-capacity landfill compactor in the TANA H Series range, and pricing reflects its premium heavy-duty specification and configuration options. As the authorised TANA distributor in the UAE since 2004, Al Shirawi Enterprises provides detailed, transparent price quotations tailored to your specific UAE landfill operational requirements and daily tonnage volumes. Contact our team today for a competitive price for the TANA H380 heavy-duty landfill compactor in the UAE.
The TANA H380 is the most powerful and heaviest compactor in the TANA H Series operating at 38,000 kg versus the H320’s 32,000 kg and the H260’s 29,000 kg, delivering 186 kN of crushing force versus 157 kN and 127 kN respectively, and powered by a 535 BHP engine versus 325 BHP and 250 BHP. Most significantly, the H380 features an asymmetric drum configuration with a wider 3,800 mm rear drum versus the 2,660 mm rear drum on the H260 and H320 providing the widest rear compaction coverage in the TANA H Series for maximum working face coverage per pass at the UAE’s largest landfill sites.
The H380’s asymmetric compaction width 2,660 mm front and 3,800 mm rear is an engineering feature that maximises productive compaction coverage per pass across large landfill working faces. The wider rear drum ensures that every forward pass leaves a wider compacted strip than the front drum’s entry path, reducing the total number of passes required to compact each landfill cell to maximum density and directly lowering daily fuel consumption, machine operating hours, and total compaction cost per tonne at UAE’s largest landfill sites.
Yes. The TANA H380 is specifically engineered for the UAE’s highest-volume municipal solid waste landfill operations delivering the greatest compaction force, widest working face coverage, and highest daily throughput capacity of any TANA H Series compactor. For UAE municipal waste management authorities managing the largest daily incoming waste tonnages, the H380 is the definitive heavy-duty landfill compaction equipment choice.
TANA’s non-oscillating rigid frame transfers the full 38,000 kg machine weight directly through the full-width drums and crushing teeth on every pass with no energy loss through frame articulation while the optimised crushing teeth penetrate and interlock waste layers to achieve maximum density. This engineering combination delivers TANA’s guaranteed minimum 10% better compaction density than alternative landfill compaction approaches, translating into measurable landfill airspace savings and lower total waste management cost per tonne for UAE operators.
Yes. Al Shirawi Enterprises has been the authorised TANA partner in the UAE since 2004, maintaining in-country stock of genuine TANA H380 crushing teeth, hydraulic components, drum parts, transmission components, and critical spare parts, and providing comprehensive aftersales support including preventive maintenance contracts, emergency breakdown response, and 24/7 technical assistance across all seven UAE emirates.
Lead times vary depending on current stock availability and configuration requirements. Al Shirawi Enterprises manages the complete procurement and delivery process for UAE customers including all import logistics, customs clearance, site delivery, and full machine commissioning. Contact our team for current availability and estimated delivery timelines for the TANA H380 heavy-duty landfill compactor in the UAE.
