KRONE Swadro S | TS Rotary Rake
- Working width range: 3.80 m – 9.70 m
- Power requirement: 19 hp – 80 hp
The Single-Rotor Rake Built for Slopes and Hilly Terrain | Exclusive KRONE Dealer

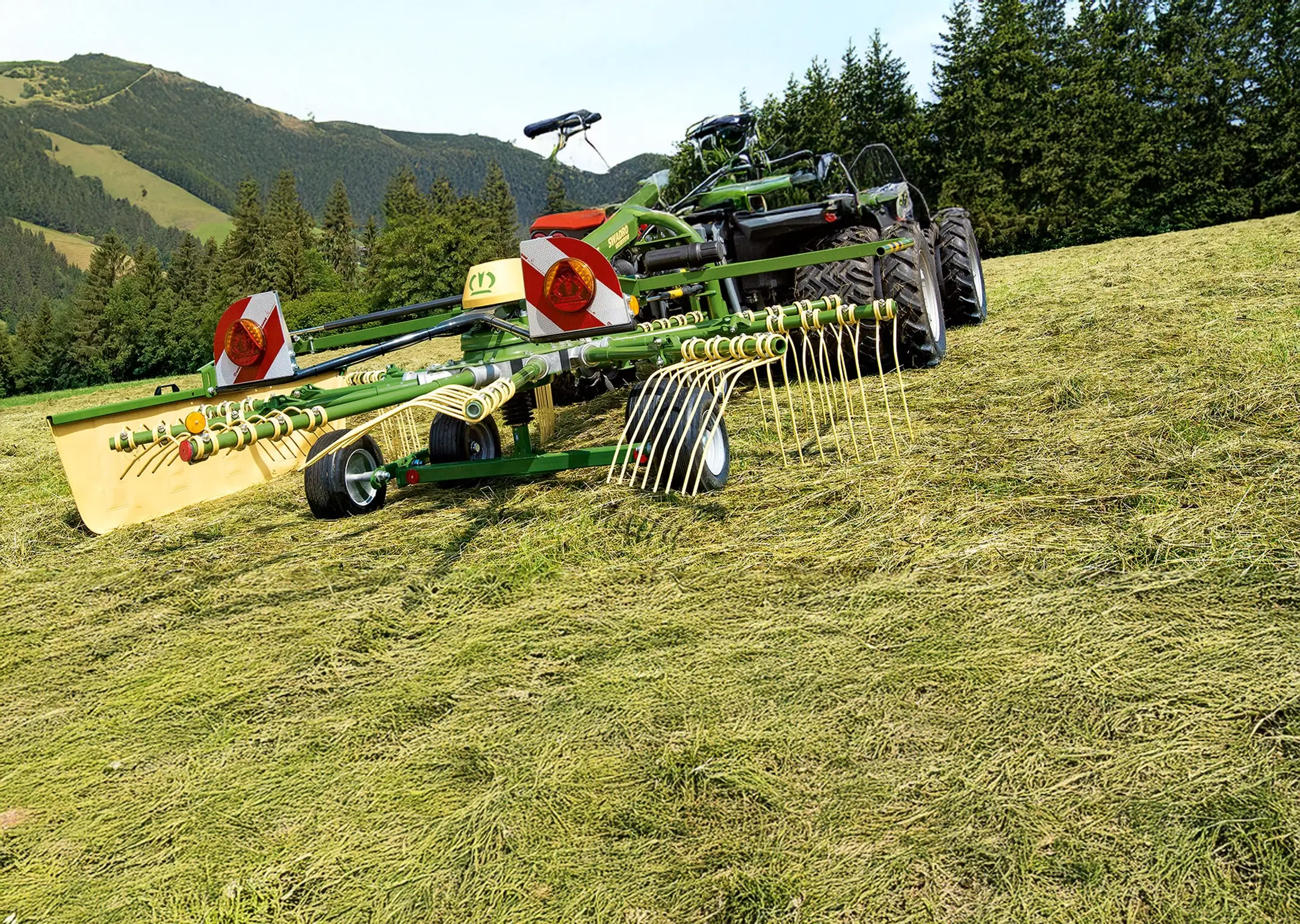

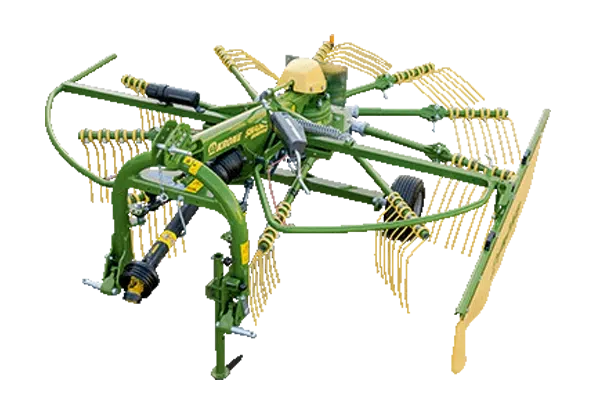

The KRONE Swadro S Highland is a single-rotor rake purpose-built for grassland management on slopes and in hilly regions, part of KRONE’s dedicated Highland range alongside the EasyCut Highland front mower and Vendro Highland tedder. Standard hydraulic damper braces with an integrated balancing arm keep the rake centred and stable behind the tractor on inclines, preventing it from sliding downhill when lifted into headland or transport position. The same KRONE Jet Effect used across the Swadro range still applies here — the leading bogie wheels touch down and lift off first, so tines never poke into the ground and forage stays clean.
As the exclusive authorised KRONE dealer in the UAE, Al Shirawi Enterprises can supply the Swadro S Highland along with genuine spare parts and after-sales support — best suited to operations working sloped or terraced land rather than typical flat UAE farmland.
| Model | Attachment | Working width (m) | Rotor diameter (m) | Area output (ha/h) | Power req. (kW/hp) | Tine arms/rotor |
|---|---|---|---|---|---|---|
| Swadro S 350 Highland | 3-point | 3.50 | 2.70 | up to 3.50 | 22 / 30 | 10 |
| Swadro S 380 Highland | 3-point | 3.80 | 2.96 | 3.50–4.00 | 22 / 30 | 10 |
Standard hydraulic damper braces and an integrated balancing arm keep the rake centred behind the tractor and prevent it sliding downhill on inclines.
Leading bogie wheels touch down and lift off first, so tines never dig into the ground even on uneven, sloped terrain.
A longer (510 mm), specially angled version of KRONE’s Lift Tine, optimised for the working conditions found on slopes and in mountainous regions.
The same maintenance-free rotor gearbox, permanently lubricated tine arm bearings, and DuraMax cam track used across the wider Swadro range.
Al Shirawi Enterprises is the exclusive authorised KRONE dealer in the UAE, supplying the full range of KRONE forage harvesting equipment — rotary rakes, mowers, tedders, balers, and forage wagons — backed by genuine parts and dedicated after-sales support.
Sole guarantee of certified technical support and warranty protection.
Full lifecycle backup to protect uptime through the harvest window.
Fast turnaround, no counterfeit-parts risk.
We bring the Swadro to your farm before you commit.
Where the Swadro S Highland Delivers Best Performance
| Requirement | Why It Matters | Swadro S Highland (Al Shirawi Enterprises) |
|---|---|---|
| Slope stability | Standard rakes can slide or mistrack on inclines when lifted | Standard hydraulic damper braces + balancing arm |
| Tine design | Generic tines can be less effective on angled, uneven ground | Highland Lift Tine — 510 mm, angled for slope conditions |
| Dealer authorisation | Determines warranty validity and genuine service access | Exclusive authorised KRONE dealer in UAE |
| Spare parts sourcing | Grey-market parts risk failure and void warranty | Genuine KRONE parts, stocked UAE-wide |
The Swadro S Highland is a single-rotor rotary rake designed specifically for grassland and forage work on slopes and in hilly or mountainous terrain, where a standard rake can mistrack or slide downhill when lifted. It’s part of KRONE’s wider Highland range, which also includes a front mower and tedder built for the same conditions.
Both are compact single-rotor, three-point-mounted rakes, but the Highland version adds standard hydraulic damper braces with an integrated balancing arm to keep the machine centred and stable on inclines, plus a longer, specially angled Highland Lift Tine. The standard Swadro S range (S 380/420/460) is built for flat-to-moderate terrain.
It depends on the terrain. Most UAE agricultural land is flat to gently undulating, where the standard Swadro S | TS range is the better fit. The Highland version is purpose-built for genuinely steep or hilly ground — relevant mainly for operations on sloped or terraced land. Contact Al Shirawi Enterprises to confirm which model suits your specific field conditions.
Yes. Al Shirawi Enterprises stocks genuine KRONE spare parts across the UAE and provides after-sales support for the full Swadro range.
Al Shirawi Enterprises is the exclusive authorised KRONE dealer in the UAE. Contact us at +971 4 371 8585 or submit a quote request online.
