Compact Double
- Maximum load capacity (total system): 100,000 kg.
- Maximum load weight per tray: 300 / 500 / 900 kg depending on configuration.
- Height range: 3,000 mm to 16,000 mm.
Swedish-Engineered Vertical Storage Lift for Sale in UAE | Al Shirawi Enterprises

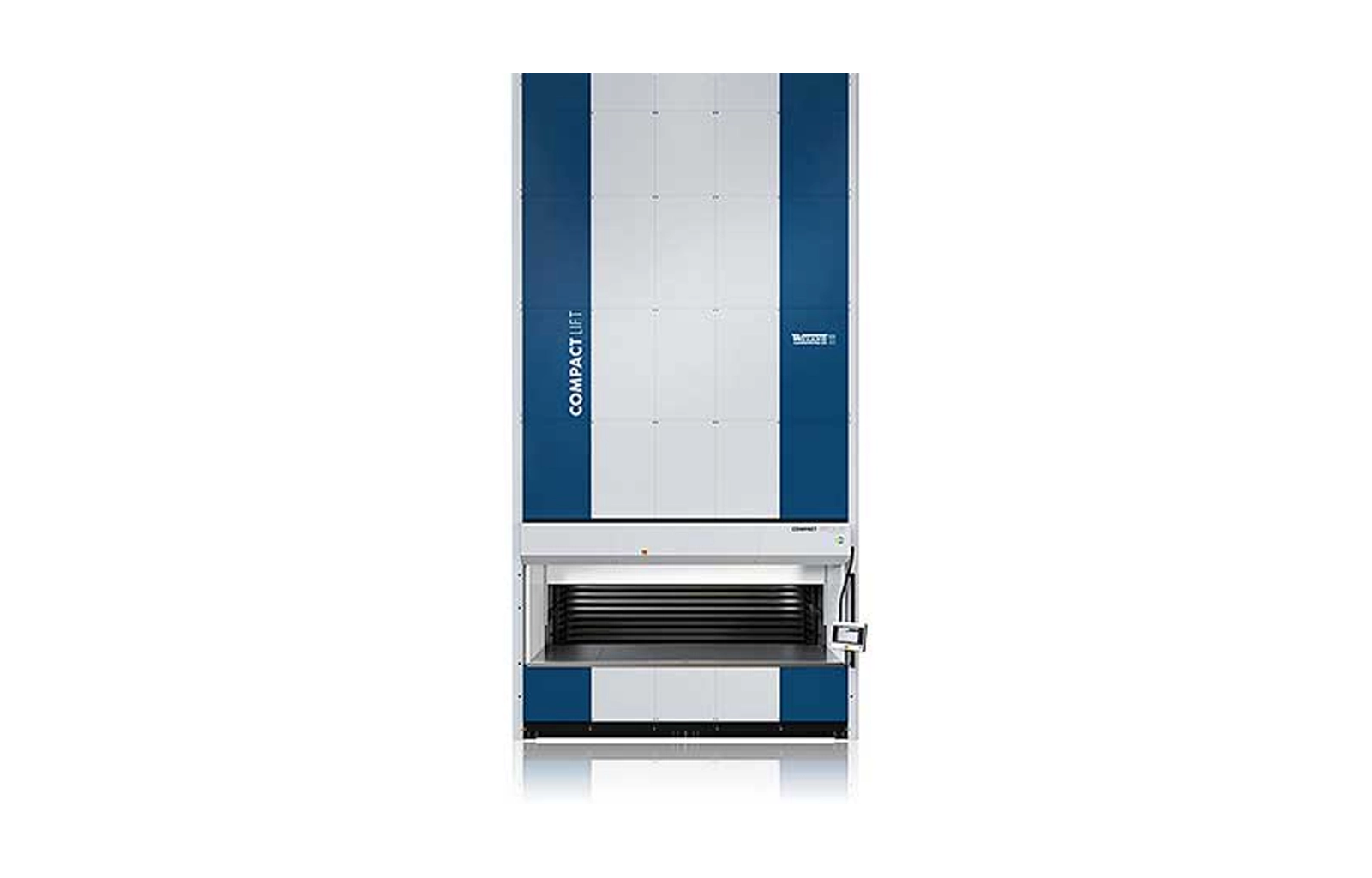

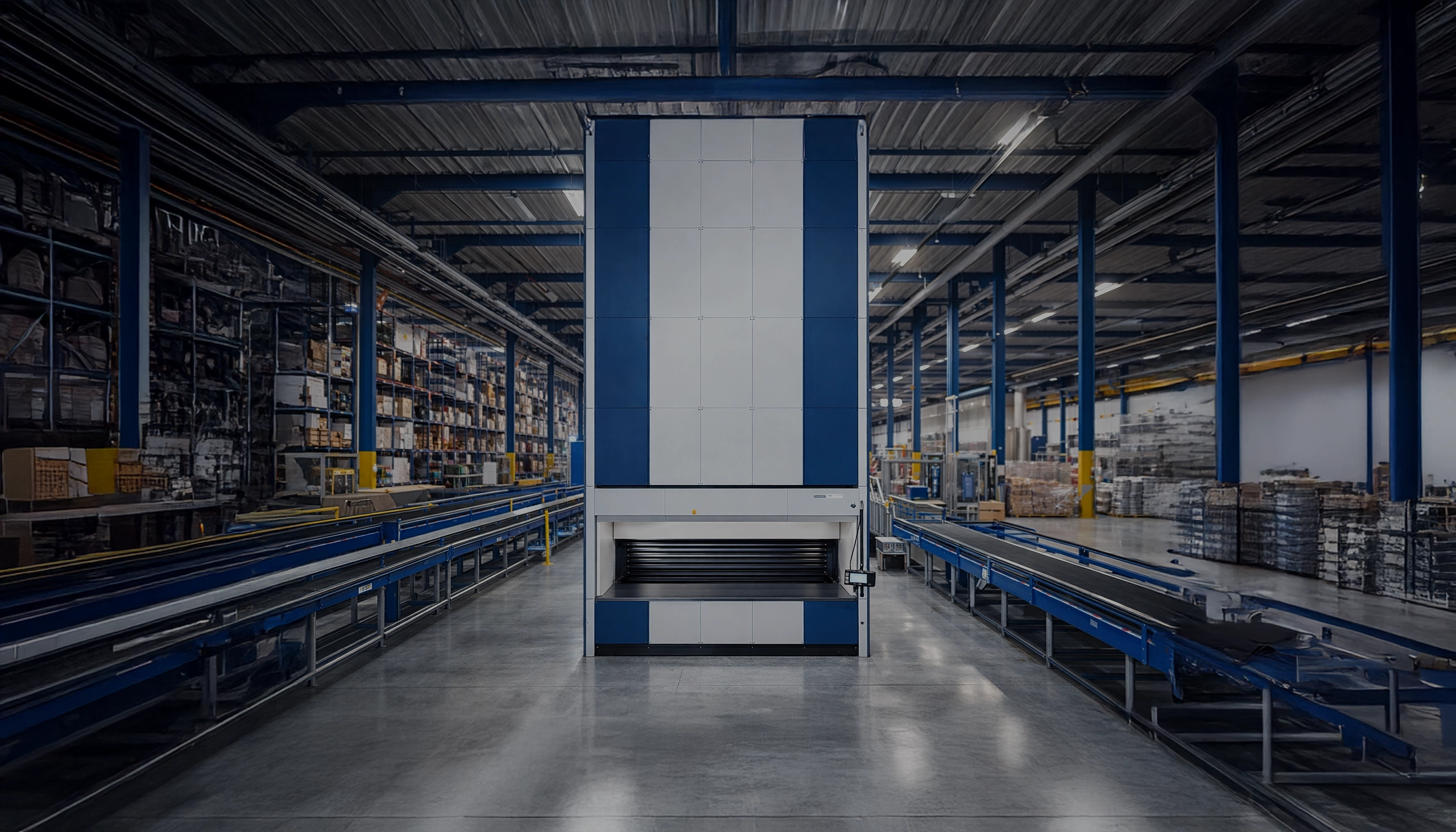

The Weland Compact Lift is a vertical lift module (VLM) that uses your ceiling height for storage. Trays sit in front and rear storage columns. A central extractor brings the tray you need to an ergonomic access opening, so staff no longer walk the aisles to pick goods. The result is a high-density vertical lift module storage system that frees up floor space, speeds up picking and keeps stock secure.
Weland Solutions has designed and built the Compact Lift in Sweden since 1999. A four-wheel drive system keeps trays stable even when they are loaded unevenly, and it positions loads with millimetre precision. The unit can be built to suit your building and handles both small parts and heavy, bulky goods.
Al Shirawi Enterprises supplies genuine Weland vertical storage lifts across the UAE, backed by after-sales support and genuine spare parts.
| Specification | Detail |
|---|---|
| Model | Weland Compact Lift (Single) |
| System Type | Vertical Lift Module (VLM) / Automated Storage & Retrieval System (ASRS) |
| Max. Total Load Capacity | 100,000 kg (100 tonnes) |
| Tray Load Capacity | 300 / 500 / 750 / 900 / 1,500 kg |
| Height Range | 3,000 – 16,000 mm |
| Overall Width | 1,697 – 6,929 mm |
| Overall Depth | 2,698 – 4,248 mm |
| Tray Width | 1,220 – 6,450 mm |
| Tray Depth | 670 – 1,230 mm |
| Goods Height Measurement | 25 mm increments (50 mm optional), up to 1,000 mm |
| Electrical Supply | 3-phase, 400 V AC, 50 Hz |
| Current Draw | 25 / 32 A |
| Operating Environment | 2–40 °C, 10–85% RH (non-condensing) |
Store goods vertically and recover warehouse floor area for other work
Goods-to-person delivery cuts walking and search time.
Trays carry anything from small components up to 1,500 kg loads.
Four-wheel operation keeps trays steady, even under uneven loads.
Password protection and user group rights limit access to authorized staff.
A safety curtain protects operators, and a weight check prevents tray
Connects to your host system for real-time inventory control.
Choose tray sizes and unit height to suit your facility, and combine several units as you grow.
Original equipment with full manufacturer specifications
Service that keeps uptime high and extends equipment life
Avoid the risks of non-original parts
Compact Lift, Compact Twin and Compact Double, all from one supplier
Warehouses, manufacturing plants, automotive workshops, retail distribution centres and industrial facilities that have limited floor space but spare ceiling height.
| Requirement | Why It Matters |
|---|---|
| Available ceiling height | Sets the unit height and total storage capacity |
| Tray load capacity | Must match your heaviest stored items |
| Tray width and depth | Should fit your parts, bins or Euro boxes |
| Picking frequency | Decides between Compact Lift (Single) and Compact Twin |
| ERP/WMS connectivity | Enables real-time inventory accuracy |
| Local after-sales support | Protects uptime in UAE operating conditions |
A VLM is an automated storage system. It stores goods on trays inside an enclosed unit and delivers the requested tray to an access opening, which saves floor space and speeds up picking.
Pricing depends on unit height, tray size, load capacity and optional extras. Contact Al Shirawi Enterprises for a tailored vertical lift module price quote.
Both are vertical lift module (VLM) systems. The Weland Compact Lift stands out with tray loads of up to 1,500 kg, a total capacity of up to 100 tonnes and four-wheel tray stability. That makes it a strong choice for businesses comparing a Modula vertical lift module or other Modula lift system options with heavy-duty alternatives.
Compact Lift, Compact Twin (for high picking rates) and Compact Double (for maximum storage density).
Yes. It can be connected to ERP or WMS host systems
