Compact Lift
- Maximum total load capacity: 100,000 kg.
- Tray (load-tray) load capacity: approx 300 kg to 1,500 kg.
- Standard height range: 3,000 mm to 16,000 mm.
Maximum Storage Density on the Smallest Footprint | Vertical Storage Lift for Sale in UAE

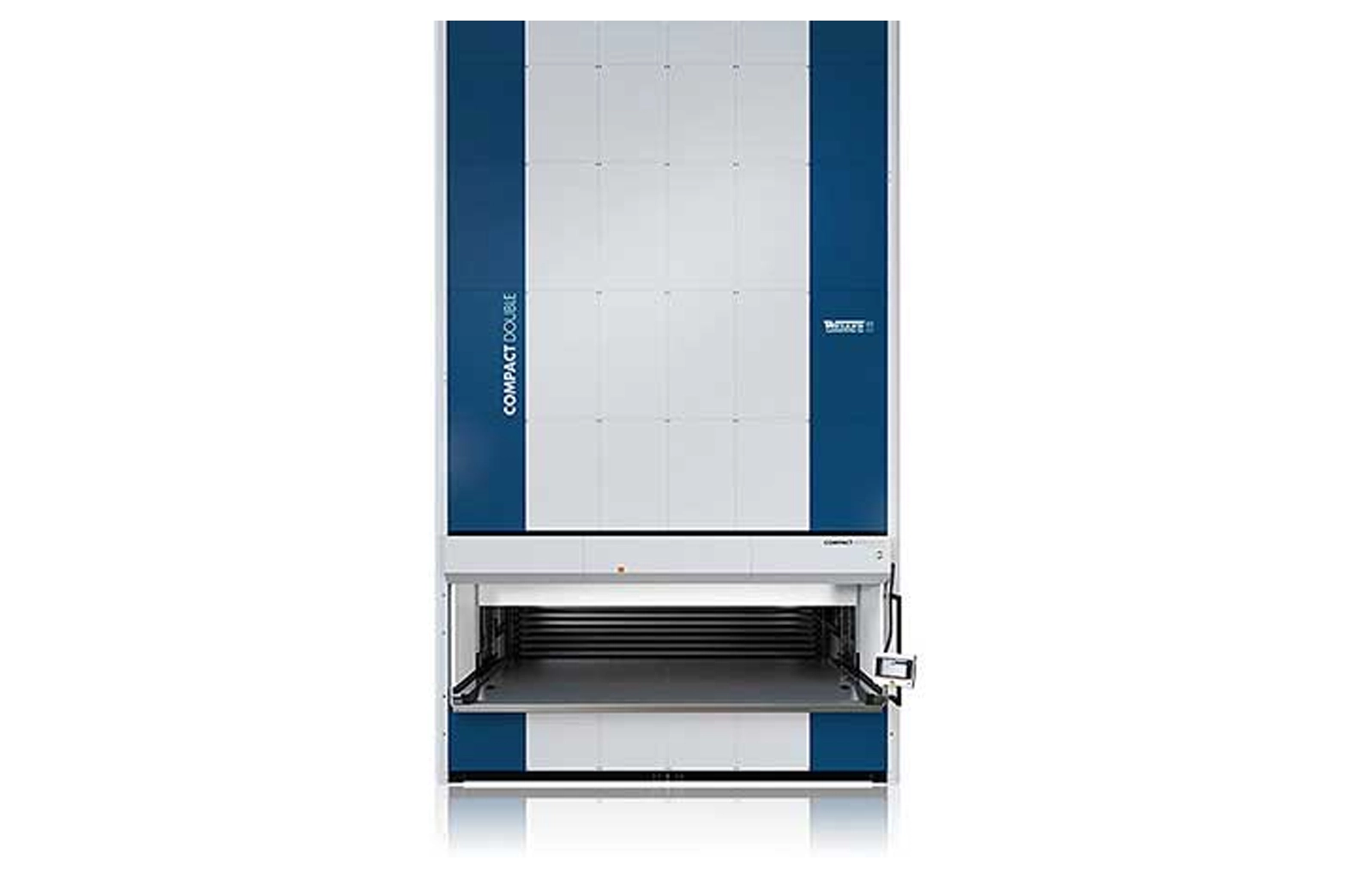

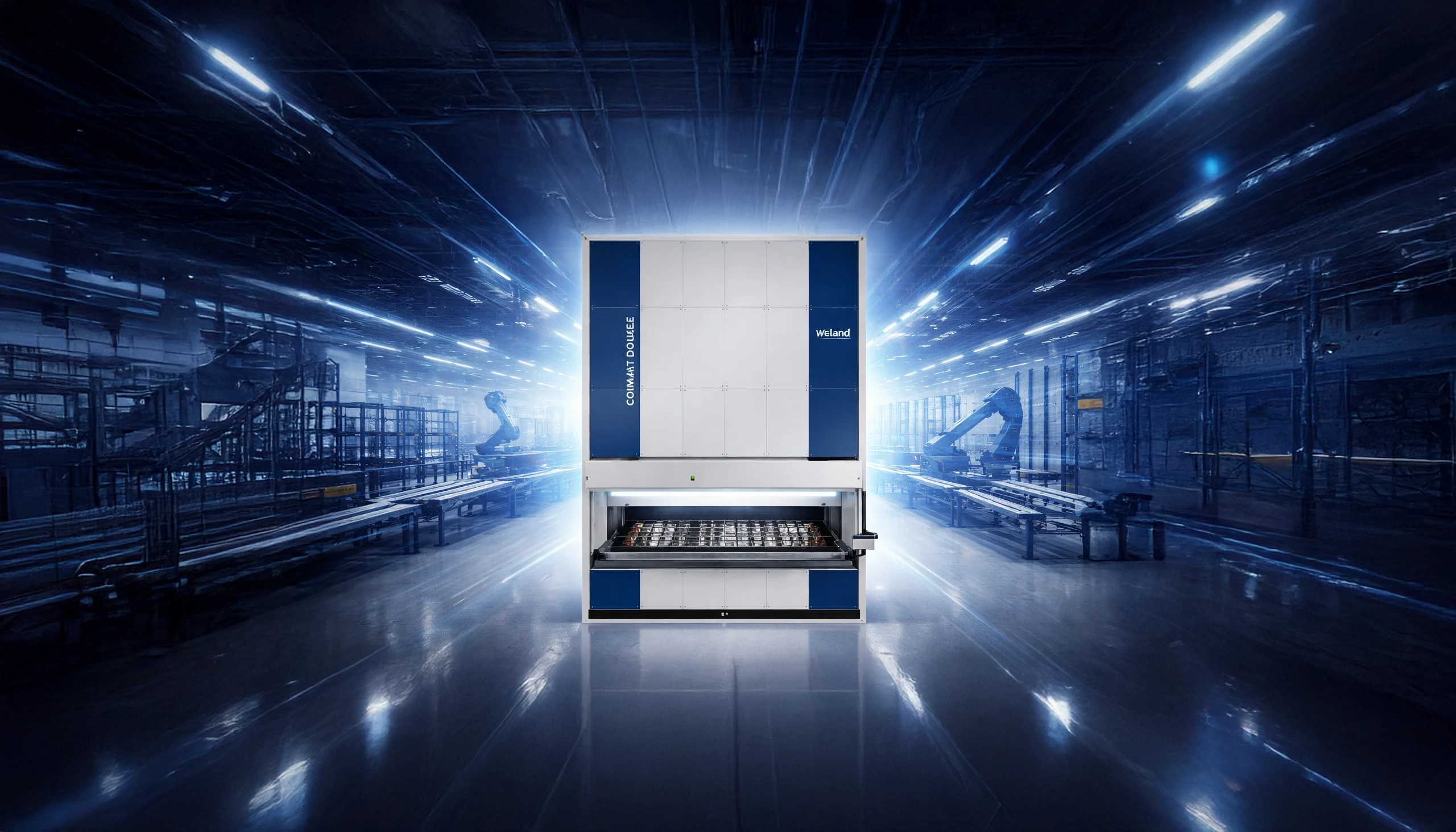

The Weland Compact Double is the most space-efficient model in the Weland range of vertical storage lifts. It is built for facilities where lack of floor space directly affects the business. This vertical lift module (VLM) stores trays two deep on every level and handles two trays at the same time.
Its twin function moves trays between storage positions, so trays in the inner row can still be retrieved quickly. A Compact Double holding twice as many trays takes up less floor space than two separate Compact Lifts with the same tray count. That means more stored goods for every square metre of your warehouse.
Al Shirawi Enterprises supplies genuine Weland vertical lift module storage systems across the UAE, with after-sales service and genuine Weland Solutions spare parts.
| Specification | Detail |
|---|---|
| Model | Weland Compact Double |
| System Type | Double-Depth Vertical Lift Module (VLM) / ASRS |
| Max. Total Load Capacity | 100,000 kg |
| Tray Load Capacity | 300 / 500 / 900 kg (depending on configuration) |
| Height Range | 3,000 – 16,000 mm |
| Overall Width | 2,307 – 6,929 mm |
| Module Depth | 4,898 – 5,370 mm (double-depth) |
| Tray Width | 1,830 – 6,450 mm |
| Goods Height Measurement | 25 mm intervals, up to 1,000 mm |
| Electrical Supply | 3-phase, 400 V AC, 50 Hz |
| Current Draw | 20 / 32 / 40 A |
| Operating Environment | 2–40 °C, 10–85% RH (non-condensing) |
Two rows of trays on every level double the storage area without doubling the footprint.
Handles two trays at once and moves them between positions to reach the inner row.
Keep fast-moving SKUs on the outer trays, and picking rates are comparable to the Compact Twin.
Takes less floor space than two separate units with the same capacity.
Password protection and user group rights limit access to authorized staff.
A safety curtain protects operators, and a weight check prevents tray
Options include a fire extinguishing system, ESD protection, retractable steps and fall protection. All can be retrofitted later.
Guide guards and measurement curtains help forklift operators place pallets accurately on the trays.
Original Swedish-engineered equipment
Focused on maximum uptime and long equipment life
No risk from non-original parts
Compact Lift, Compact Twin and Compact Double, all from one supplier
Facilities with very limited floor space and large numbers of SKUs, such as warehouses, logistics hubs, manufacturing plants, automotive workshops and retail distribution centres.
| Model | Best For |
|---|---|
| Compact Lift | Flexible all-round storage, including heavy trays up to 1,500 kg |
| Compact Twin | High picking rates with no waiting time |
| Compact Double | Maximum storage density on the smallest footprint |
It is a VLM that stores two trays deep on each level. The extractor moves the outer tray to reach the inner one, which roughly doubles storage on the same footprint.
Pricing depends on unit height, tray width, load capacity and optional extras. Contact Al Shirawi Enterprises for a tailored vertical lift module price quote.
Both are vertical lift module (VLM) systems. The Compact Double’s double-depth tray design is aimed at businesses that put storage density first, which makes it a strong alternative for buyers comparing a Modula lift system.
If fast-moving items are kept on the outer trays, picking rates are comparable to the Compact Twin.
