CITIFRESH 280 – Light Vehicles Refrigeration Unit
- Capacity: 1,900 W (4°C / 30°C)
- Airflow: 1150 m³/h
- Dimensions: 769 × 550 × 206 mm

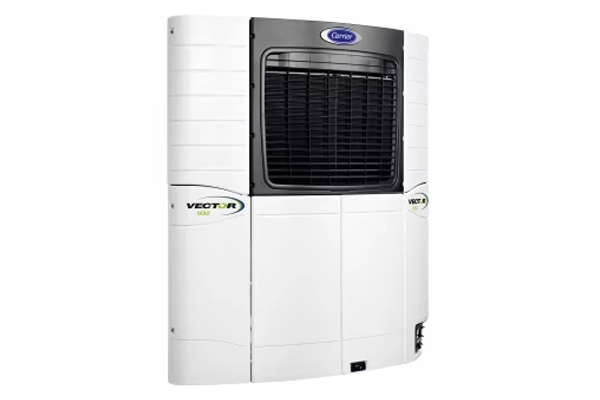

The Carrier VECTOR 1950 is a premium high-capacity trailer refrigeration unit engineered for intensive distribution, multi-temperature transport, and temperature-sensitive logistics operations. Powered by Carrier’s patented E-Drive™ all-electric refrigeration technology, the VECTOR 1950 delivers superior cooling performance, precise temperature control, and optimized airflow management for demanding refrigerated transport applications.
Designed for multi-drop deliveries and multiple door opening operations, the VECTOR 1950 combines high refrigeration capacity with flexible compartment configuration to support both fresh and frozen goods transportation. Its advanced electric architecture enables simultaneous cooling and heating across multiple compartments, ensuring stable temperature management and reliable cold chain protection throughout transport operations.
With cooling capacities up to 18,875 W and airflow performance reaching 5,700 m³/hr, the VECTOR 1950 is ideal for supermarket distribution, pharmaceutical logistics, food transport, and high-volume refrigerated trailer applications. The unit also offers Piek-certified low-noise city versions for urban deliveries while reducing fuel consumption, maintenance requirements, and environmental impact compared to conventional belt-driven refrigeration systems.
| Category | Specification | Value |
|---|---|---|
| Cooling Capacity (Nominal) | Diesel – Very High Speed 0°C / 30°C | 19,500 W |
| Diesel – Very High Speed -20°C / 30°C | 10,400 W | |
| Diesel – High Speed 0°C / 30°C | 17,400 W | |
| Diesel – High Speed -20°C / 30°C | 9,400 W | |
| Diesel – Low Speed 0°C / 30°C | 14,200 W | |
| Diesel – Low Speed -20°C / 30°C | 8,100 W | |
| Standby – 400V/3/50 Hz 0°C / 30°C | 15,400 W | |
| Standby – 400V/3/50 Hz -20°C / 30°C | 8,900 W | |
| Heating Capacity | Diesel | 10,500 W |
| Standby – 400V/3/50 Hz | 6,200 W | |
| Airflow | Diesel | 6,500 m³/h |
| 400V/3/50Hz | 5,400 m³/h | |
| ATP Compliance | ATP Certification | FRC |
| Weight | Total Weight | 820 kg |
| Dimensions | Height | 2,280 mm |
| Width | 2,100 mm | |
| Depth | 450 mm | |
| Box Size Recommendation | +0°C / +30°C | 120 m³ |
| +0°C / +40°C | 108 m³ | |
| -20°C / +30°C | 102 m³ | |
| -20°C / +40°C | 92 m³ | |
| Sound Emission | Sound Power (Lwa) | 100 dB |
| Diesel – High Speed Pressure | 73.0 dB | |
| Diesel – Low Speed Pressure | 69.0 dB | |
| Standby – 400V/3/50 Hz Pressure | 64.0 dB | |
| Components | Engine Displacement | 1,498 cc |
| Engine Cylinders | 4 | |
| Compressor Technology | Scroll | |
| Compressor Model | ZF24 | |
| Controls | Logicold | |
| Refrigerant | Refrigerant Type | R452A |
| Refrigerant Charge | 6.5 kg |
