KRONE Swadro S | TS Rotary Rake
- Working width range: 3.80 m – 9.70 m
- Power requirement: 19 hp – 80 hp
The Widest Range of Centre-Delivery Rotary Rakes for Sale in UAE | Exclusive KRONE Dealer

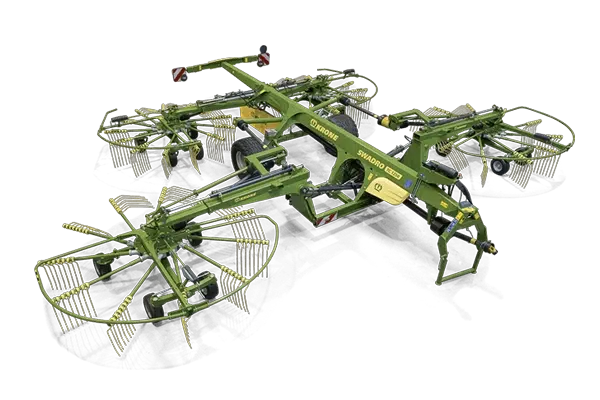

The KRONE Swadro TC is the widest range of centre-delivery rotary rakes on the market — from the compact twin-rotor Swadro TC 640 for smaller and mountainous fields, through to the Swadro TC 2000 Pro, the world’s only six-rotor rake, built for maximum acreage output and harvester recovery performance. Every Swadro TC uses KRONE’s Jet Effect suspension, DuraMax cam track, and Lift Tines to produce large, high-volume swaths with minimal crop contamination — ideal for high-throughput forage operations feeding balers, forage wagons, or forage harvesters.
As the exclusive authorised KRONE dealer in the UAE, Al Shirawi Enterprises supplies the complete Swadro TC range along with genuine spare parts and after-sales support across Dubai, Abu Dhabi, Sharjah, and Ras Al Khaimah.
| Model | Type | Attachment | Swath width (m) | Work width (m) | Rotor diameter (m) | Tine arms/rotor | Power req. (kW/hp) |
|---|---|---|---|---|---|---|---|
| Swadro TC 640 | Twin-rotor | Drawbar | 1.00–1.70 | 5.70–6.40 | 2.70 | 2 × 10 | 22 / 35 |
| Swadro TC 680 | Twin-rotor | Drawbar | 1.00 | 6.80 | 3.30 | 2 × 10 | 37 / 50 |
| Swadro TC 760 | Twin-rotor | Drawbar | 1.00–1.80 | 6.80–7.60 | 3.30 | 2 × 13 | 37 / 50 |
| Swadro TC 880 | Twin-rotor | Drawbar | 1.30–2.50 | 7.60–8.80 | 3.60 | 2 × 13 | 40 / 55 |
| Swadro BaleTrain TC 880 Pro | Twin-rotor (rake + baler combo) | Drawbar | 1.30–2.50 | 7.60–8.80 | 3.00 | 2 × 13 | 37 / 50 |
| Swadro TC 930 | Twin-rotor | Drawbar | 1.30–2.50 | 8.10–9.30 | 3.80 | 2 × 15 | 51 / 70 |
| Swadro TC 1000 | Twin-rotor | Drawbar | 1.30–2.50 | 8.90–10.00 | 4.20 | 2 × 15 | 51 / 70 |
| Swadro TC 1250 | Four-rotor | Drawbar | 1.20–2.20 | 9.80–12.50 | 3.30 | 2×11 / 2×13 | 59 / 80 |
| Swadro TC 1250 Pro | Four-rotor | Drawbar | 1.20–2.20 | 9.80–12.50 | 3.00 | 2×11 / 2×13 | 59 / 80 |
| Swadro TC 1370 Pro | Four-rotor | Drawbar | 1.20–2.60 | 10.80–13.70 | 3.60 | 4 × 13 | 59 / 80 |
| Swadro TC 1570 Pro | Four-rotor | Drawbar | 1.20–2.70 | 11.00–15.70 | 3.80 | 4 × 15 | 81 / 110 |
| Swadro TC 2000 Pro | Six-rotor | Drawbar | 1.60–2.80 | 10.00–19.00 | 3.30 | 4×13 / 2×15 | 96 / 130 |
From the compact TC 640 (5.70 m) to the world’s only six-rotor rake, the TC 2000 Pro (up to 19.00 m).
The Swadro TC 2000 Pro delivers up to 20 ha/h and boosts downstream harvester recovery performance by up to 15%.
Tines never dig into the ground on lift and lower, protecting the sward and keeping forage free of soil contamination.
DLG-verified to cut raw-ash contamination to under 9% and reduce raking losses versus other tine systems.
Maintenance-free, Bainite-hardened, the steepest cam track on the market for perfect, boxy swaths.
Leading rotors run ~25% faster than rear rotors, presenting a wider mat so rear rotors form fluffy, boxy swaths without roping.
Hydraulic width adjustment on most models lets you match swath volume exactly to your baler, forage wagon, or forage harvester intake.
A rake and round baler combined into a single-pass, single-operator unit for maximum process efficiency.
Al Shirawi Enterprises is the exclusive authorised KRONE dealer in the UAE, supplying the full range of KRONE forage harvesting equipment — rotary rakes, mowers, tedders, balers, and forage wagons — backed by genuine parts and dedicated after-sales support.
Sole guarantee of certified technical support and warranty protection.
Full lifecycle backup to protect uptime through the harvest window.
Fast turnaround, no counterfeit-parts risk.
We bring the Swadro to your farm before you commit.
Where the Swadro TC Delivers Best Performance
| Requirement | Why It Matters | Swadro TC (Al Shirawi Enterprises) |
|---|---|---|
| Tine technology | Determines forage cleanliness and contamination levels | KRONE Lift Tines — DLG-verified <9% raw-ash contamination |
| Dealer authorisation | Determines warranty validity and genuine service access | Exclusive authorised KRONE dealer in UAE |
| Spare parts sourcing | Grey-market parts risk failure and void warranty | Genuine KRONE parts, stocked UAE-wide |
| Model range depth | Wrong working width wastes tractor power or harvest time | Twin/four/six-rotor models, 5.70 m–19.00 m |
| Acreage output | Directly affects how much ground you cover per harvest window | Up to 20 ha/h on the six-rotor TC 2000 Pro |
| After-sales service | Directly affects machine uptime during narrow harvest windows | Dedicated after-sales and on-farm support |

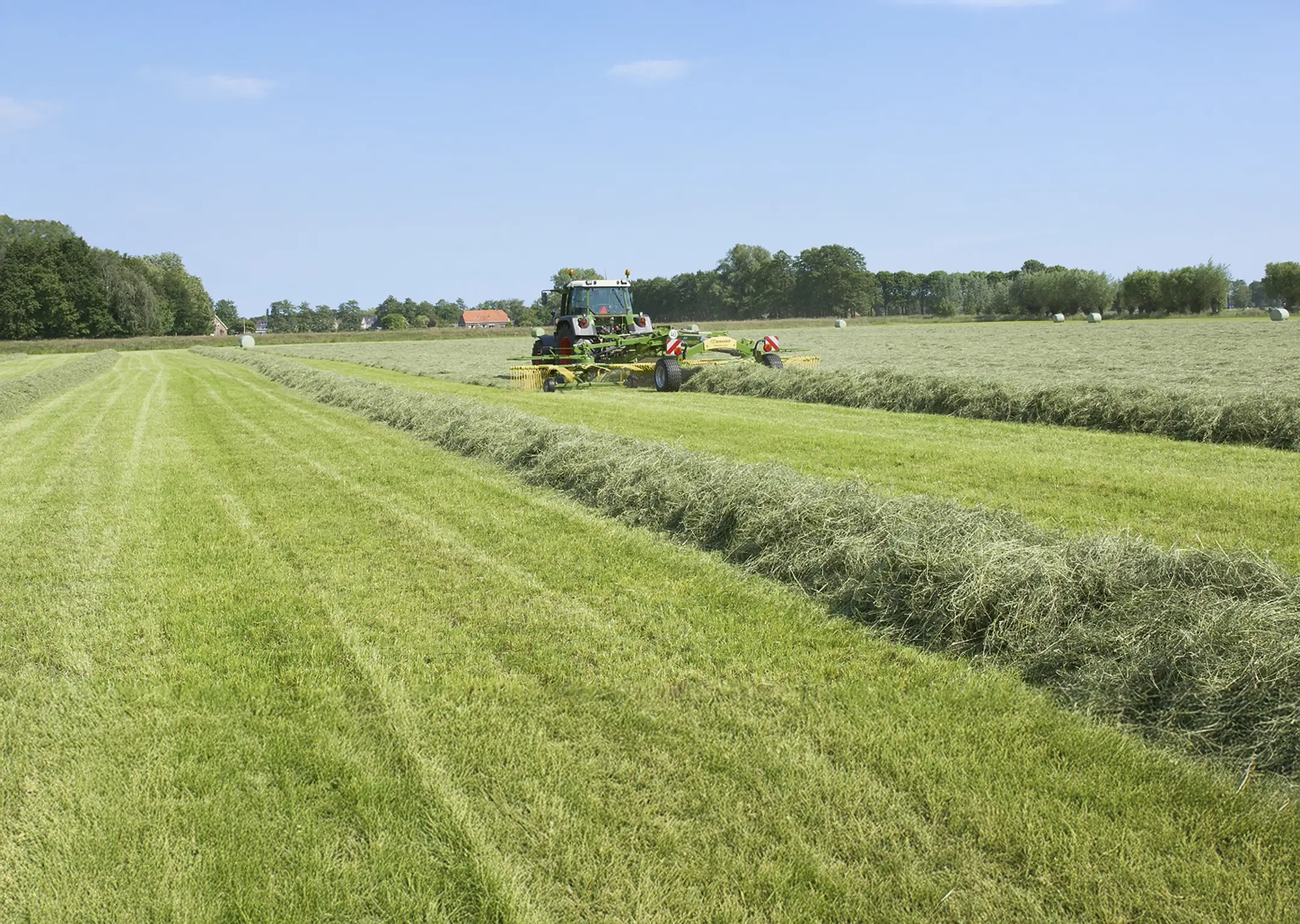

The Swadro TC is a centre-delivery rotary rake that gathers cut forage into a single large swath in the middle of the machine’s working path, ready for a baler, forage wagon, or forage harvester. It’s built for higher-throughput operations than the side-delivery Swadro S | TS range, with working widths from 5.70 m up to 19.00 m.
Pricing depends on the model, working width, and optional equipment (hydraulic width control, electric rotor height adjustment, tyre package, ISOBUS terminal, etc.). Contact Al Shirawi Enterprises directly at +971 4 371 8585 or submit a quote request online for a model-specific commercial offer.
Al Shirawi Enterprises is the exclusive authorised KRONE dealer in the UAE, with sales and service coverage across Dubai, Abu Dhabi, Sharjah, Al Ain, and Ras Al Khaimah.
Swadro S | TS models are side-delivery rakes (single or twin rotor) that form a swath to one side of the machine. Swadro TC models are centre-delivery rakes (twin, four, or six rotor) that gather forage into a large swath directly behind the machine, built for higher-capacity operations and larger working widths — up to 19.00 m on the six-rotor TC 2000 Pro.
It depends on field size, tractor horsepower, and the harvester you’re feeding. The TC 640–1000 twin-rotor models suit small-to-medium operations; the TC 1250–1570 Pro four-rotor models suit larger commercial farms; the TC 2000 Pro six-rotor model is built for contractors and large-scale operations needing maximum acreage output. Contact our team for a recommendation based on your operation.
Yes. The maintenance-free, permanently-greased rotor gearboxes and sealed DuraMax cam track are built to run reliably in demanding, high-heat conditions with minimal service interruption — important during the UAE’s narrow harvest windows.
Yes. Al Shirawi Enterprises stocks genuine KRONE spare parts across the UAE and provides scheduled maintenance and on-site service support for the full Swadro range.
It’s a combined rake-and-baler unit that swathes and bales forage in a single pass. A modified Swadro TC 880 twin-rotor rake couples directly to a KRONE round baler via a K80 ball-head hitch, letting one operator complete two harvesting steps in one operation.
