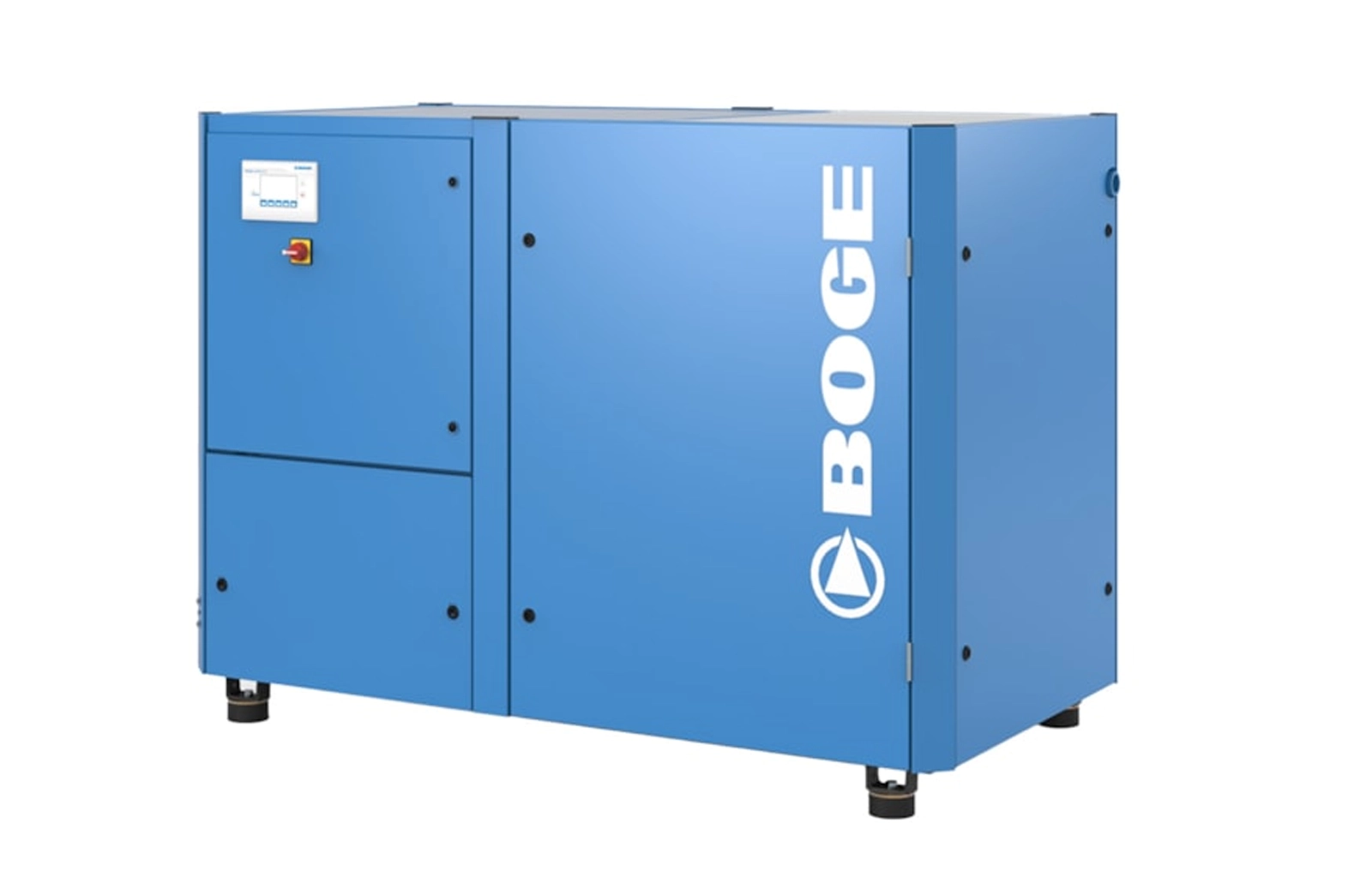

S-3 Series – BOGE Screw Compressor

S-3 Series – BOGE Screw Compressor

  • Power Range: 22 – 315 kW
  • Pressure Range: 7.5 – 13 bar
  • Screw compressor, oil lubricated.
Get a Quote
S-3 Series – BOGE Screw Compressor

Technical Data

BOGE Type Max Pressure (psig) Effective Free Air Delivery (cfm) Rated Output (hp) Main Drive (hp) Dimensions (W × D × H inches) Compressed Air Outlet (ANSI) Weight Silenced (lbs) Weight Super Silenced (lbs)
S 40-3 N 100 192 40 1.0 64 × 39 × 57 NPT 1 1/4 1857 –
S 40-3 N 115 184 40 1.0 64 × 39 × 57 NPT 1 1/4 1857 –
S 40-3 N 125 184 40 1.0 64 × 39 × 57 NPT 1 1/4 1857 –
S 40-3 N 150 167 40 1.0 64 × 39 × 57 NPT 1 1/4 1857 –
S 40-3 N 190 140 40 1.0 64 × 39 × 57 NPT 1 1/4 1857 –
SLF 40-3 N 100 48–196 40 1.0 73 × 39 × 57 NPT 1 1/4 1863 –
SLF 40-3 N 115 46–188 40 1.0 73 × 39 × 57 NPT 1 1/4 1863 –
SLF 40-3 N 125 46–188 40 1.0 73 × 39 × 57 NPT 1 1/4 1863 –
SLF 40-3 N 150 46–168 40 1.0 73 × 39 × 57 NPT 1 1/4 1863 –
SLF 40-3 N 190 44–148 40 1.0 73 × 39 × 57 NPT 1 1/4 1863 –
S 50-3 N 100 240 50 2.0 64 × 39 × 57 NPT 1 1/4 1859 1925
S 50-3 N 115 225 50 2.0 64 × 39 × 57 NPT 1 1/4 1859 1925
S 50-3 N 125 225 50 2.0 64 × 39 × 57 NPT 1 1/4 1859 1925
S 50-3 N 150 205 50 2.0 64 × 39 × 57 NPT 1 1/4 1859 1925
S 50-3 N 190 175 50 2.0 64 × 39 × 57 NPT 1 1/4 1859 1925
SLF 51-3 N 100 87–264 50 1.5 81 × 42 × 58 NPT 1 1/2 2756 2866
SLF 51-3 N 115 83–253 50 1.5 81 × 42 × 58 NPT 1 1/2 2756 2866
SLF 51-3 N 125 83–253 50 1.5 81 × 42 × 58 NPT 1 1/2 2756 2866
SLF 51-3 N 150 79–223 50 1.5 81 × 42 × 58 NPT 1 1/2 2756 2866
SLF 51-3 N 190 75–182 50 1.5 81 × 42 × 58 NPT 1 1/2 2756 2866
