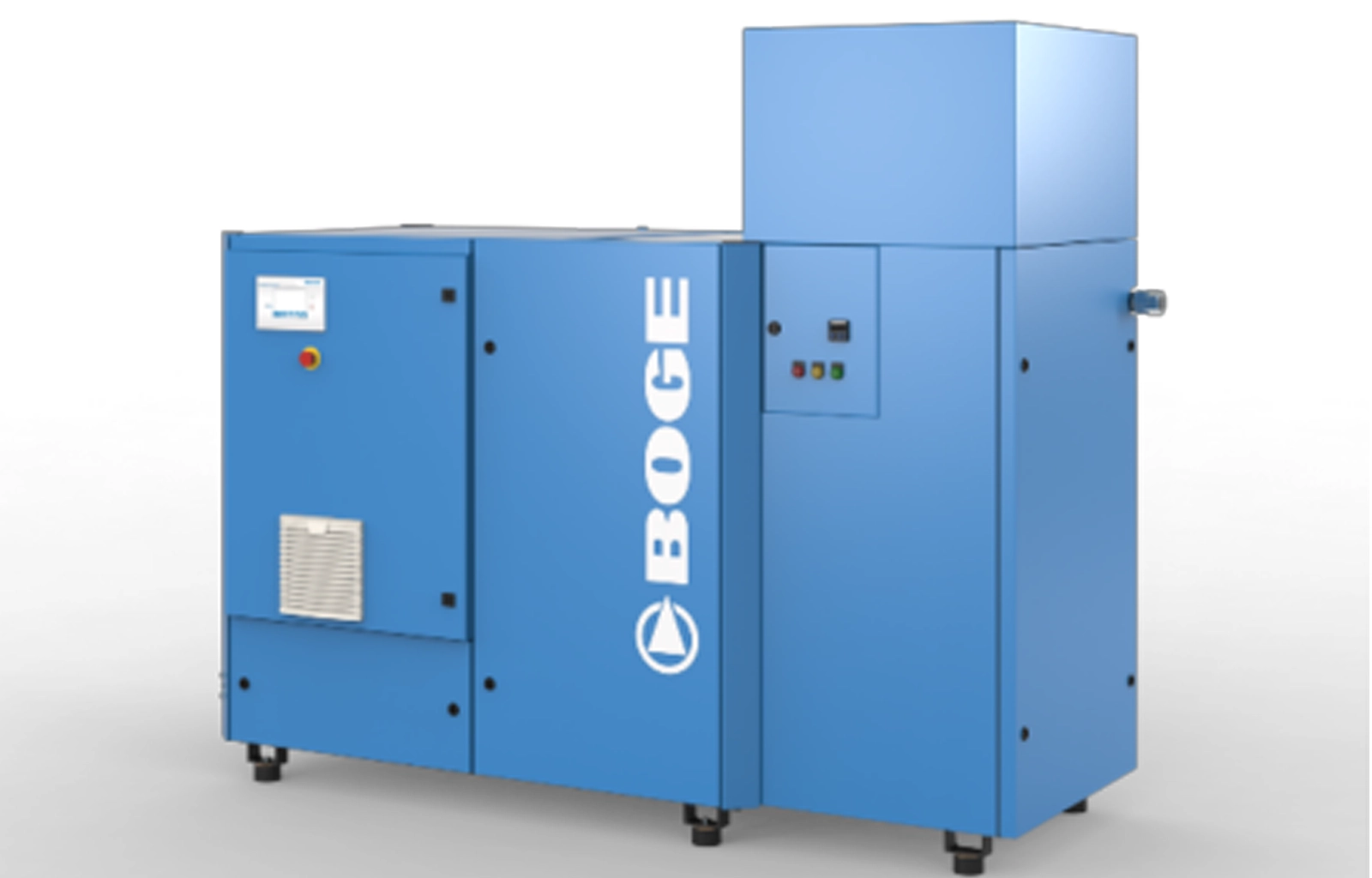

C Series – BOGE Screw Compressor
- Power Range: 2.2 – 22 kW
- Pressure Range: 7.5 – 13 bar
- Design: Compact, low-noise
| BOGE | Max Pressure | Effective Delivery Volume 50 Hz | Motor Power | Dimensions (W × H × D) | Weight | |||
|---|---|---|---|---|---|---|---|---|
| type | bar | psig | m³/min | cfm | kW | hp | mm | kg |
| S 40-3 bluekat | 8 | 115 | 5.310 | 187.5 | 30 | 40 | 2310 × 960 × 1960 | 1100 |
| S 40-3 bluekat | 10 | 150 | 4.770 | 168.5 | 30 | 40 | 2310 × 960 × 1960 | 1100 |
| S 40-3 bluekat | 13 | 190 | 3.860 | 136.3 | 30 | 40 | 2310 × 960 × 1960 | 1100 |
| S 50-3 bluekat | 8 | 115 | 6.320 | 223.2 | 37 | 50 | 2310 × 960 × 1960 | 1320 |
| S 50-3 bluekat | 10 | 150 | 5.610 | 198.1 | 37 | 50 | 2310 × 960 × 1960 | 1320 |
| S 50-3 bluekat | 13 | 190 | 4.720 | 166.7 | 37 | 50 | 2310 × 960 × 1960 | 1320 |
| S 60-3 bluekat | 8 | 115 | 7.300 | 257.8 | 45 | 60 | 2310 × 960 × 1960 | 1470 |
| S 60-3 bluekat | 10 | 150 | 6.530 | 230.6 | 45 | 60 | 2310 × 960 × 1960 | 1470 |
| S 60-3 bluekat | 13 | 190 | 5.330 | 188.2 | 45 | 60 | 2310 × 960 × 1960 | 1470 |
