Citimax 280 – Light Commercial Vehicles Refrigeration Units
- Heating Capacity: 18°C / -18°C (W)
- Displacement: 147 cm³
- Dimensions: 769 × 206 × 550 mm

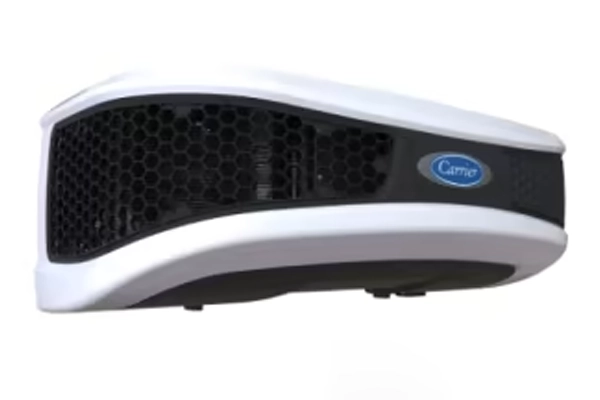

The Carrier SUPRA HE6 is a high-efficiency truck refrigeration unit designed for urban and regional refrigerated distribution operations. Combining semi-electric technology with variable speed fan systems, the SUPRA HE6 delivers reliable cooling performance, reduced fuel consumption, and quieter operation for temperature-controlled transport applications.
Engineered for high ambient environments up to +55°C, the unit offers dependable refrigeration for chilled and frozen goods transportation. Its lightweight and compact design improves vehicle efficiency while reducing maintenance requirements and operating costs. The SUPRA HE6 is ideal for food distribution, pharmaceutical logistics, dairy transport, and multi-drop delivery operations.
| Category | Specification | Value |
|---|---|---|
| Cooling Capacity | Nominal | |
| Diesel – High Speed 0°C / 30°C | 6,300 W | |
| Diesel – High Speed -20°C / 30°C | 3,570 W | |
| Diesel – Low Speed 0°C / 30°C | 4,320 W | |
| Diesel – Low Speed -20°C / 30°C | 3,090 W | |
| Standby – 400V/3/50 Hz 0°C / 30°C | 5,030 W | |
| Standby – 400V/3/50 Hz -20°C / 30°C | 2,760 W | |
| Heating Capacity | Diesel Heating | 4,180 W |
| Standby – 400V/3/50 Hz Heating | 2,070 W | |
| Airflow | Diesel Operation | 2,571 m³/hr |
| 400V/3/50Hz Operation | 2,571 m³/hr | |
| ATP Compliance | Certification | M956 |
| Weight | Total Weight | 431 kg |
| Dimensions | Height | 615 mm |
| Width | 1,914 mm | |
| Depth | 815 mm | |
| Box Size Recommendation | +0°C / +30°C | 52 m³ |
| +0°C / +40°C | 38 m³ | |
| -20°C / +30°C | 41 m³ | |
| -20°C / +40°C | 33 m³ | |
| Sound Emission | Sound Power (Lwa) | 95.0 dB |
| Diesel – High Speed Pressure | 67.0 dB | |
| Diesel – Low Speed Pressure | – | |
| Standby – 400V/3/50 Hz Pressure | 59.9 dB | |
| Components | Engine Displacement | 482 cc |
| Engine Cylinders | 2 | |
| Motor Voltage | 400V/3/50Hz | |
| Motor Power | 5.5 kW | |
| Compressor Technology | Reciprocating | |
| Compressor Model | O5K2 | |
| Controls | APX | |
| Refrigerant | Refrigerant Type | R452A |
| Refrigerant Charge | 3.0 kg |
