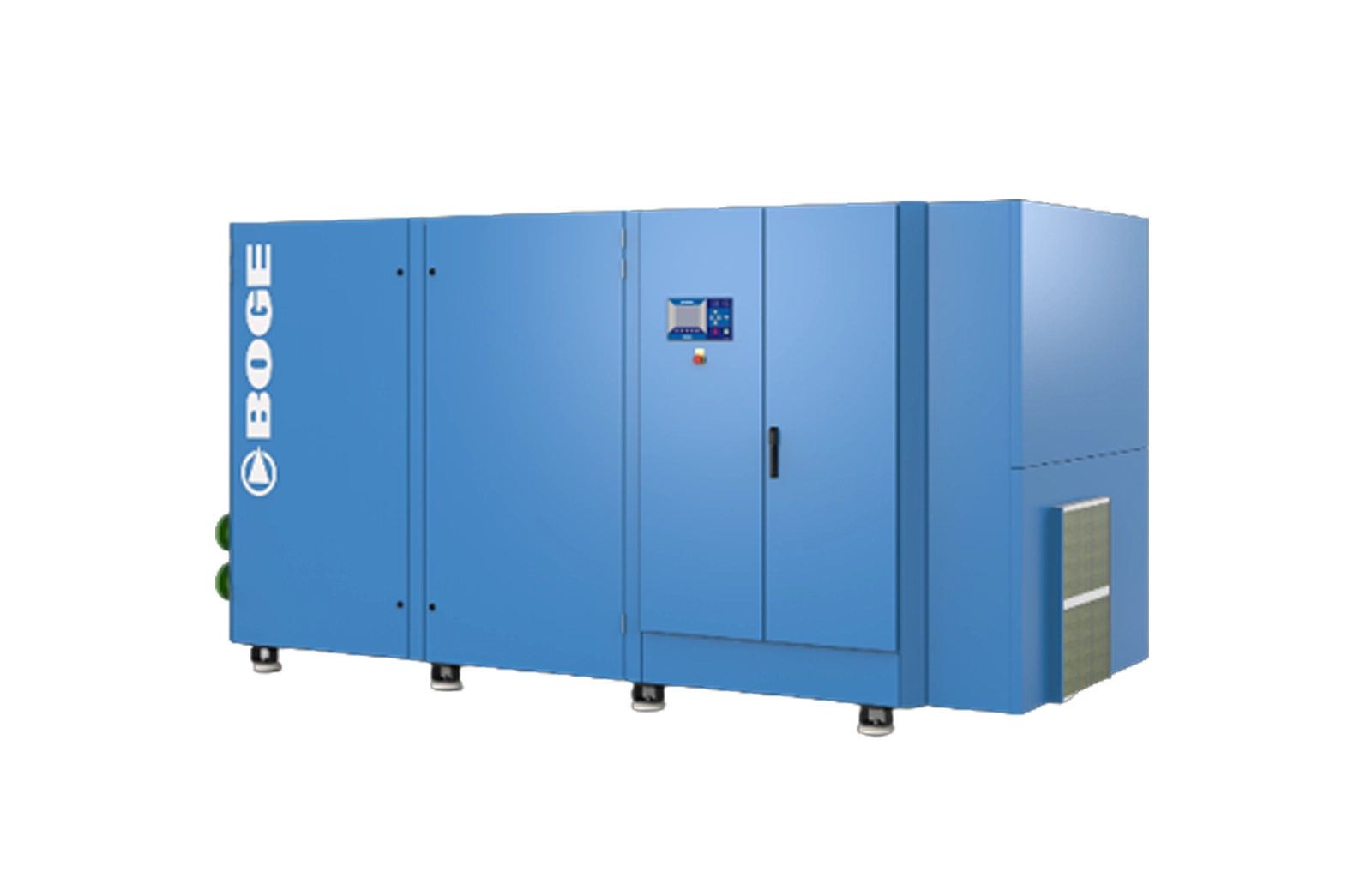

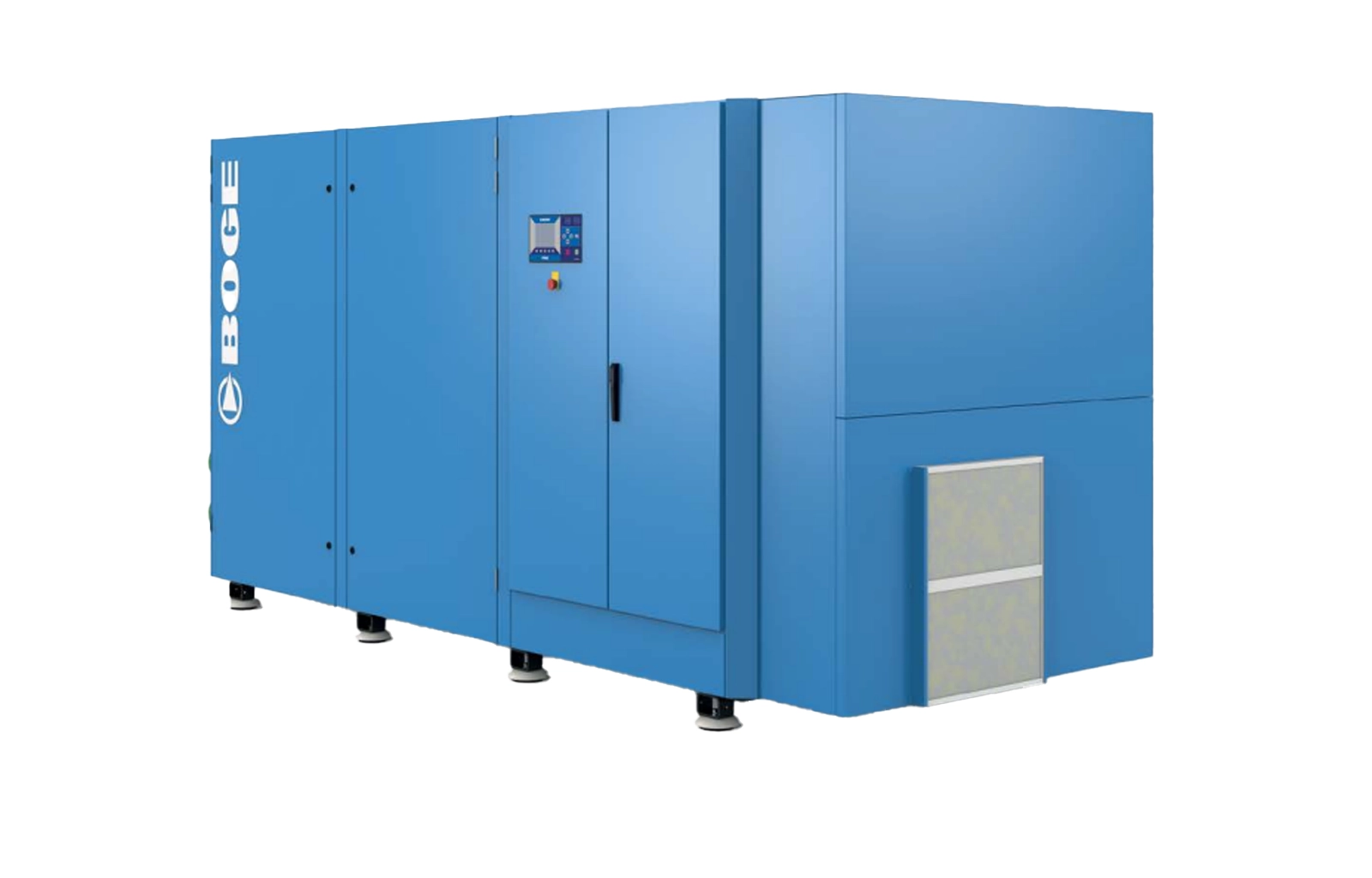

Bluekat Series – BOGE Screw Compressor
- Power Range: 30 – 45 kW
- Pressure Range: 7.5 – 13 bar
- Air Quality: ISO 8573-1 Class 0
| BOGE | Max Pressure | Effective Delivery Volume 50 Hz |
Motor Power | Dimensions W × H × D |
Weight | |||
|---|---|---|---|---|---|---|---|---|
| type | bar | psig | m3/min | cfm | kW | hp | mm | kg |
| SO 270-2 W | 8 | 115 | 34.900 | 1232.5 | 200 | 270 | 3650 x 1800 x 2150 | 5200 |
| SO 270-2 W | 10 | 145 | 28.400 | 1002.9 | 200 | 270 | 3650 x 1800 x 2150 | 5200 |
| SO 340-2 W | 8 | 115 | 41.330 | 1459.6 | 250 | 340 | 3650 x 1800 x 2150 | 5400 |
| SO 340-2 W | 10 | 145 | 34.590 | 1221.5 | 250 | 340 | 3650 x 1800 x 2150 | 5400 |
| SO 430-2 W | 8 | 115 | 46.100 | 1628 | 315 | 430 | 3650 x 1800 x 2150 | 5550 |
| SO 430-2 W | 10 | 145 | 46.000 | 1624.5 | 315 | 430 | 3650 x 1800 x 2150 | 5550 |
| SO 431-2 W | 8 | 115 | 50.300 | 1776.3 | 315 | 430 | 3650 x 1800 x 2150 | 5550 |
| SO 480-2 W | 10 | 145 | 50.200 | 1772.8 | 355 | 480 | 3650 x 1800 x 2150 | 5700 |
